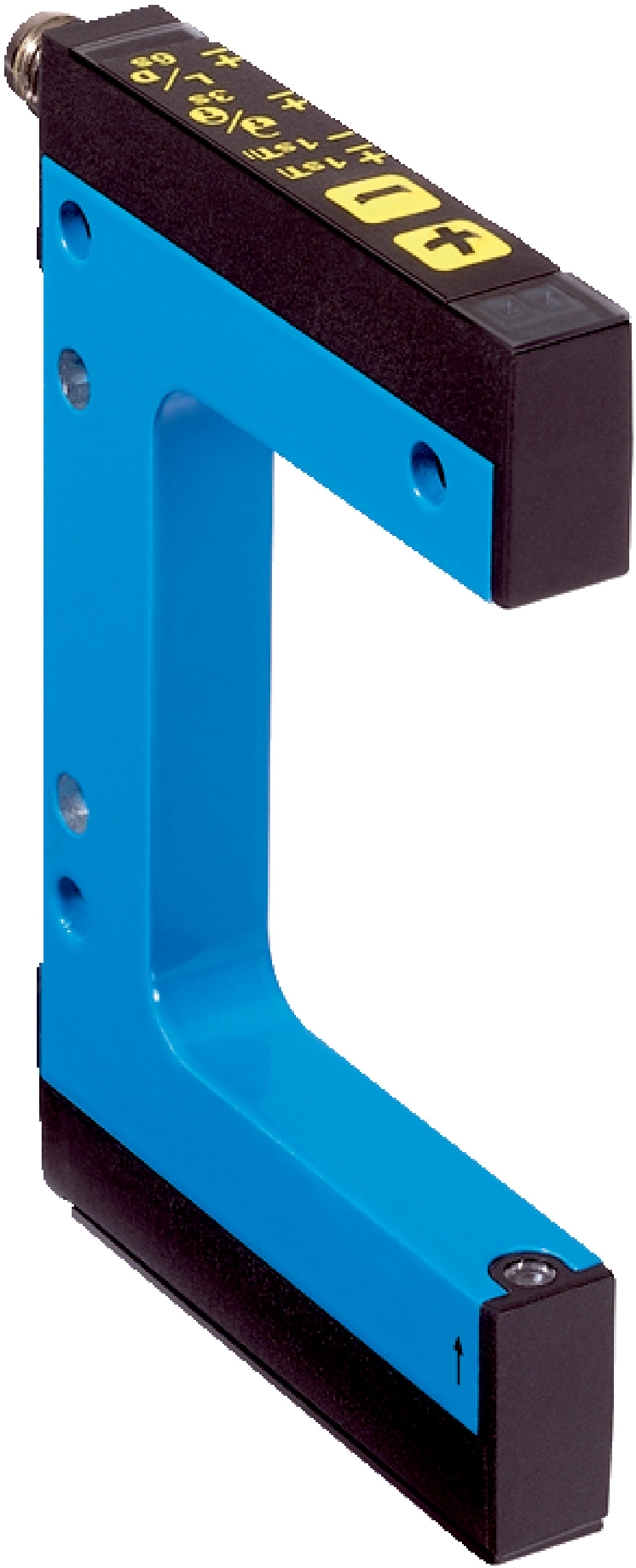

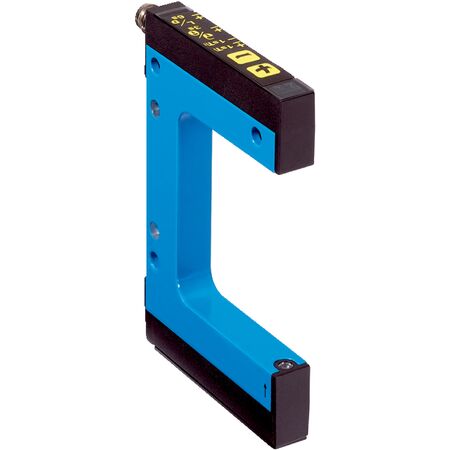

Optical Fork Sensor WFL50-40B416 | Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL50-40B416 features a laser red light source for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor ensures reliable performance in quality assurance systems and material handling applications. Its robust IP65 rated aluminum housing provides durability and protection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Connection type: Male connector M8, 4-pin
- Housing material: Aluminum
- Light source: Laser, red
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Safety parameters: MTTFD 80 years, DCavg 0%
- Dimensions (H x L x W): 88.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- Fork width of 50 mm and fork depth of 42 mm
- Minimum detectable object size of 0.05 mm
- 2-point teach-in mode with plus/minus button for sensitivity and light/dark switching
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- PNP/NPN switching output with short-circuit and reverse polarity protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL50-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
