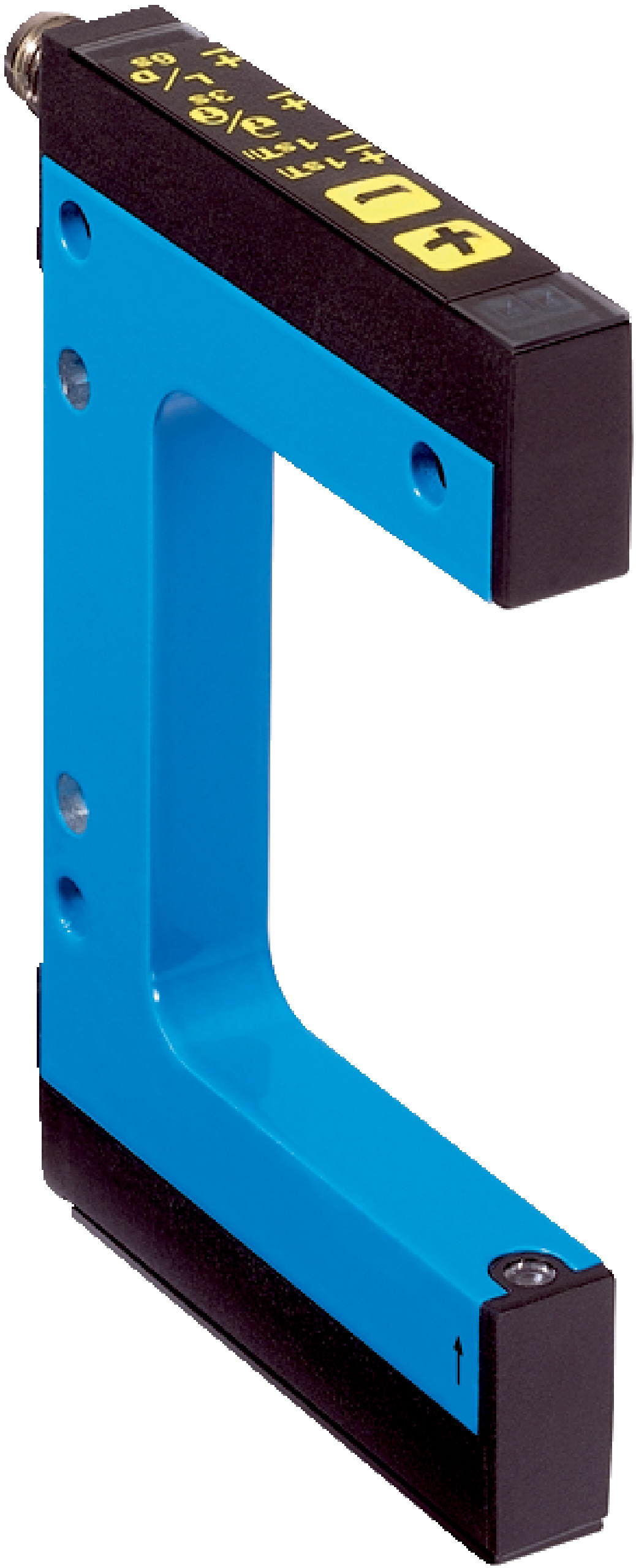

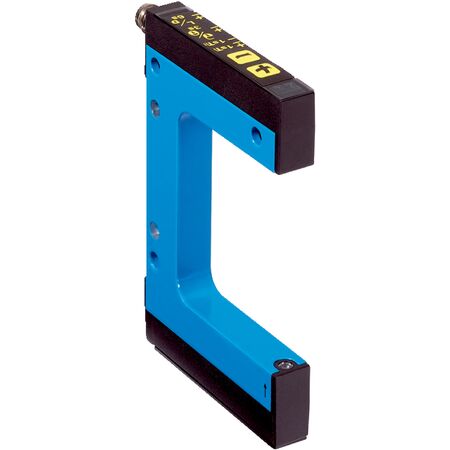

Optical Fork Sensor WFL50-60B416 | IP65 Rated | 10 kHz Switching Frequency | Adjustable Sensitivity | by SICK
The Optical Fork Sensor WFL50-60B416 is designed for precise object detection in industrial automation, featuring a high switching frequency of 10 kHz and an adjustable sensitivity for versatile applications. With an IP65 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for manufacturing process control and safety assurance in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Connection type: Male connector M8, 4-pin
- Dimensions (H x L x W): 88.5mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated enclosure for protection against dust and water
- Housing made of durable aluminum
- Male connector M8, 4-pin for reliable connection
- Safety-related parameters with MTTFD of 80 years and DCavg 0%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and quality assurance in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 40 mA current draw
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFL50-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
