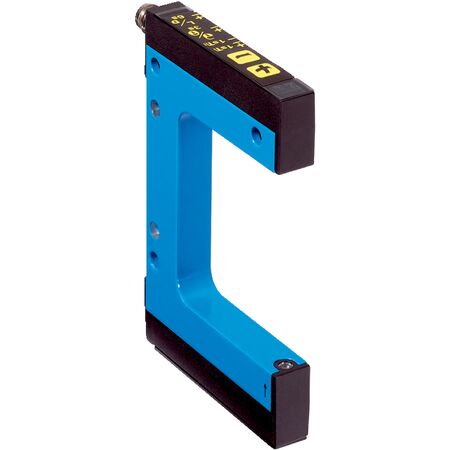

Optical Fork Sensor WFL50-95B416 | Red Laser Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFL50-95B416 utilizes red laser light for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and an IP65 rated aluminum housing, this sensor ensures reliable performance in challenging environments. Its adjustable sensitivity and easy configuration make it a versatile choice for quality assurance systems and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection with red laser light
- Fork width: 50 mm, Fork depth: 95 mm
- Minimum detectable object size: 0.05 mm
- Supply voltage: 10 V DC to 30 V DC with <10% ripple
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs with ±20 µs stability
- Switching output: PNP/NPN with max output current 100 mA
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +50 °C
- Storage temperature range: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load compliant with EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 88.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- Male M8 4-pin connector for reliable electrical connection
- Short-circuit and reverse polarity protected circuitry
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through extended product life
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WFL50-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
