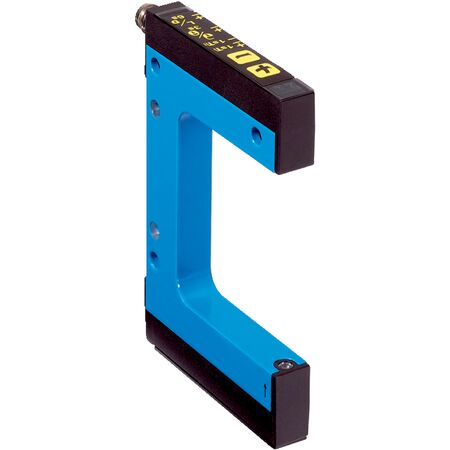

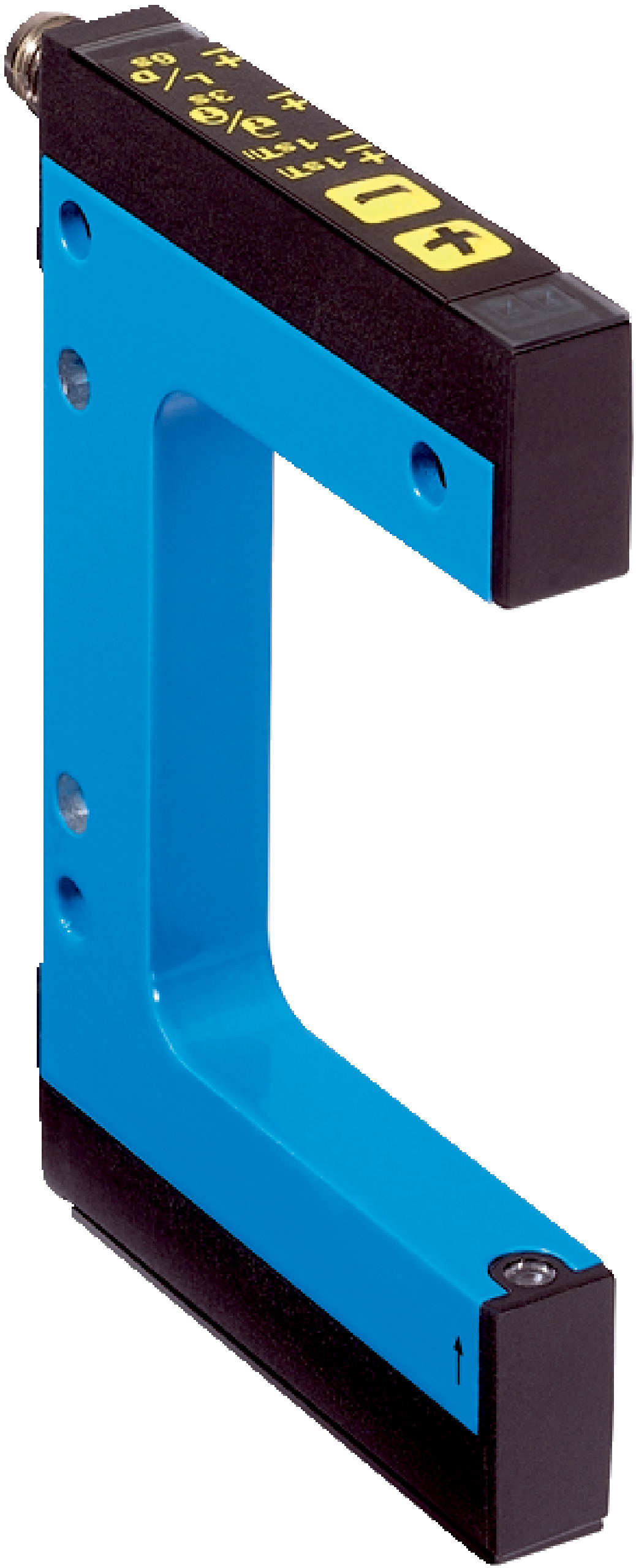

Optical Fork Sensor WFL80-40B416 | Red Laser Detection | IP65 Rated | by SICK
The Optical Fork Sensor WFL80-40B416 utilizes a red laser for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and a response time of ≤ 100 µs, this sensor ensures quick and reliable performance. Its IP65 rated enclosure protects against dust and water, making it suitable for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection with red laser
- Fork width: 80 mm
- Fork depth: 42 mm
- Minimum detectable object: 0.05 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with light/dark switching
- Output current max: 100 mA
- Initialization time: 100 ms
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 118.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected outputs
- Male connector M8, 4-pin connection type
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and optical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and quality assurance in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient laser light source
- Durable aluminum housing reduces material waste and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFL80-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
