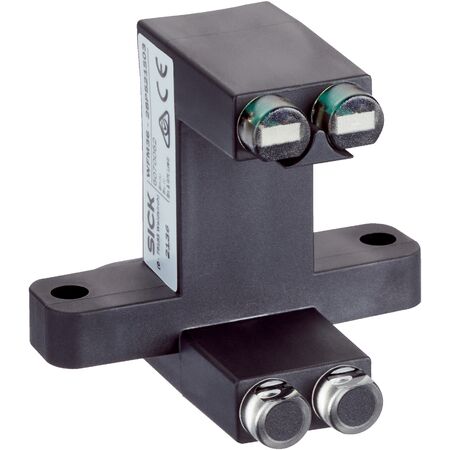

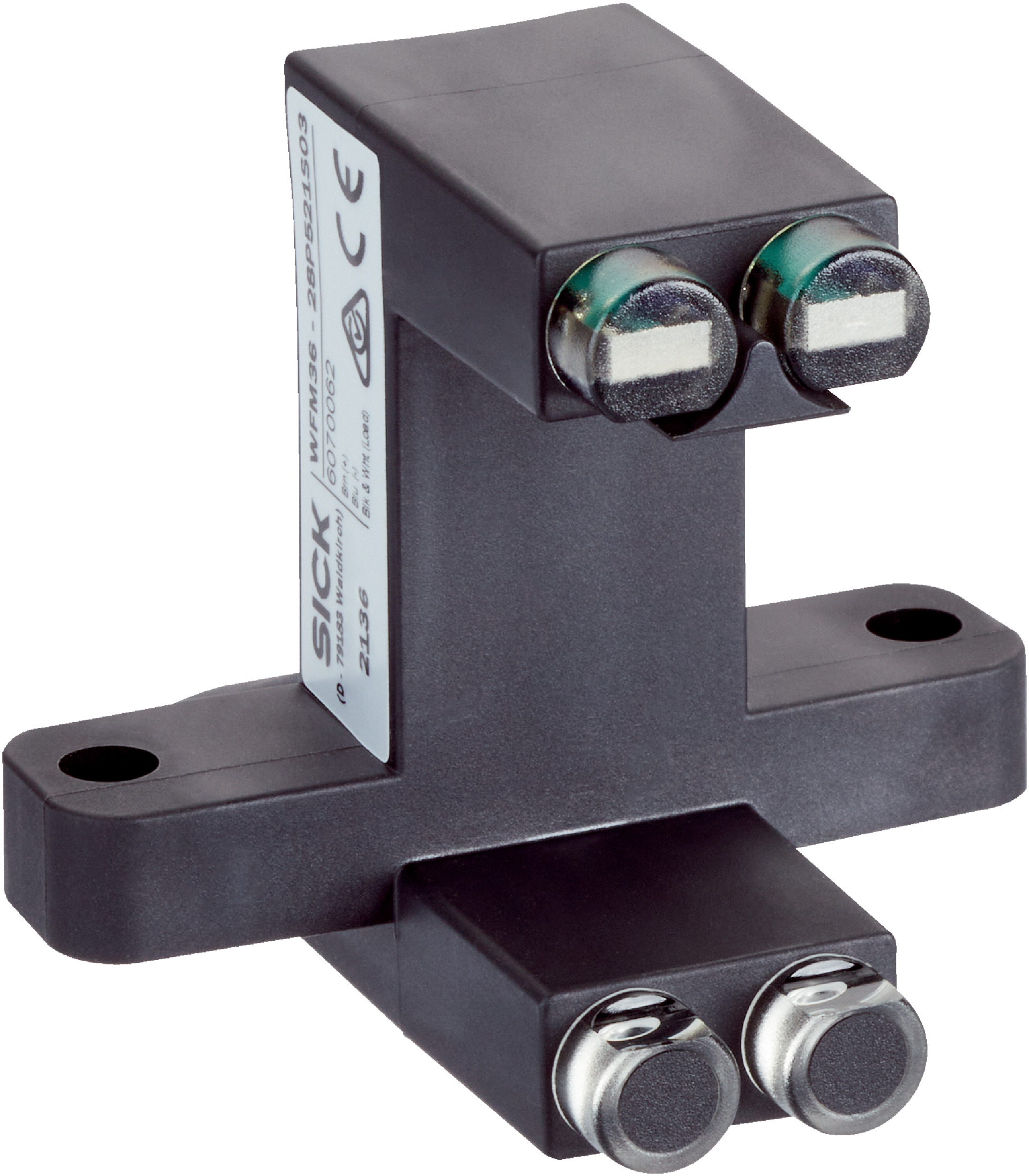

Optical Fork Sensor WFM36-28P521S03 | IP67 Rated | 4 kHz Switching Frequency | PNP Output | by SICK
The Optical Fork Sensor WFM36-28P521S03 is designed for precise object detection in industrial automation. With a high switching frequency of 4 kHz and a fast response time of ≤ 125 µs, it ensures reliable performance. Its IP67 rating provides excellent protection against dust and water, making it ideal for packaging machinery and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 20 mA
- Switching frequency: 4 kHz
- Response time: ≤ 125 µs
- Switching output: PNP, dark switching mode
- Output current max: 100 mA
- Initialization time: 140 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Plastic
- Connection type: Cable with MOLEX-connector, 4-pin, 10 cm
- Cable diameter: 4 mm
- Ambient operating temperature: -10 °C to +60 °C
- Storage temperature: -40 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 60.8mm x 45.5mm x 67.5mm
- Weight: 0.135 kg
Key Features
- Optical detection principle with LED red light source
- Fork width of 36 mm and fork depth of 28 mm
- Minimum detectable object size of 3.5 mm
- High switching frequency of 4 kHz and fast response time ≤ 125 µs
- Dark switching mode with PNP switching output
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected circuitry
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Packaging machinery
- Material handling systems
- Quality control and inspection processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage range of 10 V DC to 30 V DC
- Durable plastic housing reduces material waste and extends product life
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFM36-28P521S03 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
