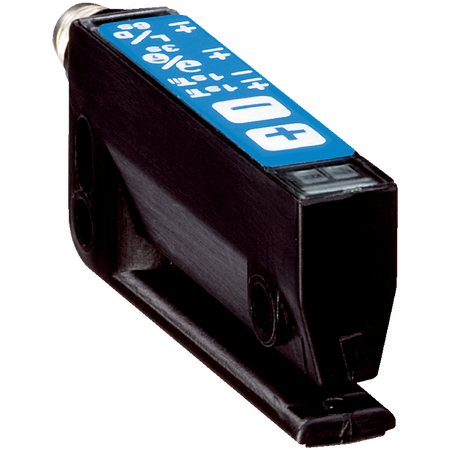

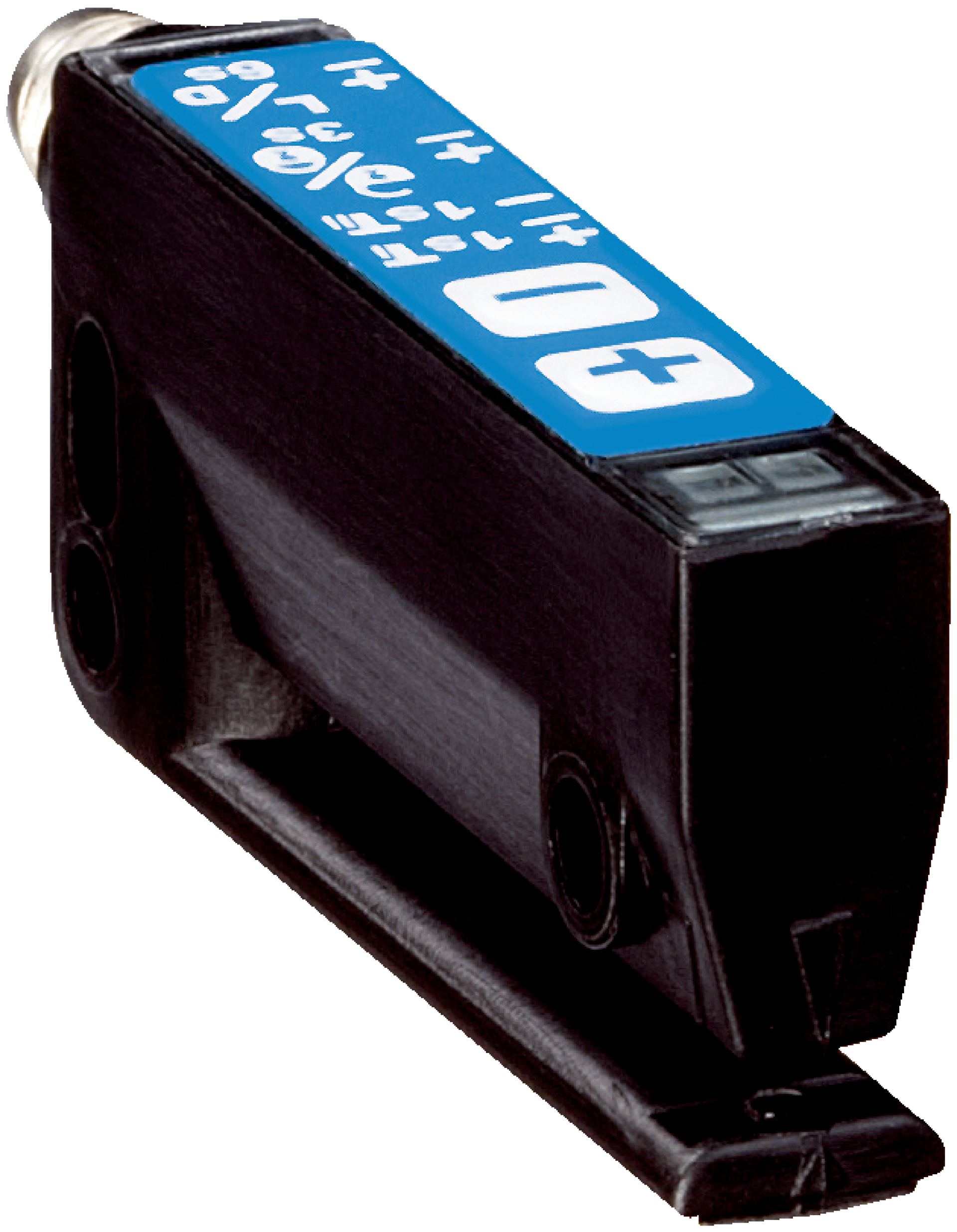

Optical Fork Sensor WFS3-40P415 | Infrared Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFS3-40P415 utilizes infrared LED technology for precise label detection, making it ideal for packaging and printing industries. With a high switching frequency of 10 kHz and a fast response time of ≤ 50 µs, this sensor ensures accurate object detection in automation processes. Its IP65 rated housing provides protection against dust and water, making it a reliable choice for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, Label Detection Sensor, SICK Fork Sensor WFS3-40P415
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 10 kHz
- Response time: ≤ 50 µs
- Switching output: PNP, max output current 100 mA
- Protection class: III
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Light source: LED, Infrared light
- Adjustment: Plus/minus button, cable teach-in for sensitivity and switching mode
- Safety parameters: MTTFD 97 years, DCavg 0%
- Dimensions (H x L x W): 25mm x 64.3mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Fork width of 3 mm and fork depth of 42 mm for precise detection
- Minimum detectable object size of 2 mm for label gap detection
- 2-point and dynamic teach-in modes for easy adjustment
- High switching frequency of 10 kHz and fast response time ≤ 50 µs
- IP65 rated housing for protection against dust and water
- Reverse polarity and short-circuit protected output
- Male M8, 4-pin connector for easy integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Quality control for gap and label size measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable glass-fiber reinforced PA housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFS3-40P415 Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
