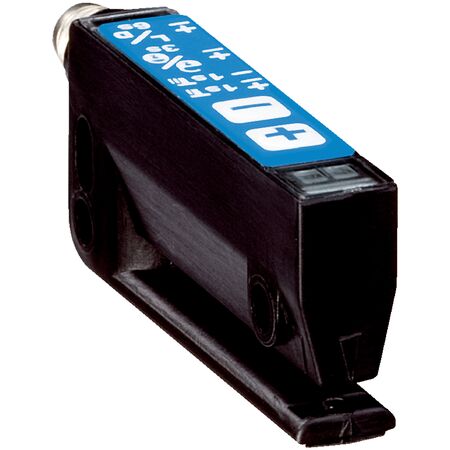

Optical Fork Sensor WFS3-40P415 | Infrared Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFS3-40P415 is designed for precise label detection in packaging and printing industries. With an infrared detection principle, high switching frequency of 10 kHz, and an IP65 rated enclosure, it ensures reliable performance in industrial automation. Ideal for applications requiring accurate object detection, this sensor features easy adjustment modes and robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 10 kHz
- Response time: ≤ 50 µs
- Switching output: PNP, max output current 100 mA
- Adjustment: Plus/minus button and cable teach-in for sensitivity and switching mode
- Enclosure rating: IP65
- Housing material: Glass-fiber reinforced PA
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 25mm x 64.3mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 3 mm and fork depth of 42 mm for precise label detection
- Minimum detectable object size of 2 mm gap between labels
- 2-point teach-in and dynamic teach-in modes for easy adjustment
- Light/dark switching mode with PNP switching output
- High switching frequency of 10 kHz and fast response time ≤ 50 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected circuitry
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Industrial automation requiring precise optical sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable glass-fiber reinforced PA housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFS3-40P415 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
