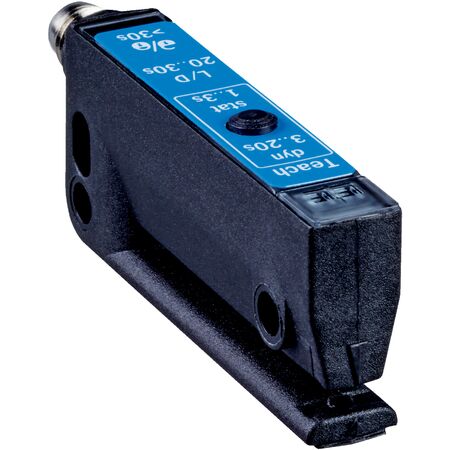

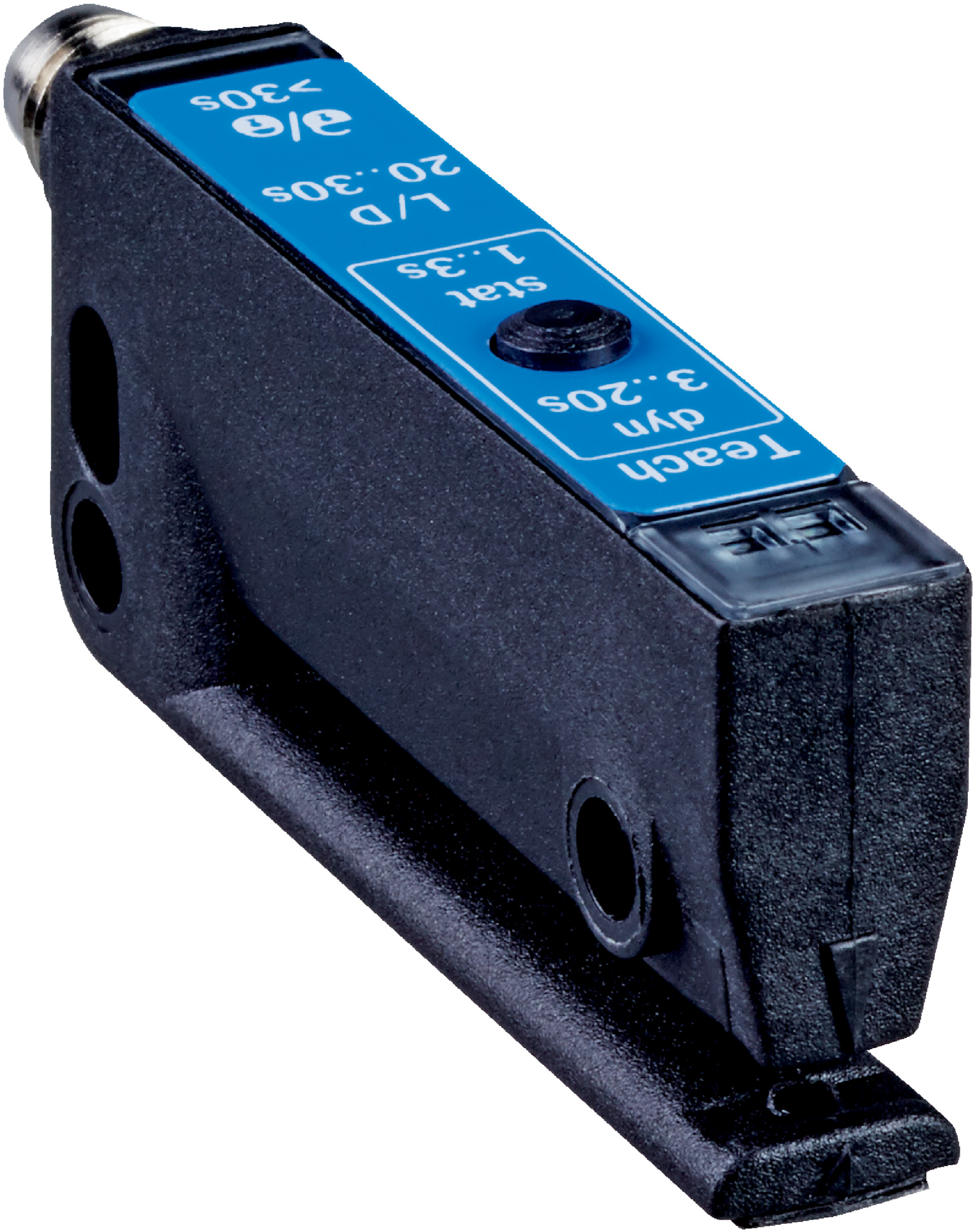

Optical Label Sensor WFS3-40P01CS01 | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Label Sensor WFS3-40P01CS01 utilizes infrared detection for precise label identification, making it ideal for industrial automation and packaging applications. With a high switching frequency of 15 kHz and an IP65-rated housing, this sensor ensures reliable performance in demanding environments. Its adjustable sensitivity and teach-in modes enhance versatility, making it a perfect choice for material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: PNP push-pull, max 100 mA
- Adjustment modes: 1-point, 2-point, dynamic teach-in
- Enclosure rating: IP65
- Operating temperature: -20 °C to +60 °C
- Ambient light immunity: ≤ 10,000 lx
- Connection: 4-wire cable, 0.5 m length
- Housing material: Glass-fiber reinforced PA
- Dimensions (H x L x W): 25mm x 64.3mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Adjustable via teach-in button and cable for sensitivity and switching modes
- High switching frequency of 15 kHz with response time ≤ 46 µs
- IO-Link V1.1 communication interface for smart sensor integration
- Robust PA glass-fiber reinforced housing with IP65 rating
- Short-circuit and reverse polarity protected circuitry
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for label detection
- Packaging machinery for gap and label size detection
- Material handling systems requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFS3-40P01CS01 Optical Label Sensor is available for immediate purchase, ideal for industrial automation and packaging applications.
