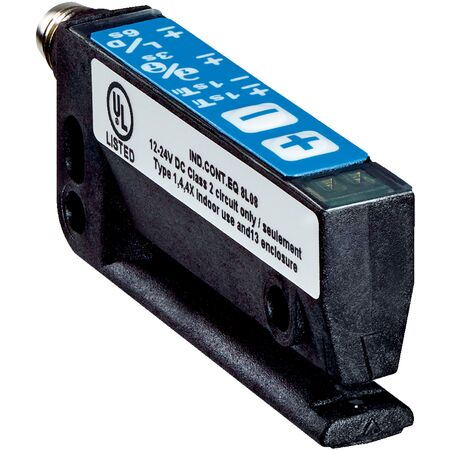

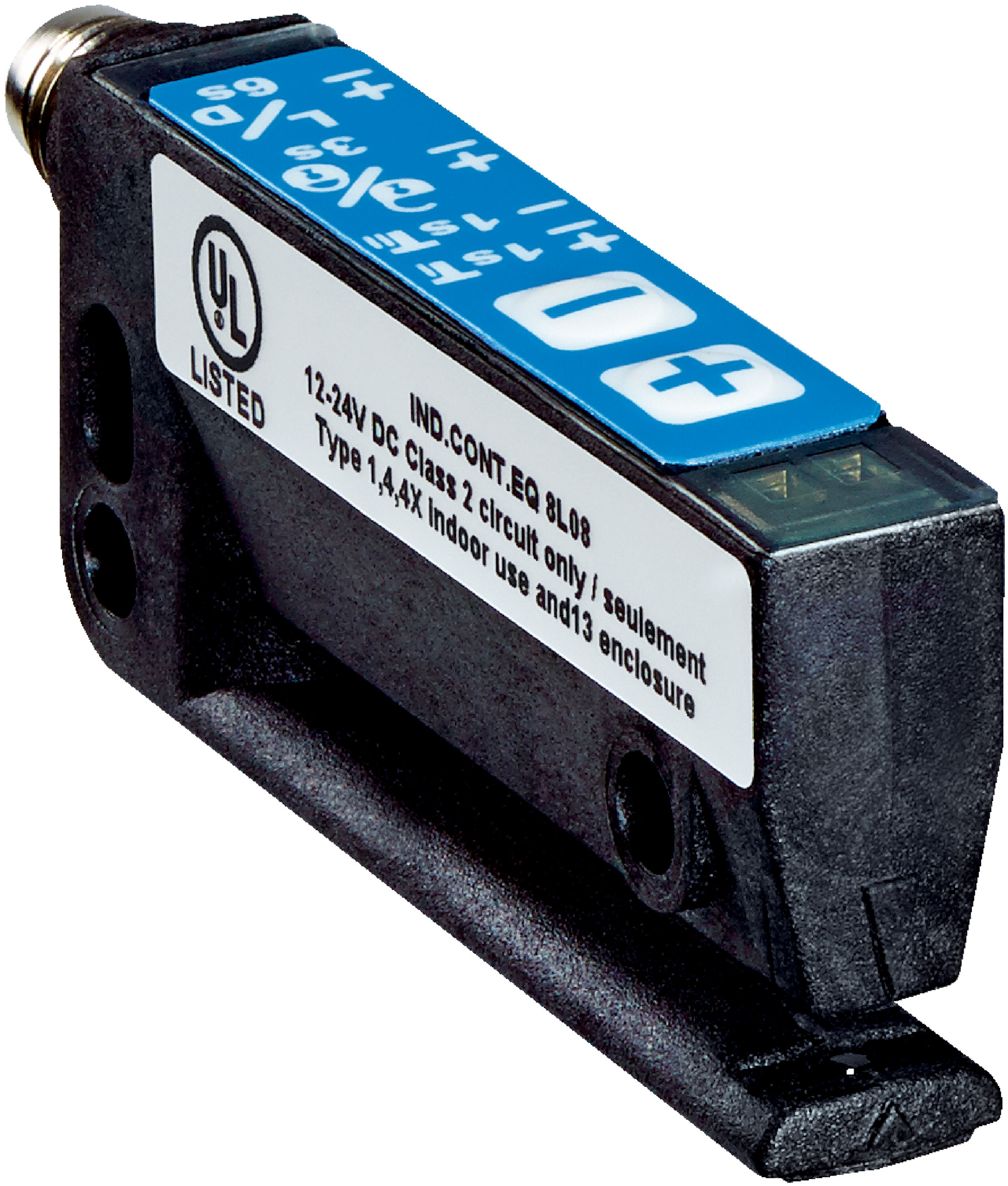

Optical Label Sensor WFS3-40P41C | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Label Sensor WFS3-40P41C utilizes infrared detection for precise label identification, making it ideal for packaging and printing industries. With a high switching frequency of 15 kHz and an IP65 rated housing, this sensor ensures reliable performance in industrial automation applications, providing durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: PNP, max output current 100 mA
- Enclosure rating: IP65
- Housing material: Glass-fiber reinforced PA
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Safety parameters: MTTFD 97 years, DCavg 0%
- Dimensions (H x L x W): 25mm x 64.3mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 3 mm and fork depth of 42 mm for precise label detection
- Minimum detectable object size of 2 mm gap between labels
- 2-point and dynamic teach-in modes for easy adjustment
- IO-Link V1.1 communication interface for smart sensor integration
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- IP65 rated housing for protection against dust and water
- Reverse polarity and short-circuit protected circuitry
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Label detection in packaging and printing industries
- Object detection in automated production lines
- Industrial automation requiring precise optical sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WFS3-40P41C Optical Label Sensor is available for immediate purchase, ideal for industrial automation and packaging applications.
