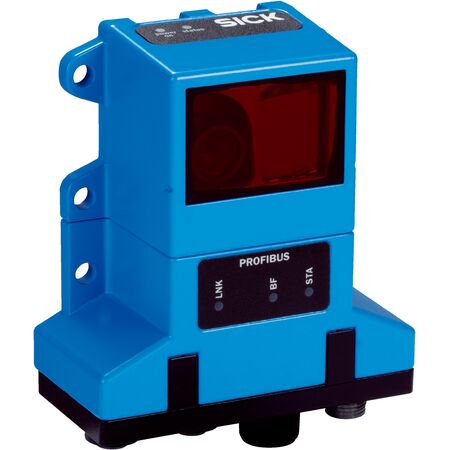

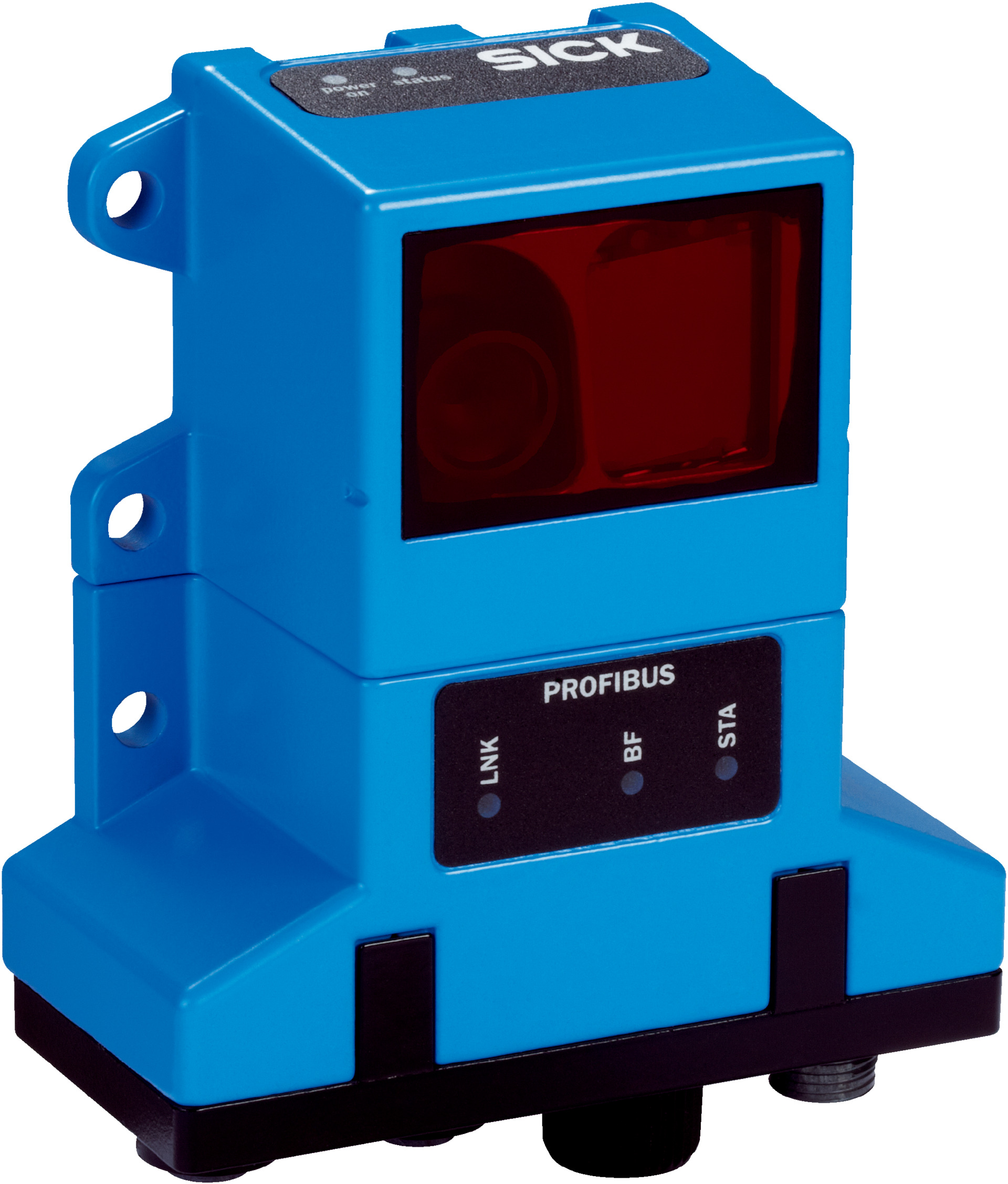

Optical Length Measurement Sensor OLM200-1002 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The Optical Length Measurement Sensor OLM200-1002 is designed for precise length measurement in industrial automation, featuring a measuring range of up to 10,000 m and high resolution options from 0.1 mm to 100 mm. With a fast response time of 10 ms and an IP65 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for material processing, conveyor monitoring, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Length Measurement Sensor OLM200-1002 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1051658
Alternatively Known As: Optical Length Measurement Sensor, Length Meter Sensor, Industrial Length Sensor, SICK OLM200
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm
- Repeatability: 0.15 mm
- Response time: 10 ms
- Output time: 2.5 ms
- Light source: Red LED
- Accuracy of speed output: ± 5 mm/s
- Max. movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 18 V to 30 V
- Power consumption: < 5.5 W
- Initialization time: 3 s
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 61000-6-2 / EN 61000-6-4
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2 kg
Key Features
- Measuring range up to 10,000 m
- High resolution options: 0.1 mm to 100 mm
- Repeatability of 0.15 mm
- Fast response time of 10 ms and output time of 2.5 ms
- Red LED light source for measurement
- Accuracy of speed output ± 5 mm/s
- Maximum movement speed of 7 m/s
- Reading distance of 100 mm with ± 20 mm tolerance
- Barcode width compatibility of 30 mm
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +60 °C
- Electromagnetic compatibility compliant with EN 61000-6-2 / EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for length measurement
- Material processing and quality control
- Conveyor belt monitoring and control
- Speed and position detection in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces material waste by providing precise length measurements
- Enhances process efficiency leading to lower energy consumption
- Durable IP65 rated design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OLM200-1002 Optical Length Measurement Sensor is available for immediate purchase, ideal for industrial automation and precise length measurement applications.
