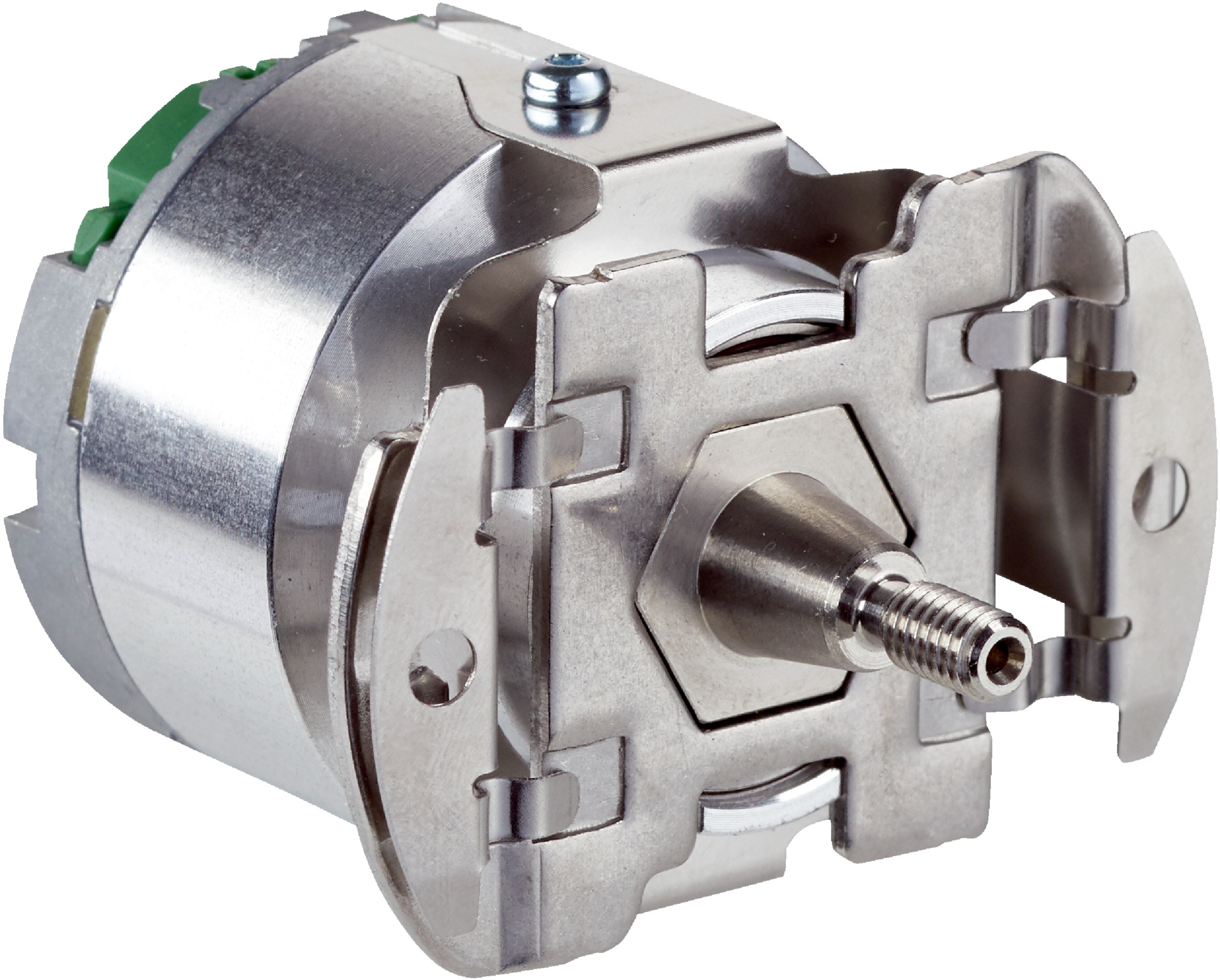

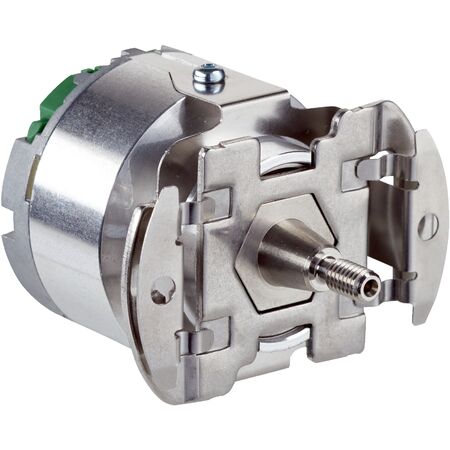

Optical Safety Encoder EKS36-2KF0B020A | SIL 2 & PL d Compliance | 20 Bit Resolution | by SICK
The Optical Safety Encoder EKS36-2KF0B020A is designed for industrial automation, offering SIL 2 and PL d compliance for safety-critical applications. With a 20-bit resolution and an optical measurement principle, it ensures precise position measurement even in high-speed machinery. Built to withstand harsh environments, this encoder features an IP40 enclosure rating and robust mechanical design, making it ideal for reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849)
- Test rate: 1 hour
- Maximum demand rate: 216 µs
- Performance level: PL d (EN ISO 13849)
- Position resolution per revolution: 20 bit
- System accuracy: ±100 arcseconds
- Signal noise (σ): ±4 arcseconds
- Number of absolute ascertainable revolutions: 1
- Available memory area: 8,192 Byte
- Measurement step per revolution: 1,048,576
- Measurement principle: Optical
- Type of code for absolute value: Binary
- Communication interface: HIPERFACE DSL®
- Initialization time: Max. 500 ms
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V to 12 V
- Recommended supply voltage: 8 V
- Current consumption: ≤150 mA
- Output frequency for digital position value: 0 kHz to 75 kHz
- Shaft version: Tapered shaft
- Operating speed: ≤12,000 min⁻¹
- Operating temperature range: –20 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- Enclosure rating: IP40
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Performance Level d (EN ISO 13849)
- Optical measurement principle with 20 bit resolution per revolution
- System accuracy of ±100 arcseconds and low signal noise ±4 arcseconds
- Communication via HIPERFACE DSL® interface
- Operating temperature range from –20 °C to +115 °C
- Robust mechanical design with tapered shaft and stator coupling
- High resistance to shocks (100 g) and vibrations (50 g)
- Enclosure rating IP40 with mating plugs inserted and cover closed
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- High-speed machinery with operating speeds up to 12,000 min⁻¹
- Environments requiring robust optical encoders with IP40 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from replacements
- Energy-efficient operation with low current consumption (≤150 mA)
- Long service life reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EKS36-2KF0B020A Optical Safety Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
