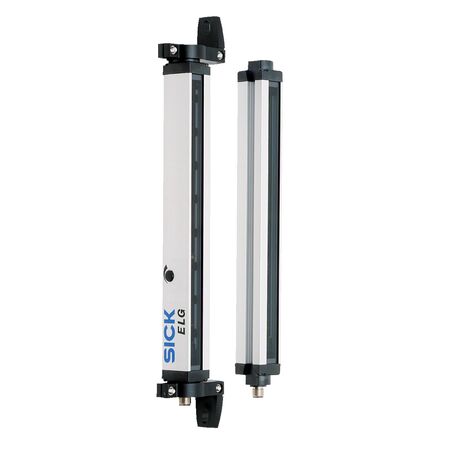

Optical Safety Sensor ELG3-0210N513 | 8 Beams & IP65 Rated | Robust Aluminum Housing | by SICK
The Optical Safety Sensor ELG3-0210N513 features a sender/receiver principle with 8 beams, ensuring reliable detection for industrial automation safety monitoring. With a minimum detectable object size of 20 mm and a robust aluminum housing rated IP65, this sensor is perfect for machine guarding and perimeter protection, providing peace of mind in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0210N513 | 8 Beams & IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1052378
Alternatively Known As: Optical Safety Sensor, Light Curtain Sensor, Safety Light Barrier, Industrial Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Beam separation: 30 mm
- Number of beams: 8
- Detection height: 210 mm
- Evaluation beams: Cross beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x NPN
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 500 mm
- Operating range: 2 m
- Response time: 84 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 286mm x 29mm x 34mm
- Weight: 1 kg
Key Features
- Sender/receiver sensor principle with 8 beams
- Minimum detectable object size of 20 mm
- Beam separation of 30 mm and detection height of 210 mm
- Cross beam evaluation for reliable detection
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Object detection in manufacturing lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-0210N513 Optical Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
