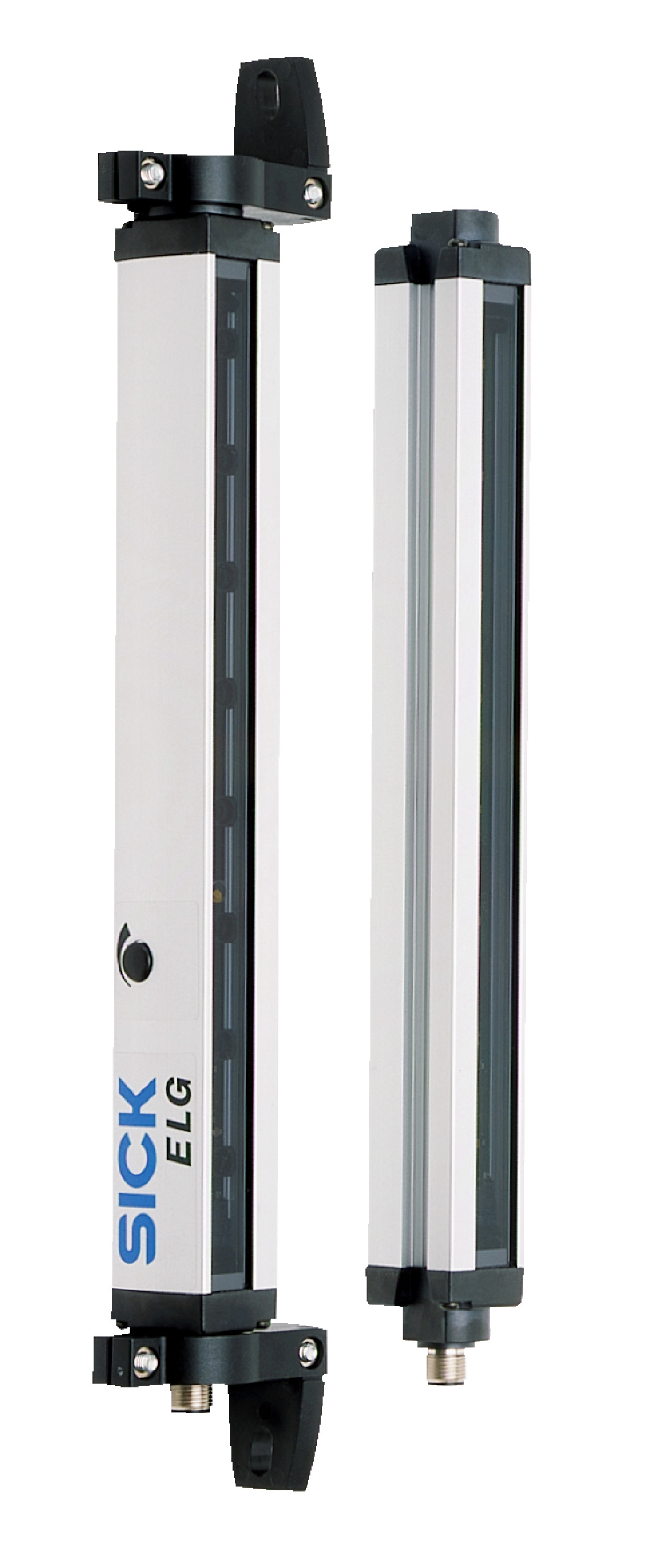

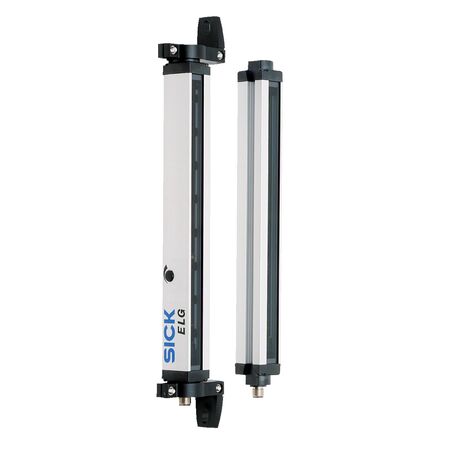

Optical Safety Sensor ELG3-0210P511 | 8 Parallel Beams | IP65 Rated | 2m Operating Range | by SICK
The Optical Safety Sensor ELG3-0210P511 features an advanced sender/receiver principle with 8 parallel beams, ensuring reliable object detection in industrial automation. With a minimum detectable object size of 35 mm and a detection height of 210 mm, this sensor is perfect for safety and monitoring in manufacturing lines. Its robust aluminum housing and IP65 rating provide durability and protection against environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0210P511 | 8 Parallel Beams | IP65 Rated | 2m Operating Range | by SICK
Brand: SICK
SKU: 1025510
Alternatively Known As: Optical Safety Sensor, Multi-beam Sensor, Industrial Object Detector
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 8
- Detection height: 210 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 28 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 286mm x 29mm x 34mm
- Weight: 1 kg
Key Features
- Sender/receiver sensor principle with 8 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 210 mm with 30 mm beam separation
- Operating range up to 2 meters, maximum range 3 meters
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ELG3-0210P511 Optical Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
