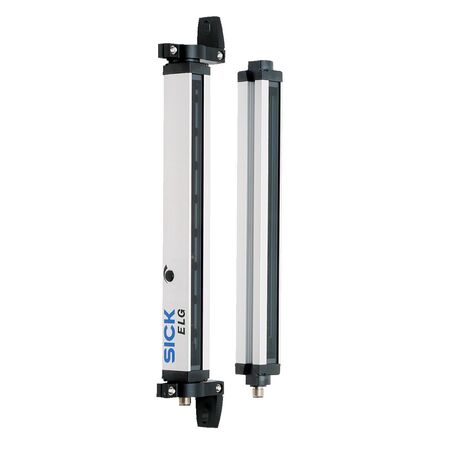

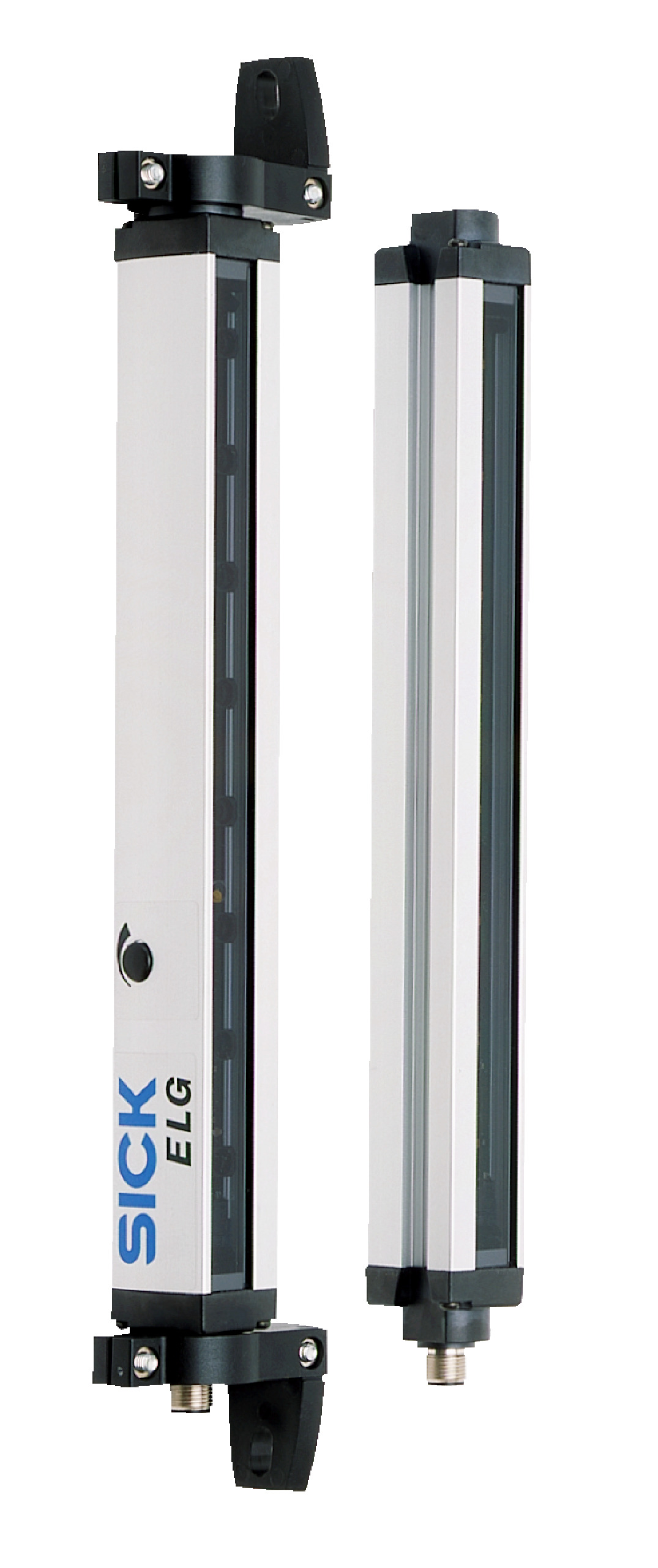

Optical Safety Sensor ELG3-0330N511 | 12 Parallel Beams | IP65 Rated | by SICK
The Optical Safety Sensor ELG3-0330N511 features a sender/receiver principle with 12 parallel beams, ensuring reliable detection for industrial automation safety. With a minimum detectable object size of 35 mm and a detection height of 330 mm, this sensor is perfect for machine guarding and perimeter protection. Its robust aluminum housing and IP65 enclosure rating provide durability in harsh environments, making it an ideal choice for safety monitoring in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0330N511 | 12 Parallel Beams | IP65 Rated | by SICK
Brand: SICK
SKU: 1042302
Alternatively Known As: Optical Safety Sensor, Light Curtain Sensor, Safety Light Barrier, Industrial Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 12
- Detection height: 330 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x NPN
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 28 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 406mm x 29mm x 34mm
- Weight: 1.3 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 330 mm with 30 mm beam separation
- Operating range up to 2 meters with maximum range of 3 meters
- Robust aluminum housing with IP65 enclosure rating
- Optical synchronization and LED indication
- Short-circuit and reverse polarity protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Conveyor and production line safety
- Access control in hazardous areas
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0330N511 Optical Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
