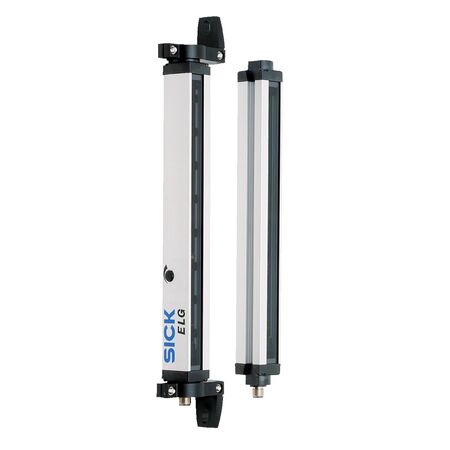

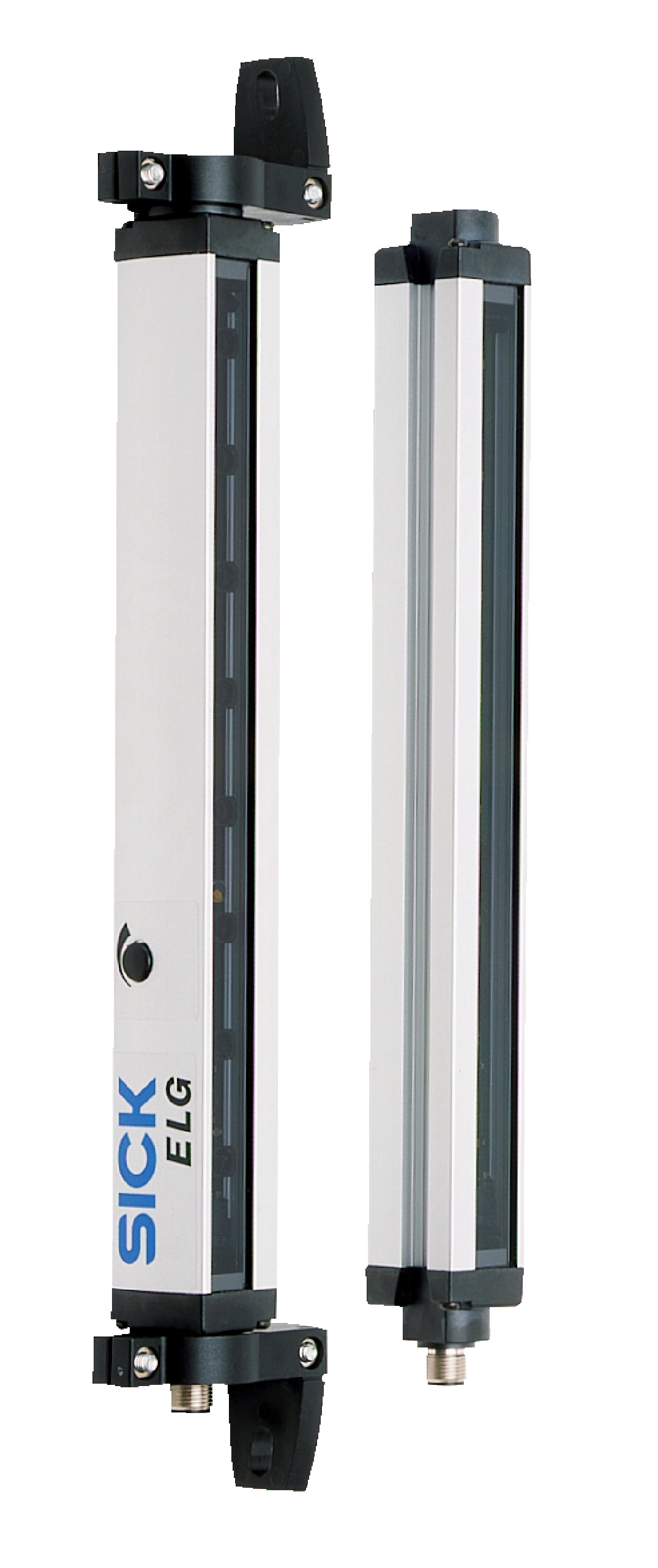

Optical Safety Sensor ELG3-0330P513 | 12 Beams & IP65 Rated | 330mm Detection Height | by SICK
The Optical Safety Sensor ELG3-0330P513 features a sender/receiver principle with 12 beams, ensuring reliable detection of objects as small as 20 mm. With a detection height of 330 mm and robust IP65-rated aluminum housing, it's perfect for industrial automation safety monitoring and machine guarding. Designed for optimal performance in temperatures ranging from -25°C to +55°C, this sensor is essential for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0330P513 | 12 Beams & IP65 Rated | 330mm Detection Height | by SICK
Brand: SICK
SKU: 1025576
Alternatively Known As: Optical Safety Sensor, Light Curtain Sensor, Safety Light Barrier, Industrial Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Number of beams: 12
- Detection height: 330 mm
- Beam separation: 30 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Output current max: ≤ 100 mA
- Output mode: 2 x PNP, Q dark switching
- Initialization time: 1 second
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP65
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 500 mm
- Operating range: 2 m
- Response time: 84 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 406mm x 29mm x 34mm
- Weight: 1.3 kg
Key Features
- Sender/receiver sensor principle with 12 beams
- Minimum detectable object size of 20 mm
- Detection height of 330 mm with 30 mm beam separation
- Cross beam evaluation for enhanced safety
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Detection of objects in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-0330P513 Optical Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
