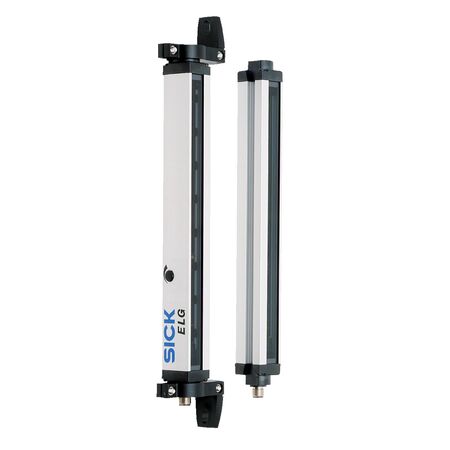

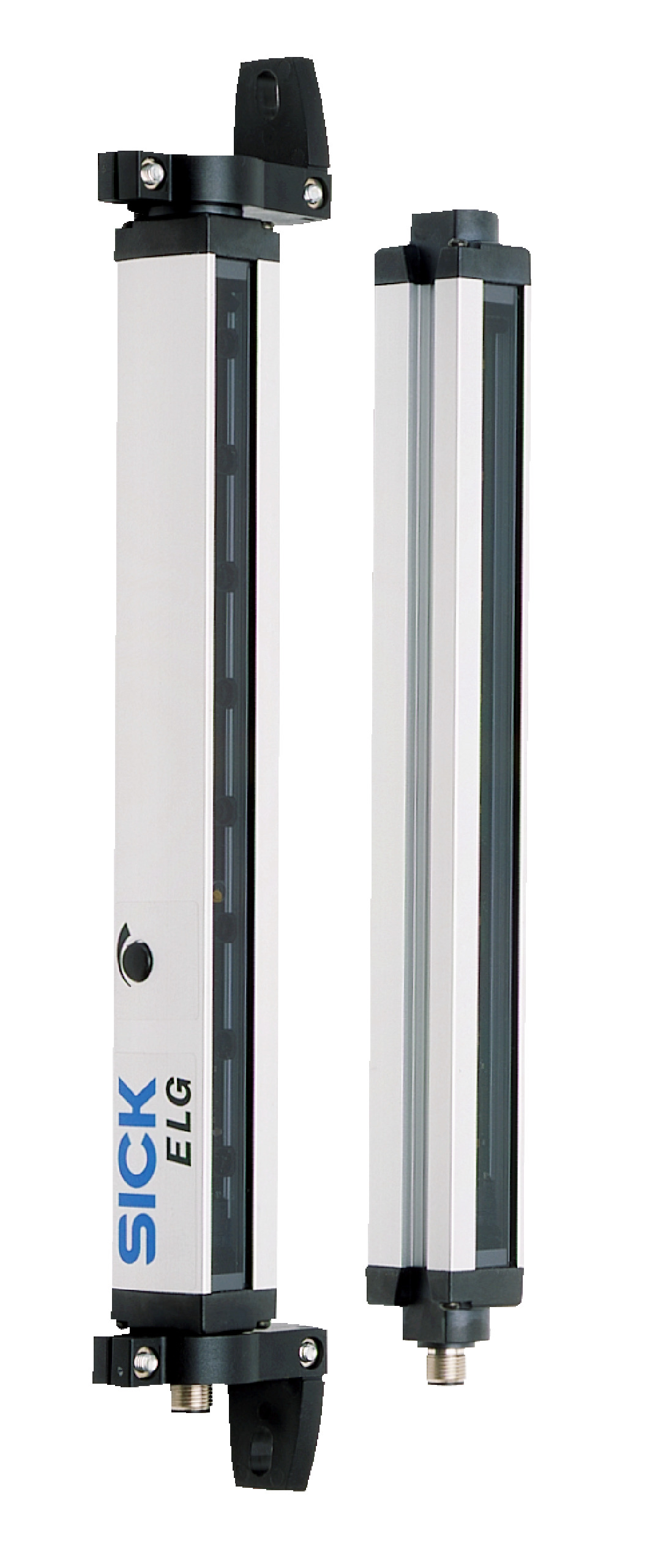

Optical Safety Sensor ELG3-0450P511 | 16 Beams & IP65 Rated | 450mm Detection Height | by SICK
The Optical Safety Sensor ELG3-0450P511 features a sender/receiver principle with 16 parallel beams, ensuring reliable detection of objects as small as 35 mm. With a detection height of 450 mm and an operating range of up to 2 meters, this sensor is perfect for industrial automation safety monitoring and machine guarding. Its robust aluminum housing and IP65 rating provide durability in harsh environments, making it an ideal choice for access control in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0450P511 | 16 Beams & IP65 Rated | 450mm Detection Height | by SICK
Brand: SICK
SKU: 1025490
Alternatively Known As: Optical Safety Sensor, Light Curtain Sensor, Safety Light Barrier, Industrial Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 16
- Detection height: 450 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender and receiver: < 100 mA each
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 second
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 28 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 526mm x 29mm x 34mm
- Weight: 1.5 kg
Key Features
- Sender/receiver sensor principle with 16 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 450 mm with 30 mm beam separation
- Operating range up to 2 meters, maximum range 3 meters
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Conveyor and production line safety
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0450P511 Optical Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
