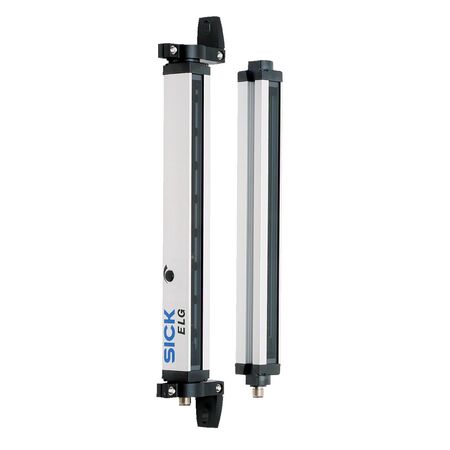

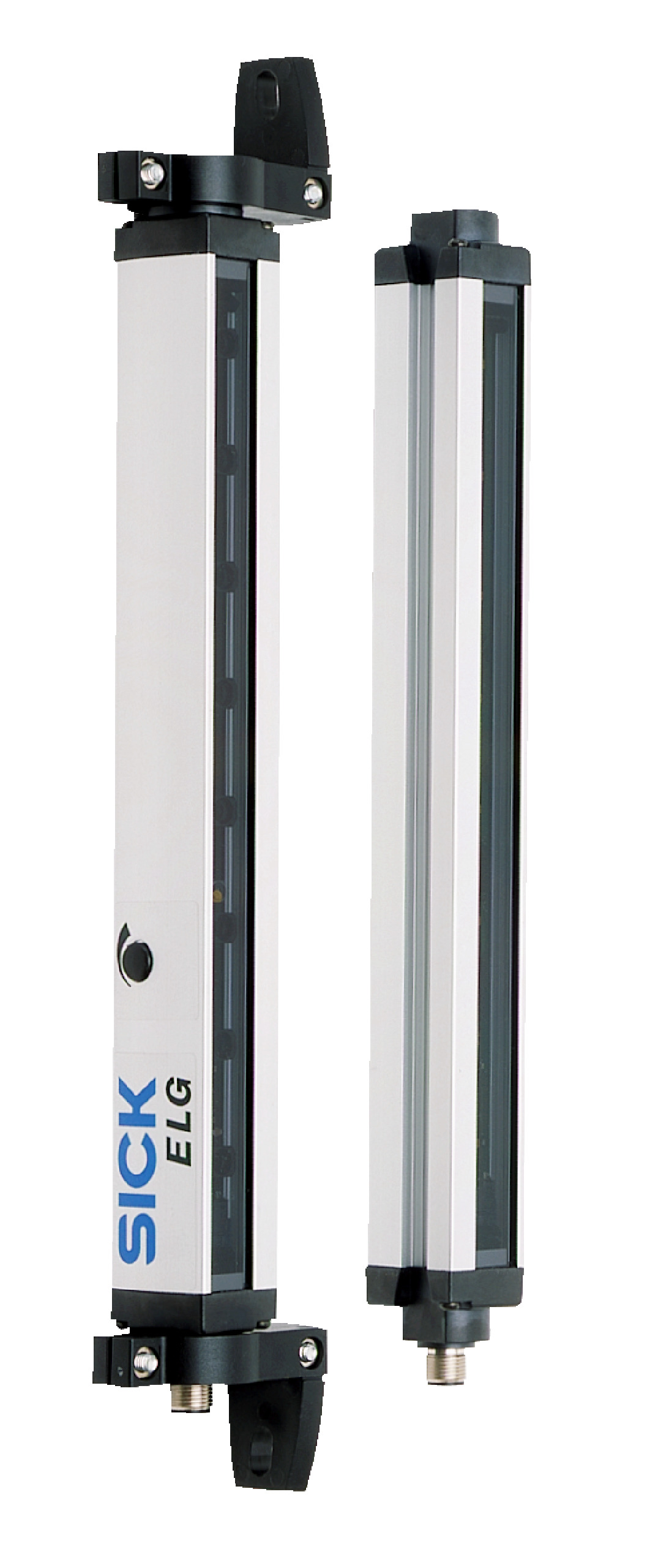

Optical Safety Sensor ELG3-0570P511 | 20 Evaluation Beams | IP65 Rated | by SICK
The Optical Safety Sensor ELG3-0570P511 features a sender/receiver principle with 20 parallel evaluation beams and a minimum detectable object size of 35 mm. Designed for industrial automation safety monitoring, this sensor ensures reliable machine guarding and perimeter protection, operating efficiently in temperatures from -25°C to +55°C. With an IP65 rated enclosure, it provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Safety Sensor ELG3-0570P511 | 20 Evaluation Beams | IP65 Rated | by SICK
Brand: SICK
SKU: 1025501
Alternatively Known As: Optical Safety Sensor, Light Curtain Sensor, Safety Light Barrier, Machine Guard Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 20
- Detection height: 570 mm
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 646mm x 29mm x 34mm
- Weight: 1.8 kg
Key Features
- Sender/receiver sensor principle
- 20 parallel evaluation beams with 30 mm beam separation
- Minimum detectable object size of 35 mm
- Detection height of 570 mm
- Optical synchronization
- LED indication
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Object detection in manufacturing lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (<100 mA per sender and receiver)
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0570P511 Optical Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
