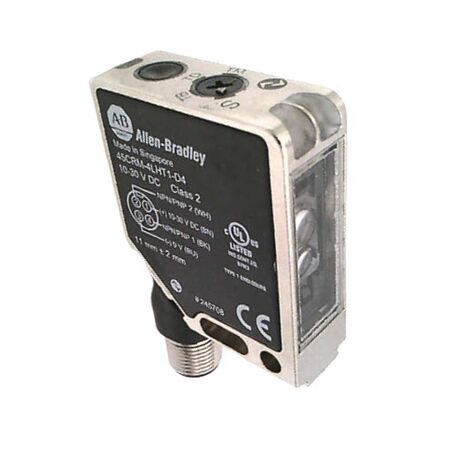

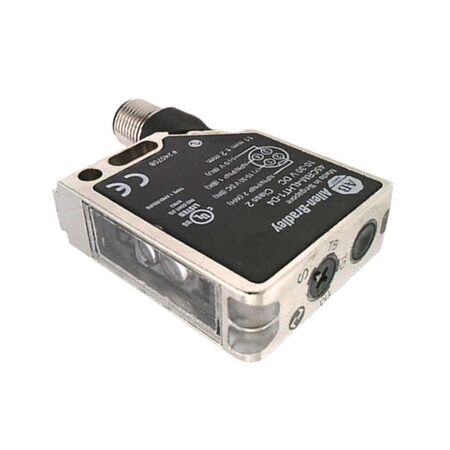

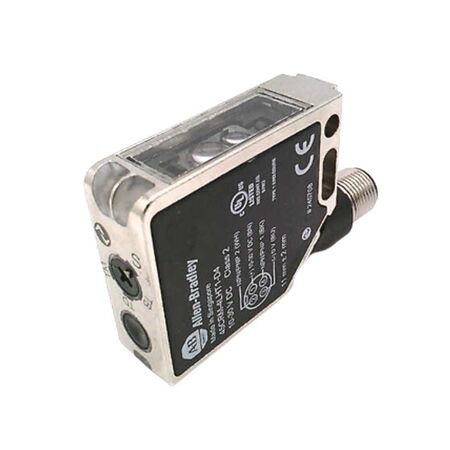

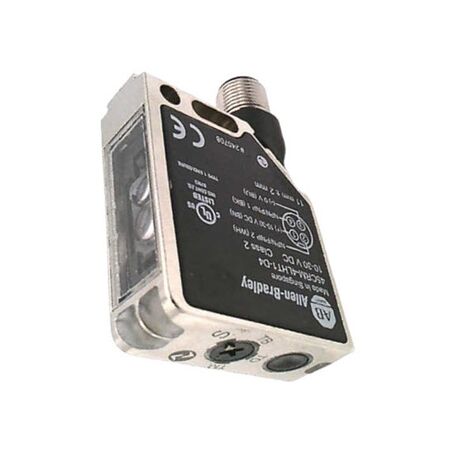

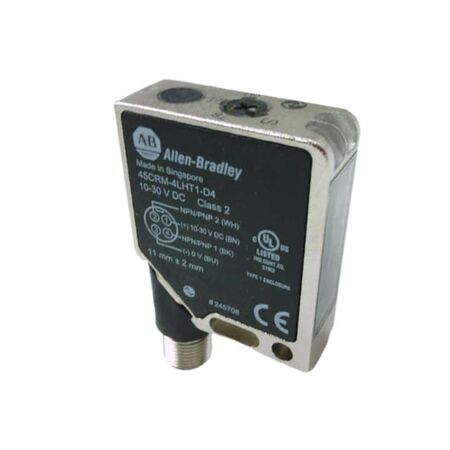

Optical Sensor Color Registration Mark | RGB Detection | NPN/PNP Output | Diffuse Sensing Mode | by Allen-Bradley
The Optical Sensor Color Registration Mark by Allen-Bradley is designed for precise color detection in industrial automation. With RGB detection and NPN/PNP output compatibility, it operates within a voltage range of 10-30 VDC. Ideal for manufacturing lines and packaging industries, this sensor enhances efficiency by minimizing material errors and supports both local and remote teach functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Type: Optical sensor
- Detection Mode: Diffuse
- Output Type: NPN/PNP
- Voltage: 10-30 VDC, Class 2
- Color Detection: RGB
- Operating Modes: Light operate and dark operate
- Output Interface: Dual IO-Link push-pull
- Teach Modes: Local and remote
- Sensing Range: 9-13 mm
- Lens Type: Standard vertical lens
- Connector: 4-pin M12 quick disconnect
- Dimensions (H x L x W): 50mm x 20mm x 20mm
- Weight: 0.2 kg
Key Features
- Optical sensor with color registration mark detection
- Diffuse sensing mode
- NPN/PNP output compatibility
- Operating voltage: 10-30 VDC, Class 2
- RGB color detection
- Light operate and dark operate modes
- Dual IO-Link push-pull output
- Local and remote teach functionality
- Sensing range of 9-13 mm
- Standard vertical lens
- 4-pin M12 quick disconnect
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper sensor alignment and configuration.
Applications
- Industrial automation for color registration mark detection
- Manufacturing lines requiring precise color sensing
- Packaging and printing industries
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances manufacturing efficiency reducing waste
- Supports precise color detection minimizing material errors
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 45CRM4LHT1D4 Optical Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
