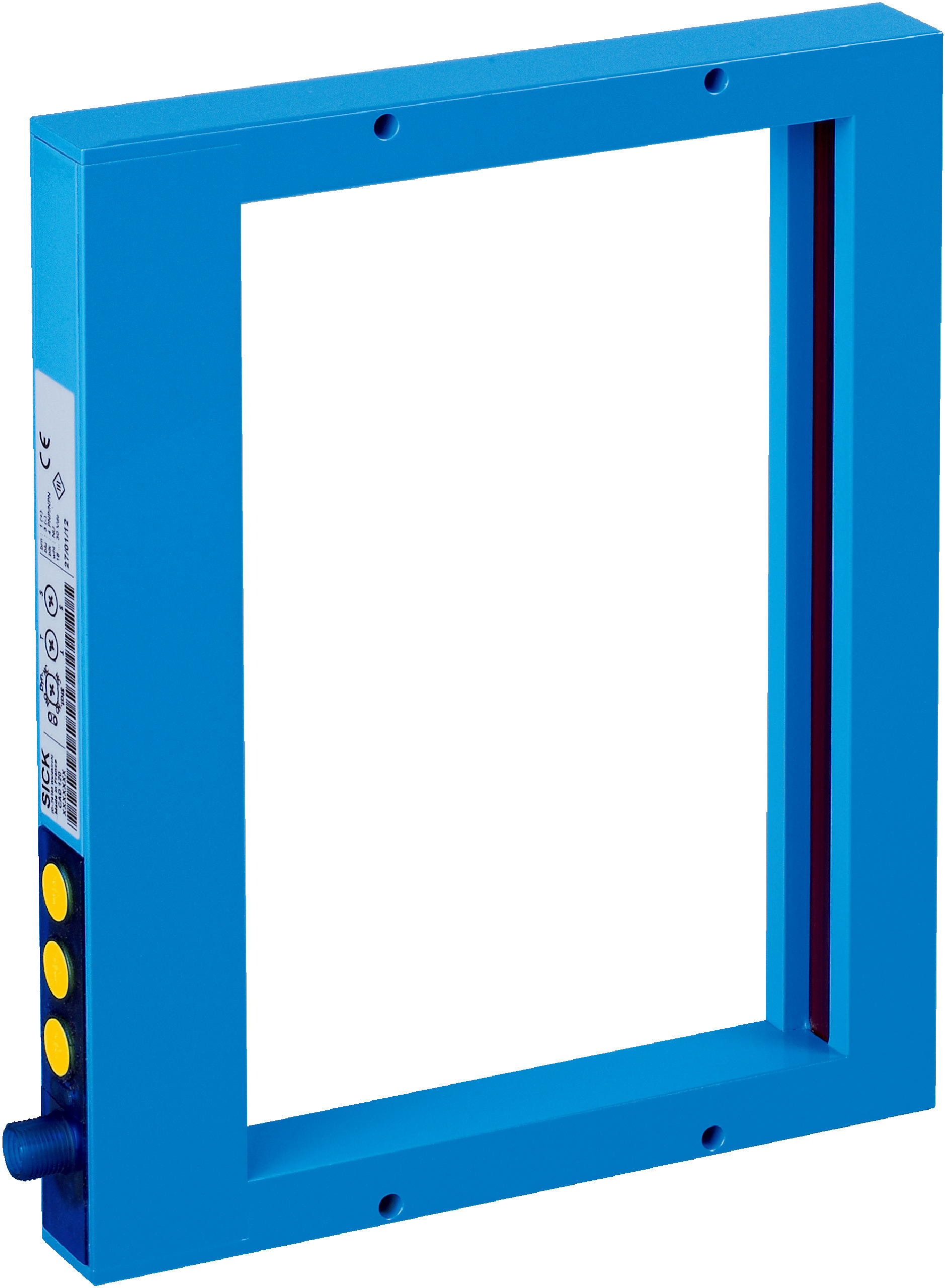

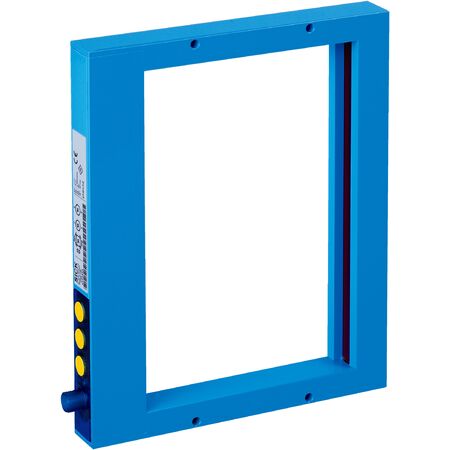

Optical Sensor FLG4-20012011 | 2 mm Dynamic Detection | IP65 Rated | by SICK
The Optical Sensor FLG4-20012011 is designed for precise object detection in industrial automation, featuring a minimum detectable object size of 2 mm dynamic and a robust IP65-rated aluminum housing. With a high switching frequency of 5,000 Hz and adjustable light/dark switching output, it's perfect for manufacturing process control and packaging systems, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object (MDO): 2 mm dynamic, 6 mm static
- Beam separation: 4 mm
- Detection height: 120 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wave length: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Indication: LED
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area: 120 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: Sunlight 10,000 lx
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 182mm
- Weight: 1.12 kg
Key Features
- Close device version with sender/receiver sensor principle
- Minimum detectable object size: 2 mm dynamic, 6 mm static
- Detection height of 120 mm with 4 mm beam separation
- Light/dark switching output adjustable via rotary switch
- High switching frequency of 5,000 Hz
- Robust aluminum painted housing with IP65 enclosure rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FLG4-20012011 Optical Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
