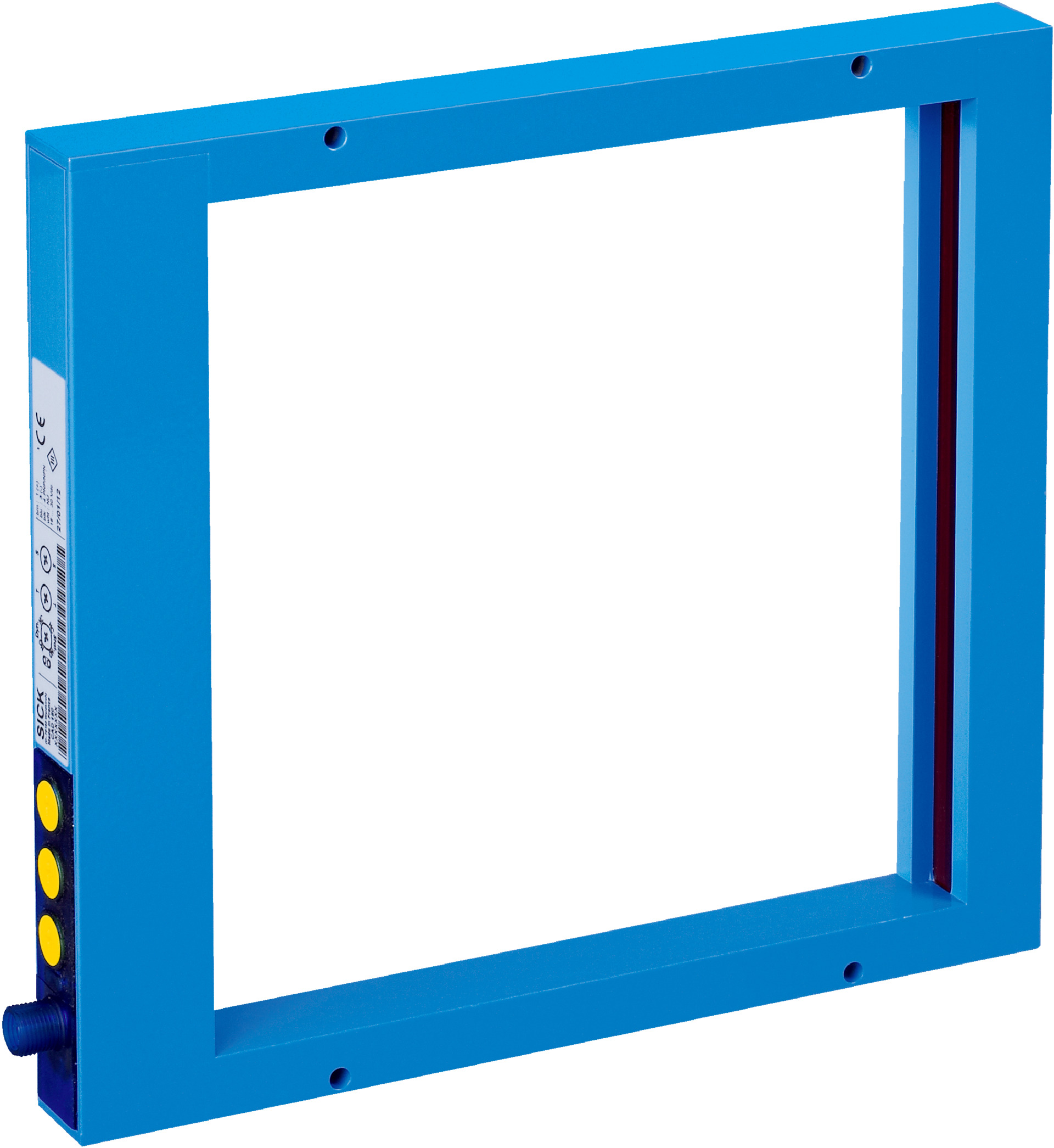

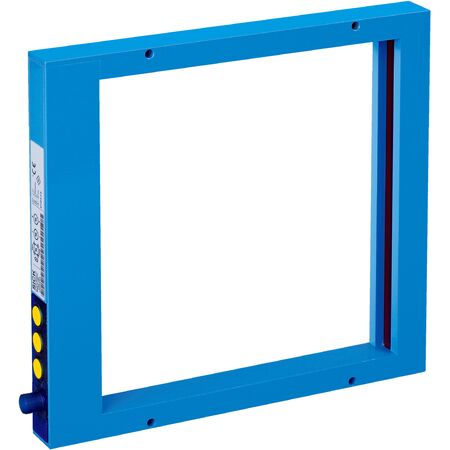

Optical Sensor FLG4-20018011 | 2 mm Dynamic Detection | IP65 Rated | 5000 Hz Switching Frequency | by SICK
The Optical Sensor FLG4-20018011 is designed for precise object detection in industrial automation, featuring a minimum detectable object size of 2 mm dynamic and a robust IP65-rated aluminum housing. With an adjustable light/dark switching output and a high switching frequency of 5,000 Hz, this sensor is perfect for manufacturing process monitoring and quality control systems, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object (MDO): 2 mm dynamic, 6 mm static
- Beam separation: 4 mm
- Detection height: 180 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wavelength: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area: 180 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: Sunlight 10,000 lx
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 242mm
- Weight: 1 kg
Key Features
- Close device version with sender/receiver sensor principle
- Minimum detectable object size: 2 mm dynamic, 6 mm static
- Adjustable light/dark switching output via rotary switch
- High switching frequency of 5,000 Hz
- Robust aluminum painted housing with IP65 rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process monitoring
- Quality control systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FLG4-20018011 Optical Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
