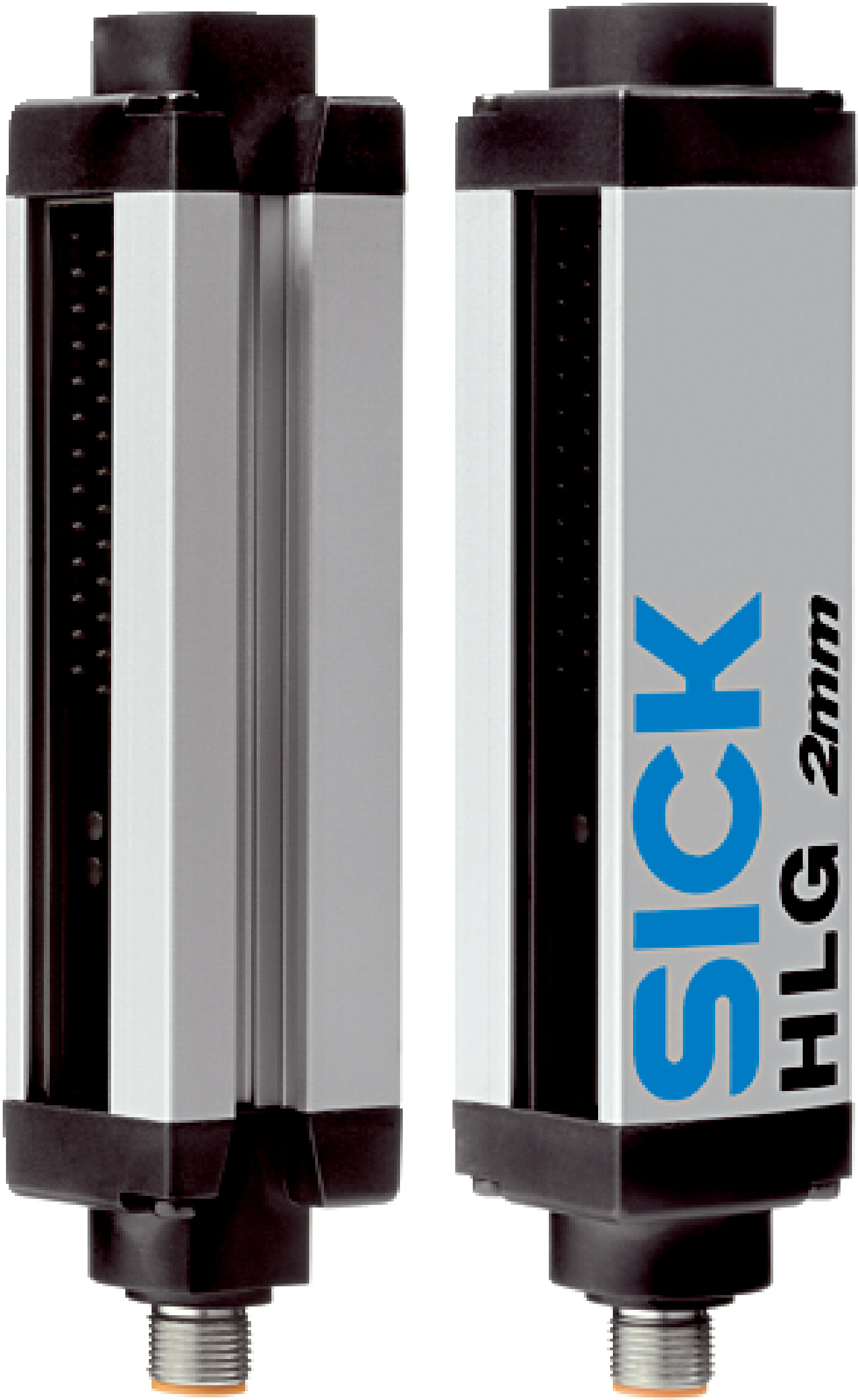

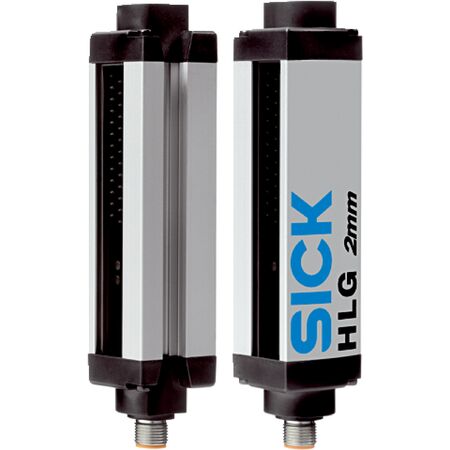

Optical Sensor HLG2-050E811 | 26 Parallel Beams | IP54 Rated | Fast Response Time | by SICK
The Optical Sensor HLG2-050E811 features a sender/receiver principle with 26 parallel beams, each separated by 2 mm, making it ideal for precise object detection in industrial automation. With a robust aluminum housing and an IP54 rating, this sensor ensures durability and reliability in manufacturing environments. Its fast response time of just 3 ms enhances safety and monitoring in production lines, making it a perfect choice for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Sensor HLG2-050E811 | 26 Parallel Beams | IP54 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1041849
Alternatively Known As: Optical Sensor, Multi-beam Sensor, Parallel Beam Sensor, Industrial Object Detector
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: Parallel beam, 2 mm
- Number of beams: 26
- Detection height: 50 mm
- Wavelength: 950 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: 56.3 mA
- Power consumption receiver: 125.2 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.8 s
- Switching output: 2 x NPN
- Output mode: Q dark switching
- Teach-in input: PNP
- Connection type: Male connector M12, 8-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Cable
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 0 mm
- Operating range: 1.5 m
- Response time: 3 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 123mm x 29mm x 34mm
- Weight: 0.135 kg
Key Features
- Sender/receiver sensor principle
- 26 parallel beams with 2 mm beam separation
- Detection height of 50 mm
- Operating range up to 1.5 m with maximum range of 2 m
- Fast response time of 3 ms
- Robust aluminum housing with IP54 rating
- LED indication for operational status
- Cable synchronization
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient DC voltage operation
- Durable aluminum housing extends product life reducing waste
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HLG2-050E811 Optical Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
