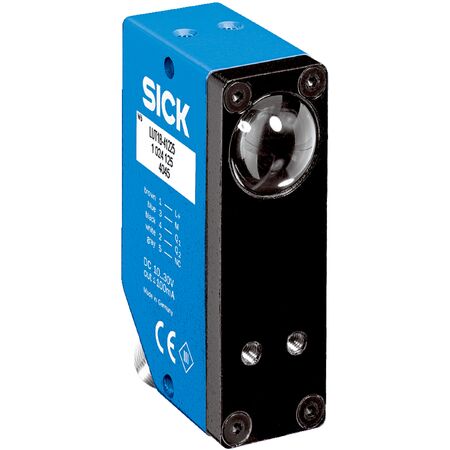

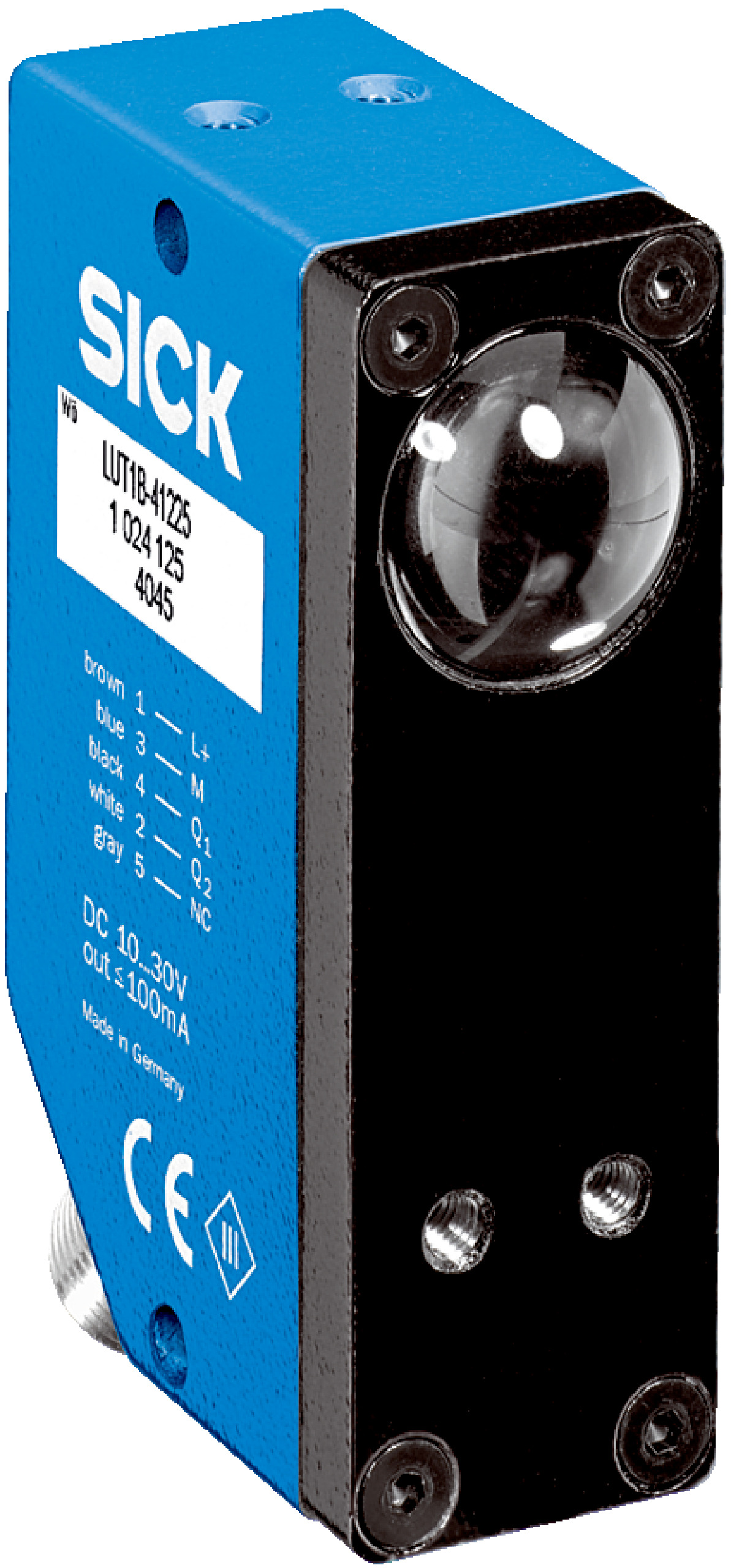

Optical Sensor LUT1B-12205 | Blue LED Light Source | IP67 Rated | PNP Output | by SICK
The Optical Sensor LUT1B-12205 features a blue LED light source with a 470 nm wavelength, designed for precise object detection in industrial automation. With a high switching frequency of 600 Hz and a response time of 850 µs, it ensures reliable performance in manufacturing and packaging applications. Its IP67 rating provides protection against dust and water, making it a durable choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Sensor LUT1B-12205 | Blue LED Light Source | IP67 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1027497
Alternatively Known As: Optical Sensor, Photoelectric Sensor, Blue LED Sensor, PNP Output Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 40 mA
- Switching frequency: 600 Hz
- Response time: 850 µs
- Output current max: 200 mA
- Connection type: Male connector M12, 5-pin
- Light source: Blue LED, 470 nm wavelength
- Light spot size: 10 mm x 70 mm
- Working range: 60 mm to 100 mm
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Dimensions (H x L x W): 70mm x 47.5mm x 23mm
- Weight: 0.24 kg
Key Features
- Sensing distance between 70 mm and 80 mm
- Blue LED light source with 470 nm wavelength
- Light emission from the long side with a 10 mm x 70 mm light spot size
- Double teach-in button for easy adjustment
- PNP switching output with light switching mode
- High switching frequency of 600 Hz and response time of 850 µs
- Protection class III with IP67 enclosure rating
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable zinc diecast housing reduces replacement frequency
- IP67 rating ensures protection against dust and water, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT1B-12205 Optical Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
