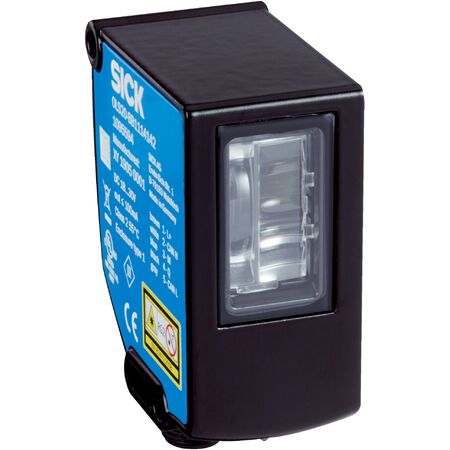

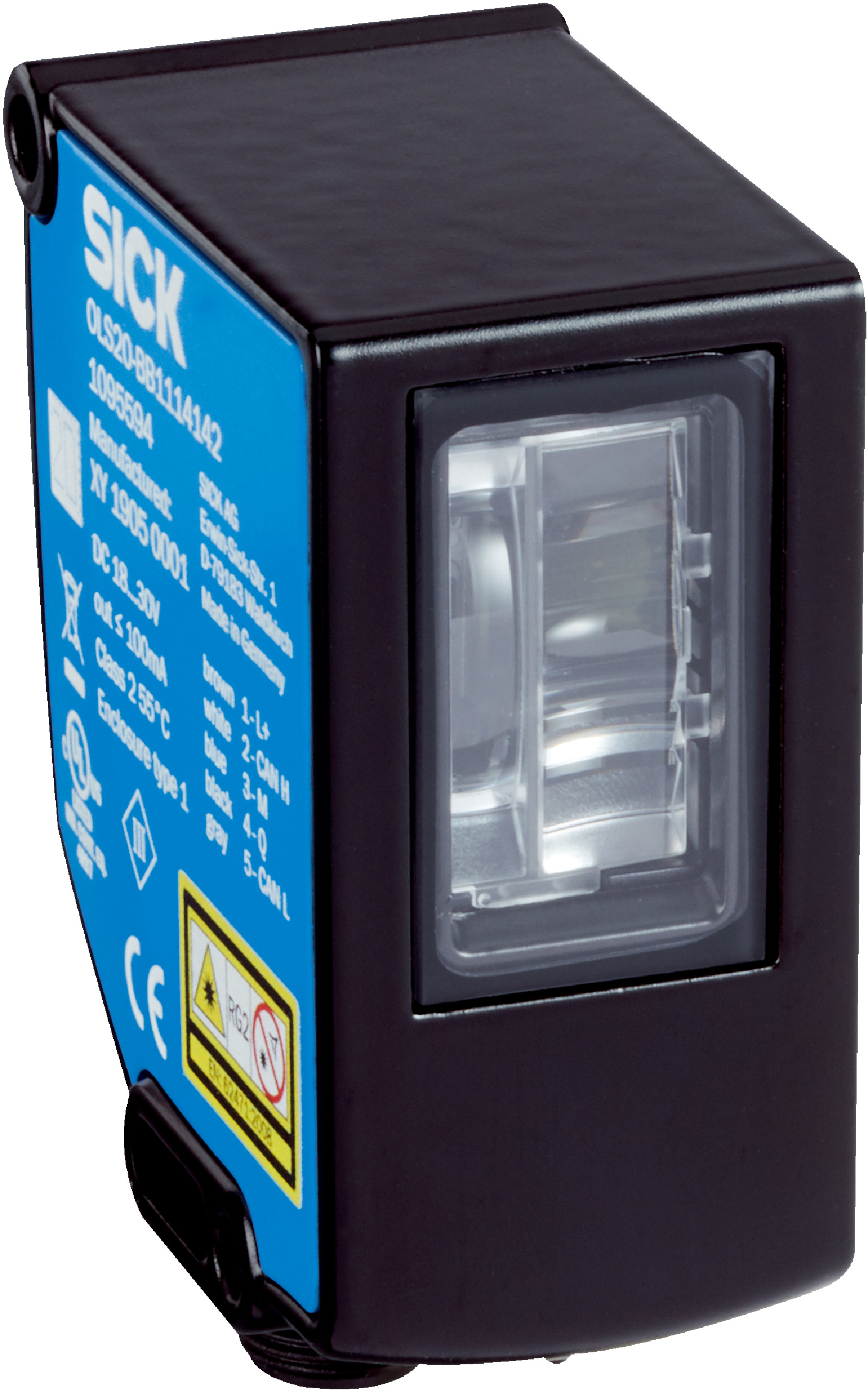

Optical Sensor OLS20 | IP67 Rated | Blue LED Light Source | 100 mm Sensing Distance | by SICK
The Optical Sensor OLS20 is designed for industrial automation, featuring a sensing distance of up to 100 mm and a blue LED light source at 450 nm. With an IP67 enclosure rating and high ambient light immunity, it's perfect for barcode scanning and object detection in manufacturing lines, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: Blue LED, 450 nm wavelength
- Light spot size: 180 mm x 9 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Switching output: Push-pull PNP/NPN, max 100 mA
- Cycle time: 5 ms
- Process data length: 21 Byte
- Connection type: M12, 5-pin plug
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Ambient light immunity: 50,000 lx
- Shock load: IEC 60068 compliant
- LED risk group: 2 (IEC 62471)
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing with IP67 enclosure rating
- Sensing distance up to 100 mm with ±10 mm tolerance
- Blue LED light source with 450 nm wavelength
- Supports IO-Link and CANopen communication protocols
- Push-pull PNP/NPN switching output with <100 mA max current
- High ambient light immunity up to 50,000 lx
- Operating temperature range from -10 °C to +55 °C
- LED risk group 2 compliant with IEC 62471
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode scanning
- Object detection in manufacturing lines
- Safety and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OLS20-BB1114142 Optical Sensor is available for immediate purchase, ideal for industrial automation and barcode detection applications.
