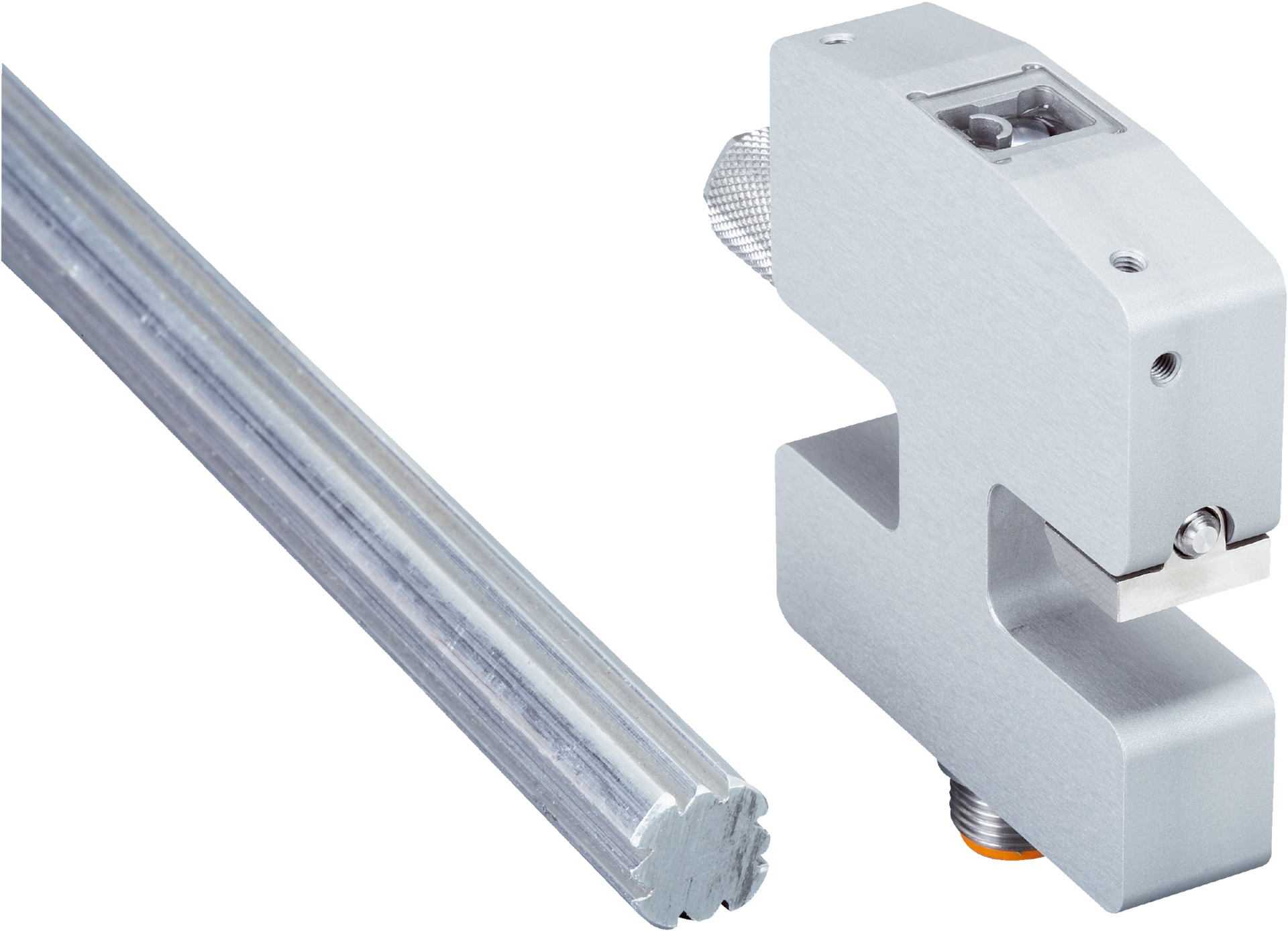

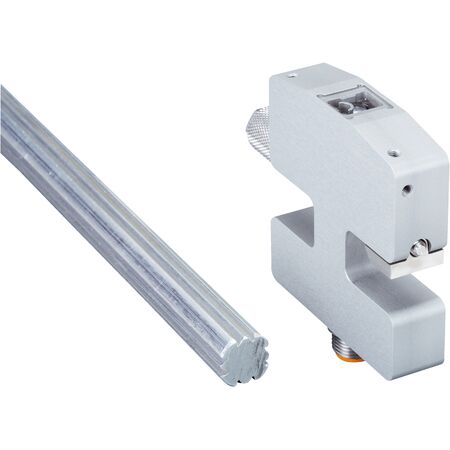

Optical Sensor RS10-M111 | IP67 Rated | Fast Response Time | Compact Design | by SICK
The Optical Sensor RS10-M111 is designed for industrial automation, featuring a fast response time of 20 microseconds and an IP67 rated enclosure for dust and water protection. With a sensing distance of 13 mm and a white LED light source, it's perfect for object detection and position sensing in manufacturing processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Response time: 20 microseconds
- Light source: White LED
- Wavelength: 450 nm to 650 nm
- Light spot size: 0.8 mm x 3 mm
- Switching output: PNP and NPN
- Output current max: less than 100 mA
- Connection type: Male M12, 8-pin connector
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -10°C to +60°C
- Storage temperature: -25°C to +75°C
- Shock load: compliant with IEC 60068
- Dimensions (H x L x W): 62mm x 60mm x 15mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 13 mm with ±1 mm tolerance
- White LED light source with wavelength range 450 nm to 650 nm
- Compact housing design with anodised aluminum material
- IP67 rated enclosure for dust and water protection
- Fast response time of 20 µs with PNP and NPN switching outputs
- Reverse polarity, overcurrent, and short-circuit protected circuitry
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low current consumption (<100 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK RS10-M111 Optical Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
