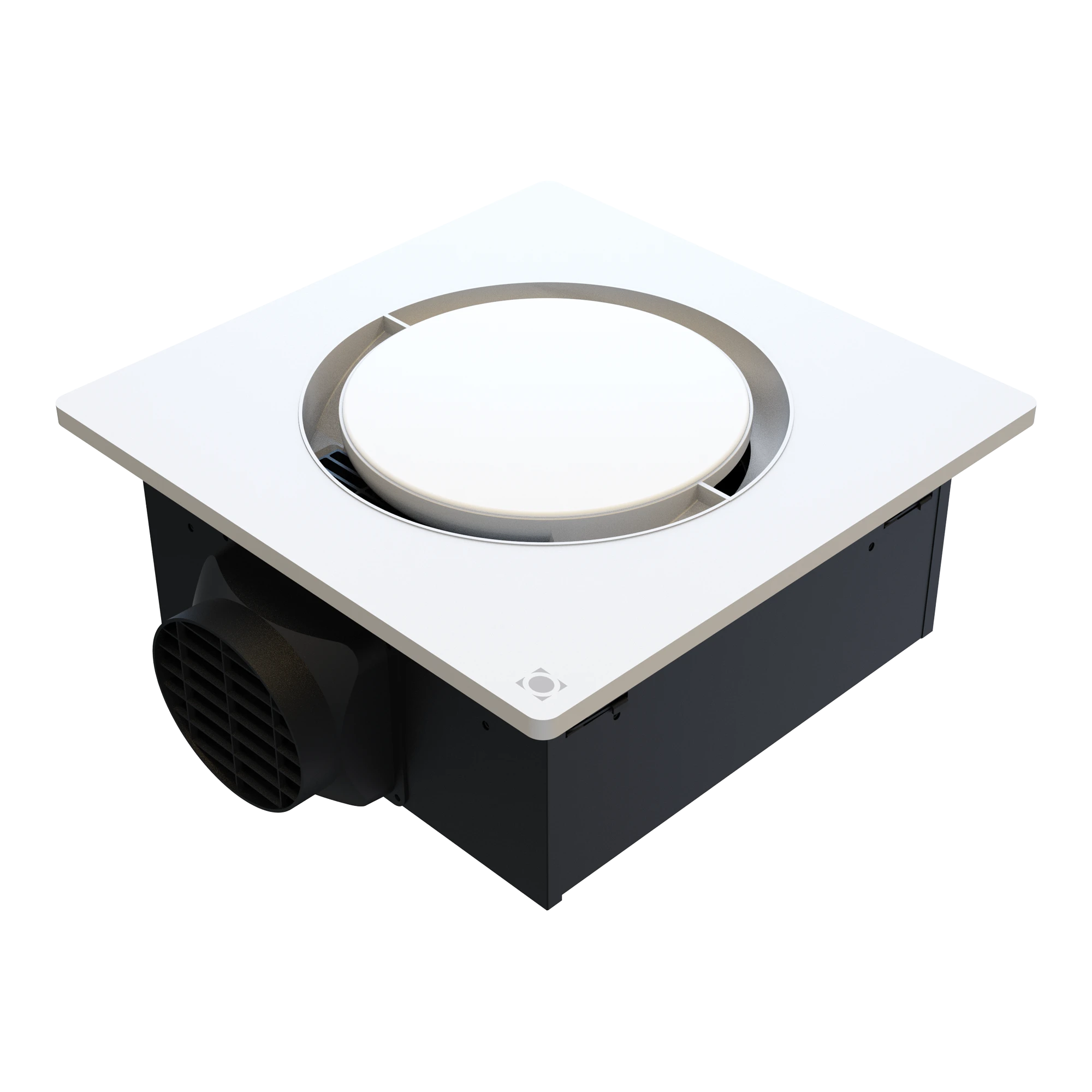

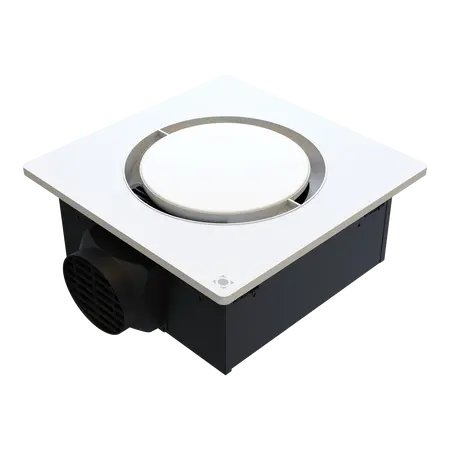

Orbis 4-in-1 Retrofit Bathroom Heater Fan & Light White Domus
Domus Orbis 4-in-1 retrofit bathroom heater with heat, exhaust fan and light, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Orbis 4-in-1 PTC Bathroom Heater, Domus 56021, Retrofit Bathroom Heat Fan Light, Bathroom Exhaust Heater
Technical Specifications
- Model: 56021 / BH-ORBIS
- Input Voltage: 240V AC
- Total Power: 2250W
- Heat Output: 2150W
- Heat Type: PTC heating element
- Motor Wattage: 60W AC
- Air Extraction: 300m3/h
- Light: 12W integrated LED
- Colour Temperature: 3000K, 4000K or 5000K selectable
- Lumen Output: 1000lm at 3000K, 1150lm at 4000K, 1100lm at 5000K
- Colour Rendering Index: CRI ≥80
- Noise Level: ≤46dB
- Ingress Protection: IPX2
- Ceiling Cutout: 330 x 350mm
- Fascia Size: 390 x 390mm
- Duct Size: 100mm
- Minimum Ceiling Clearance: 200mm
- Included Accessories: Digital six-switch wall controller, 3m flexible duct, exterior grille
- Dimensions (H x L x W): 158mm x 390mm x 390mm
- Weight: 5.8 kg
Key Features
- Four functions in one unit: heater, exhaust fan, circulating fan and light
- PTC heating technology with Heat Breeze airflow
- Designed for retrofit replacement of many existing 2-heat and 4-heat infrared bathroom units
- Tri-colour switchable LED light
- Digital wall controller with separate function controls and all-off operation
- Automatic two-hour safety shut-off for operating modes
- Uses existing five-core wiring arrangement with no additional switch wiring required in suitable installations
- 390mm fascia helps cover common existing ceiling openings
- Supplied with flexible ducting and exterior grille
Professional Installation Requirements
- Must be installed and electrically connected by a suitably licensed electrician in accordance with the manufacturer’s installation manual, AS/NZS 3000 and applicable state or territory regulations. Installation requires a minimum 200mm ceiling clearance, suitable duct discharge to outside and a circuit breaker rated at not less than 10A. The unit must be positioned at least 2.1m above the floor and at least 0.6m from a bath or shower.
Applications
- Bathroom heating and ventilation
- Ensuite and laundry ventilation
- Retrofit replacement of older 2-heat or 4-heat ceiling bathroom heaters
- Residential bathroom renovation projects
- Commercial bathroom and amenity areas where suitable electrical and ventilation provisions are available
Standards & Compliance
- AS/NZS 60335.1: Household and similar electrical appliances - general safety requirements, referenced in the manufacturer’s installation manual
- AS/NZS 3000: Electrical installations and wiring requirements for fixed electrical equipment; installation must comply with the current edition and local regulations
Environmental Benefits
- Integrated LED lighting provides efficient illumination compared with conventional bathroom lighting technologies
- PTC heating and selectable operating modes allow heating, circulation and extraction functions to be used independently as required
- Exhaust ventilation helps reduce bathroom moisture and condensation when correctly ducted to outside
- Durable integrated construction and an extended manufacturer warranty can reduce replacement frequency and product waste
Warranty Information
Domus product literature states a 5-year in-home warranty for PTC bathroom heaters. Domus’s current warranty statement lists bathroom heaters under a 6-year total warranty: 3 years in-home followed by 3 years parts replacement, subject to purchase, licensed-electrician installation and warranty conditions. Confirm the applicable warranty terms for the purchase date with Domus.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
