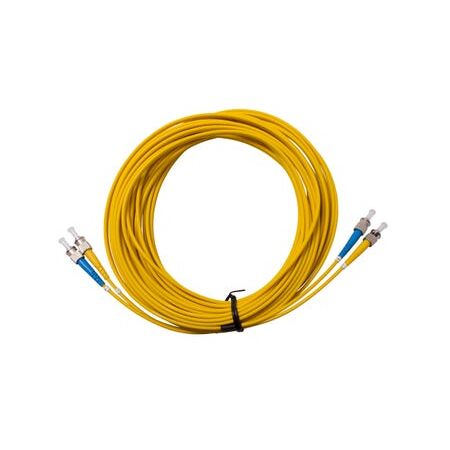

OS2 Duplex Fibre Patch Lead 15m ST LSZH Yellow Cabac
Cabac OS2 duplex fibre patch lead features ST connectors, 15m length, LSZH jacket. Yellow finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 3mm Yellow LSZH Jacket
- Duplex fibre patch lead
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: ST to ST
- Available in OM1, OM3, OM4 and Singlemode
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 15000mm x 3mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 3mm Yellow LSZH sheath
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
- IEC 11801
- 14763.36
- ANSI/TIA 568-3
- 61300-3
- RoHS
- REACH
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant materials ensure reduced environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre ST - ST Singlemode 15 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centres, telecommunications, and fibre optic network patching.
