Trade Discount 25%

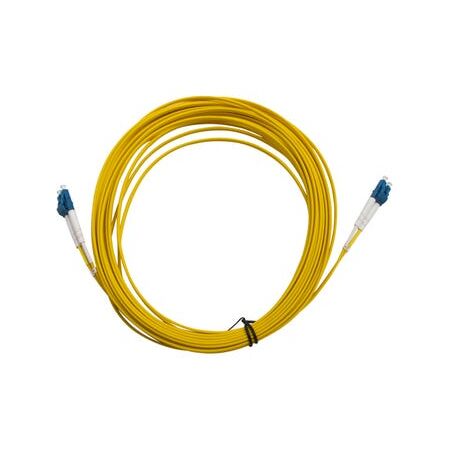

OS2 Duplex Fibre Patch Lead 20m LC LSZH Yellow MSS
MSS OS2 duplex fibre patch lead features LC connectors, 20m length, LSZH jacket. Yellow finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector Type: Duplex Clip on LC connectors
- Fibre Type: Singlemode
- Jacket: 2mm Yellow LSZH
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Complies with IEC 61300-3 standards
- Up to 500 mating cycles
- Dimensions (H x L x W): 2mm x 20000mm x 20000mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 2mm Yellow LSZH sheath
Professional Installation Requirements
- Professional installation recommended to ensure proper handling and termination of fibre optic cables for optimal performance.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
- IEC 11801
- 14763.36
- ANSI/TIA 568-3
- 61300-3
- RoHS
- REACH
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Warranty details not specified; typically covered by manufacturer warranty against defects.
Available Now
The MSS Fibre LC - LC Singlemode 20 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching.
