Trade Discount 25%

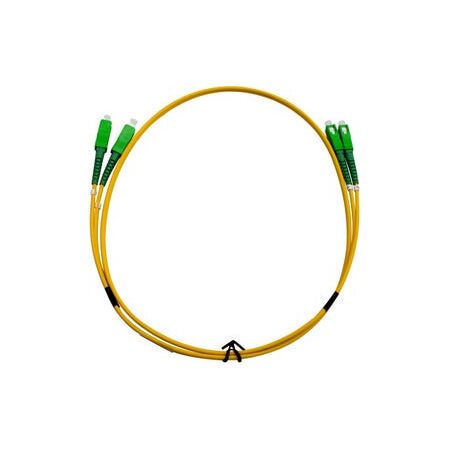

OS2 Duplex Fibre Patch Lead 5m SC APC LSZH Yellow Cabac
Cabac OS2 duplex fibre patch lead features SC APC connectors, 5m length, LSZH jacket. Yellow finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Duplex Clip on LC connectors
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 5000mm x 3000mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified telecommunications or network professionals is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- Complies with AS/CA S008 for telecommunications cabling
- Meets IEC 11801 and ANSI/TIA 568-3 standards
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SCA - SCA Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for high-performance data centre and telecommunications applications.
