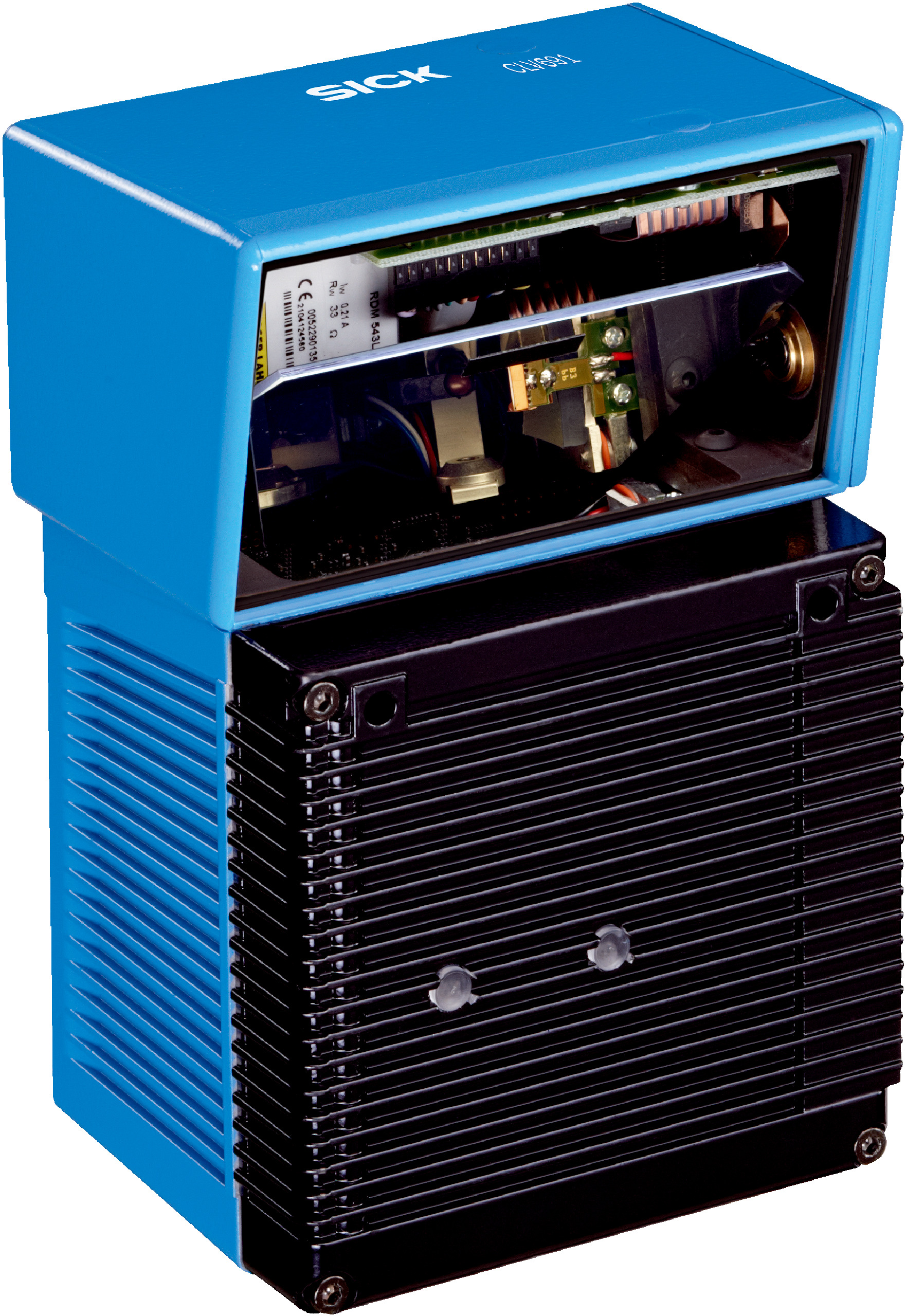

Oscillating Mirror Barcode Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV691-1000 is designed for high-speed industrial barcode scanning, featuring an auto focus sensor and dynamic focus control. With a reading distance of 500 mm to 2200 mm and a scanning frequency of 400 Hz to 1200 Hz, it's perfect for automated production lines and logistics applications, ensuring efficient code reading and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056605
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV691 Scanner, 1D Code Scanner
Technical Specifications
- Version: Low Density
- Connection type: Depending on the cloning plug used
- Sensor type: Oscillating mirror with auto focus and dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Light source: Visible red laser, 660 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 500 mm to 2200 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1.2 mm
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° adjustable via software
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 17 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Weight: 2.2 kg
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- Oscillating mirror sensor with auto focus and dynamic focus control
- Reading distance from 500 mm to 2200 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports up to 8 distance configurations
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing for robust industrial use
- Integrated parameter storage in cloning plug
- Supports reading up to 50 codes per reading interval and 5000 characters
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial barcode scanning for 1D codes
- Automated production lines requiring high-speed code reading
- Logistics and warehouse management systems
- Quality control and traceability in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient operation with 17 W power consumption
- Supports long MTBF of 100,000 hours reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV691-1000 barcode scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable and high-speed barcode reading.
