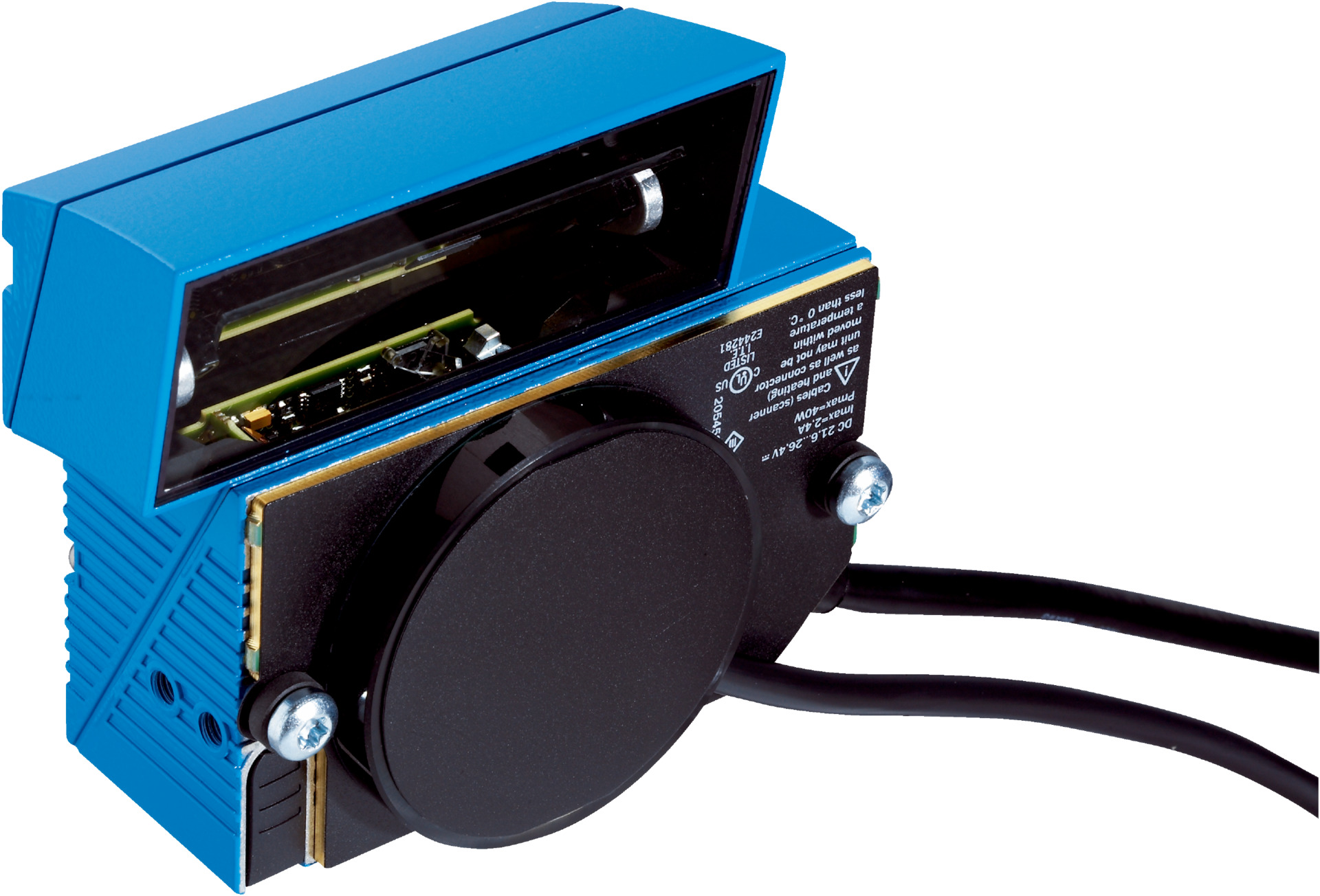

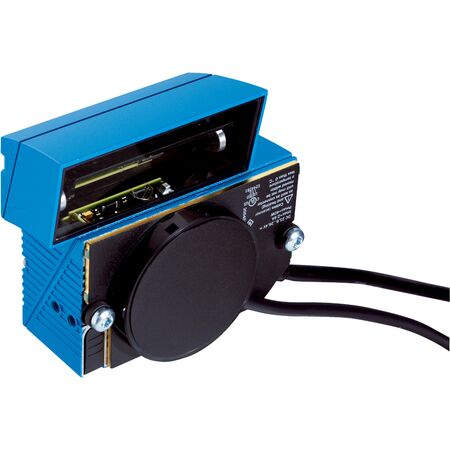

Oscillating Mirror Barcode Scanner | Auto Focus Optical System | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV650-6120F0 is designed for industrial automation and cold storage applications, featuring an auto focus optical system and robust IP65-rated aluminum housing. With a reading distance of 125 mm to 1570 mm and the ability to decode up to 50 codes per reading interval, this scanner is perfect for logistics, warehouse management, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Auto Focus Optical System | IP65 Rated | by SICK
Brand: SICK
SKU: 1053104
Alternatively Known As: Oscillating Mirror Barcode Scanner, SICK CLV650 Barcode Reader, Industrial Barcode Scanner, Auto Focus Laser Scanner
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors, 1 x open-ended cable
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 450 g without connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 auto-discriminating
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.45 kg
Key Features
- Standard Density version with oscillating mirror reading field
- Auto focus optical system
- Visible red laser light source at 658 nm, Laser class 2 compliant
- Reading distance from 125 mm to 1570 mm
- Scanning frequency between 600 Hz and 1000 Hz
- Code resolution from 0.25 mm to 1 mm
- Oscillating mirror with adjustable position and variable amplitude
- Heating for cold storage applications
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- 6 LED optical indicators and acoustic beeper
- Configuration via SOPAS ET software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Cold storage barcode scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV650-6120F0 barcode scanner is available for immediate purchase, ideal for industrial and cold storage barcode scanning applications.
