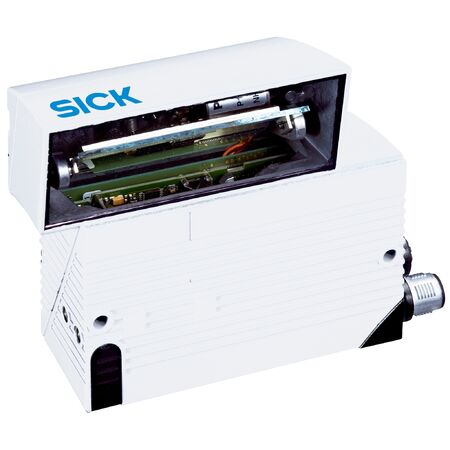

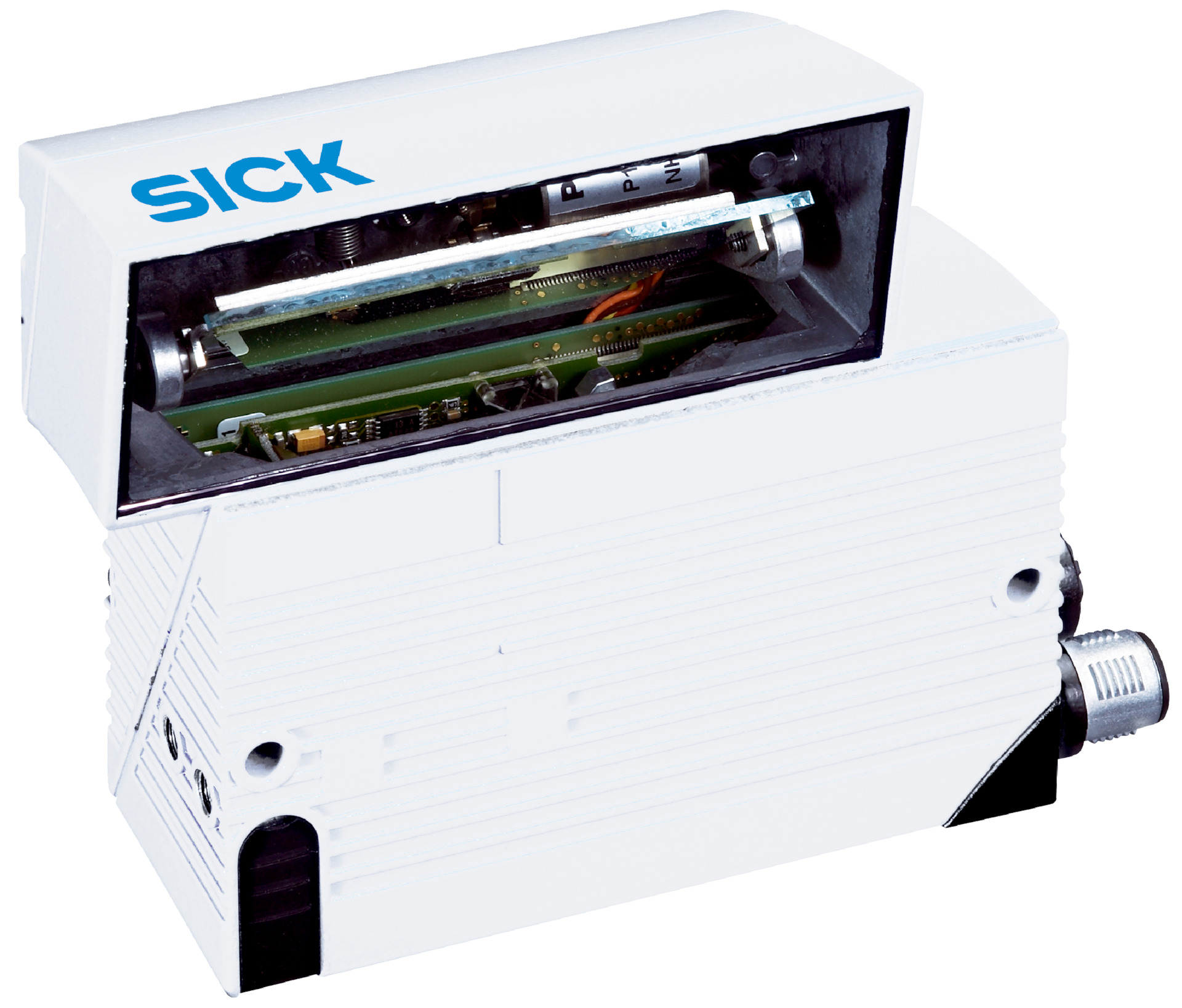

Oscillating Mirror Barcode Scanner | Auto Focus Optical System | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV651-6120S52 features an auto focus optical system with a visible red laser light source, making it perfect for industrial automation and logistics applications. With a reading distance of 155 mm to 880 mm and support for all current 1D barcode types, this robust scanner is designed for efficiency and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Low density version with oscillating mirror sensor type
- Auto focus optical system with visible red laser light source (658 nm)
- Reading distance from 155 mm to 880 mm with scanning frequency 600 Hz to 1000 Hz
- Supports reading of all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating and protection class III
- Equipped with 6 LEDs and acoustic beeper for status indication
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and network interfaces.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package and inventory scanning
- Quality control and product tracking in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy efficient with low power consumption of 9.5 W
- Durable aluminum housing extends product life reducing waste
- Complies with laser safety standards minimizing environmental and user risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV651-6120S52 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
