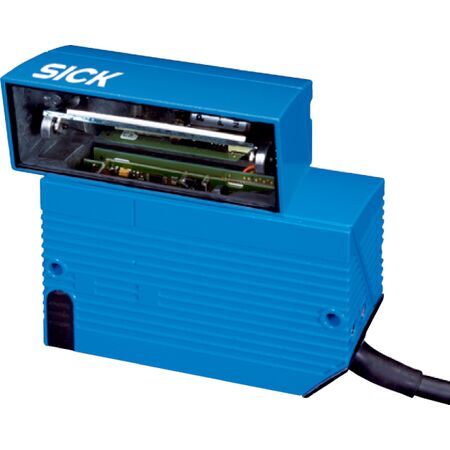

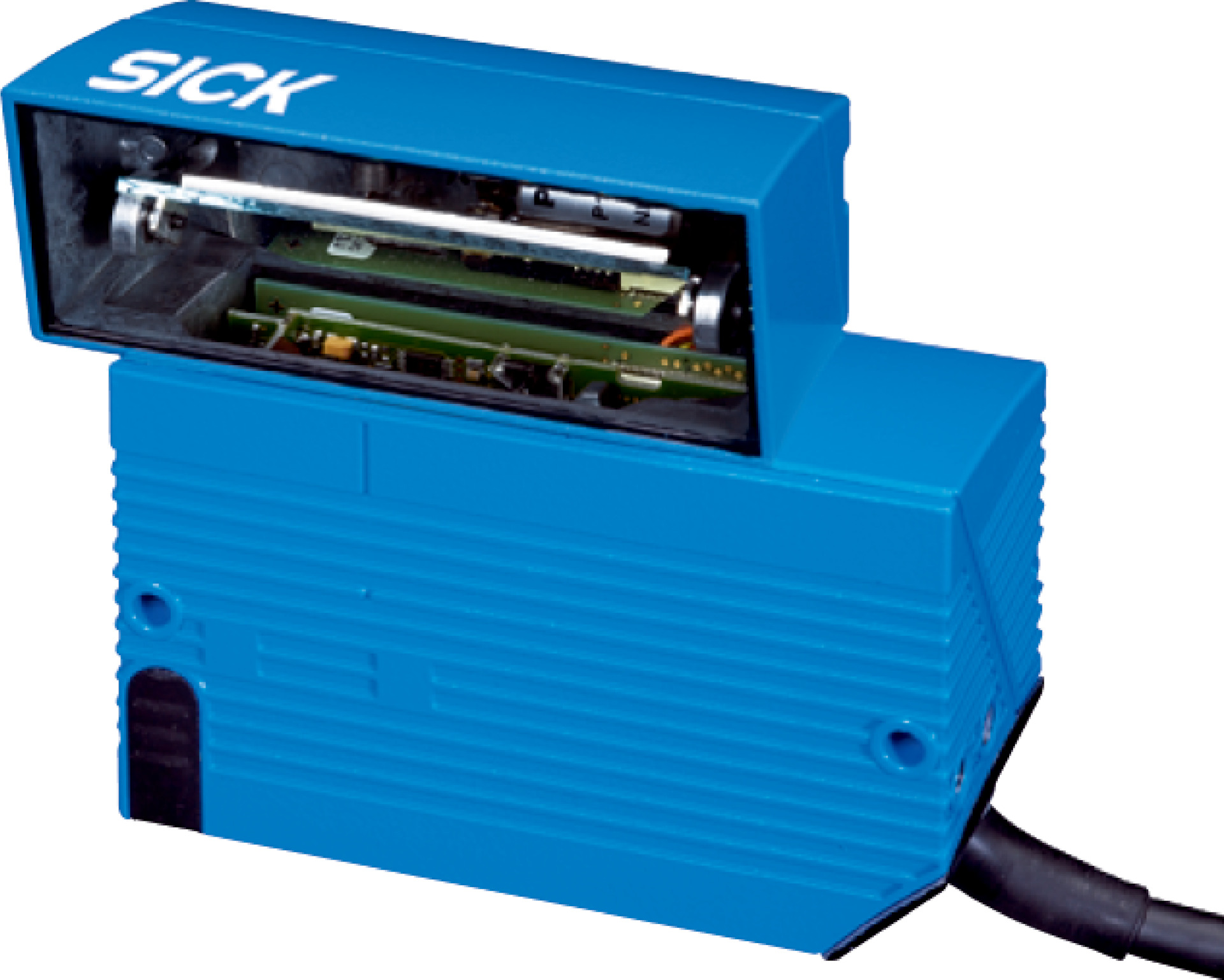

Oscillating Mirror Barcode Scanner CLV651-6000 | IP65 Rated | Auto Focus Optical System | by SICK
The Oscillating Mirror Barcode Scanner CLV651-6000 is designed for industrial automation, featuring an IP65 rating and an auto focus optical system with a visible red laser light source. Ideal for logistics and warehouse management, this robust scanner offers multiple interface options and a reading distance of 155 mm to 880 mm, ensuring efficient barcode reading in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner CLV651-6000 | IP65 Rated | Auto Focus Optical System | by SICK
Brand: SICK
SKU: 1046559
Alternatively Known As: Oscillating Mirror Barcode Scanner, SICK CLV651, Industrial Barcode Reader, Laser Barcode Scanner
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.32 kg
Key Features
- Low density version with oscillating mirror sensor type
- Auto focus optical system with visible red laser light source (658 nm)
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- Reading distance from 155 mm to 880 mm
- Scanning frequency between 600 Hz and 1000 Hz
- Code resolution of 0.5 mm
- Oscillating mirror functions include fixed, oscillating with variable or fixed amplitude, and one shot
- Oscillation frequency range from 0.5 Hz to 6.25 Hz with angle of deflection from -20° to 20°
- Multiple interface options including PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial barcode scanning equipment and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV651-6000 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics barcode reading applications.
