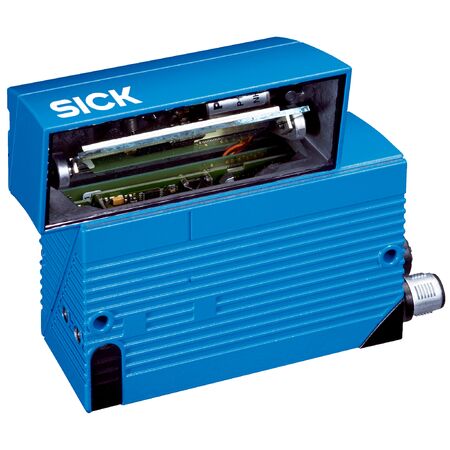

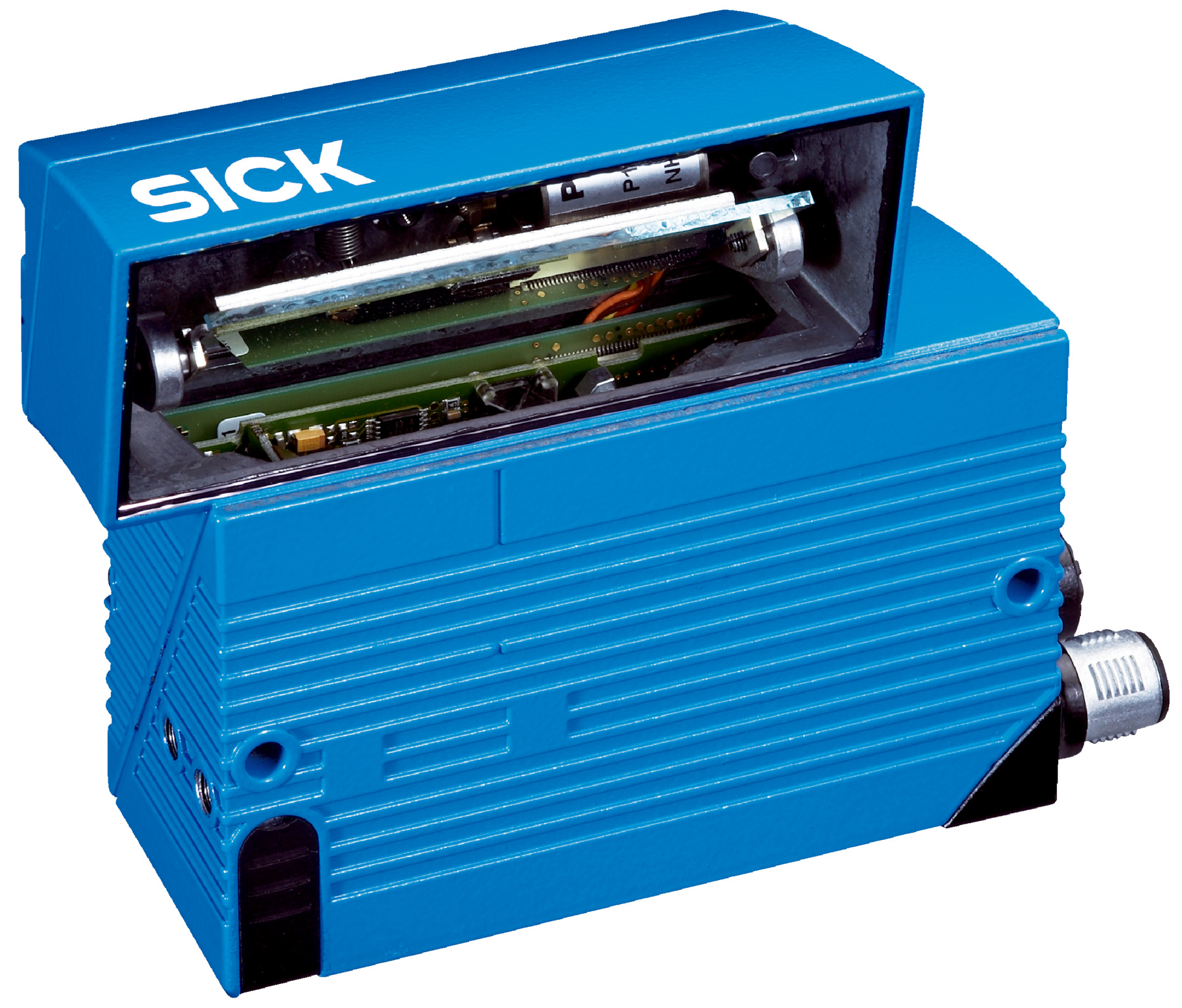

Oscillating Mirror Barcode Scanner | Dynamic Focus Control | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV640-6120S01 is designed for industrial automation, featuring dynamic focus control and a robust IP65-rated aluminum housing. With a reading distance of 45 mm to 755 mm and high scanning frequency up to 1200 Hz, it excels in quality control and logistics applications, ensuring reliable barcode reading across various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1048449
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV640 Scanner, Dynamic Focus Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet and multiple fieldbus options
- Reading field: Oscillating mirror with fixed or variable amplitude
- Light source: Visible red laser, 655 nm, laser class 2
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 755 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 350 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Standard density version with dynamic focus control
- Oscillating mirror sensor type with adjustable position and variable amplitude
- Visible red laser light source (655 nm) with laser class 2 safety
- Reading distance from 45 mm to 755 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports reading of all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating for protection against dust and water
- Operating temperature range from 0 °C to +40 °C
- Equipped with 6 LEDs and acoustic indicators for status and result feedback
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and electrical safety is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Quality control and inspection in manufacturing
- Logistics and warehouse management
- Direct part marking and inkjet code reading
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports direct part marking reading, enabling sustainable manufacturing processes
Warranty Information
Warranty terms as provided by SICK, typically including coverage against manufacturing defects. Please refer to official SICK documentation for exact warranty period.
Available Now
The SICK CLV640-6120S01 barcode scanner is available for immediate purchase, ideal for industrial automation and quality control applications.
