Oscillating Mirror Barcode Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | 45 mm to 755 mm Reading Distance | by SICK

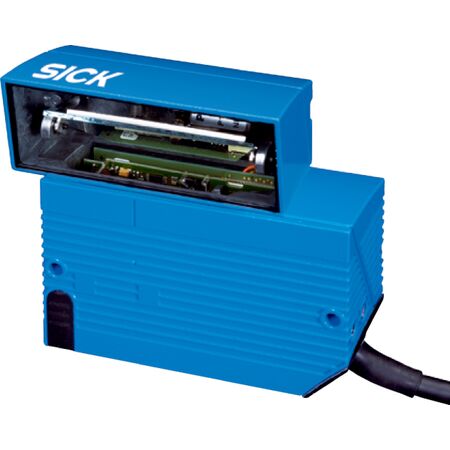

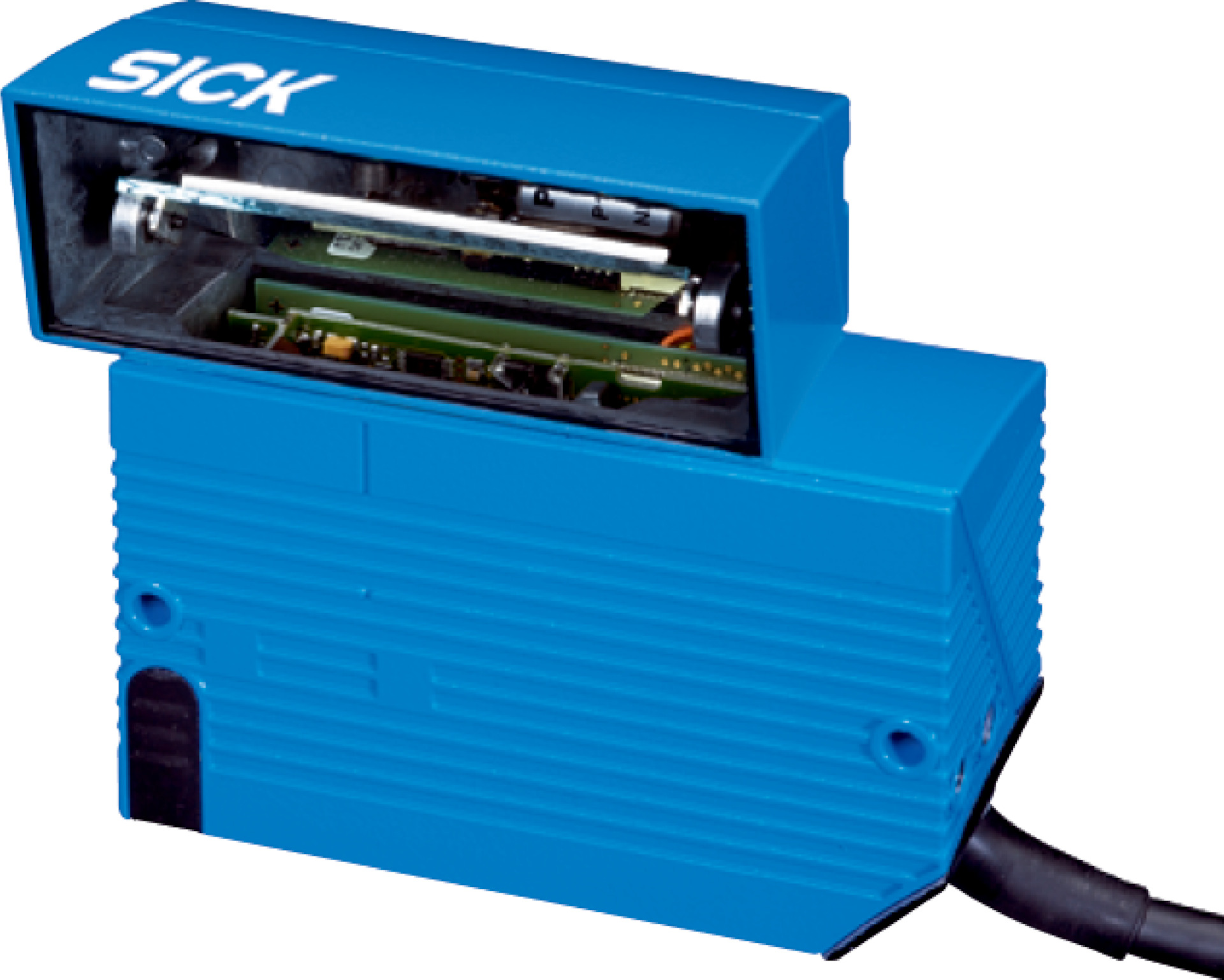

The Oscillating Mirror Barcode Scanner CLV640-6000 is designed for industrial automation, featuring a robust IP65 rated aluminum housing and a dynamic focus control with a visible red laser light spot. With a reading distance of 45 mm to 755 mm and a scanning frequency of 400 Hz to 1,200 Hz, it supports all current 1D barcode types, making it ideal for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | 45 mm to 755 mm Reading Distance | by SICK
Brand: SICK
SKU: 1042022
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV640 Series Scanner
Technical Specifications
- Sensor type: Oscillating mirror
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1:2014+A11:2021 compliant)
- Reading distance: 45 mm to 755 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Connection type: 1 x 15-pin D-Sub HD male connector (0.9 m cable)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Data transmission rate: 20 kbit/s to 1 Mbit/s
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.42 kg
Key Features
- Standard density version with oscillating mirror sensor type
- Dynamic focus control with visible red laser light spot (655 nm)
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- Reading distance from 45 mm to 755 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Operating temperature range 0 °C to +40 °C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV640-6000 barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
