Oscillating Mirror Barcode Scanner | Low Density | 1D Barcode Reading | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner is designed for high-performance barcode reading in industrial automation and cold storage applications. With its low density version, it features an oscillating mirror sensor with auto focus control, capable of reading various 1D barcode types. Built for durability, this scanner operates efficiently in harsh environments, ensuring reliable performance and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

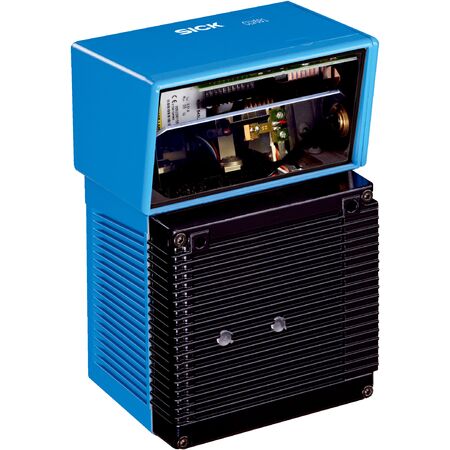

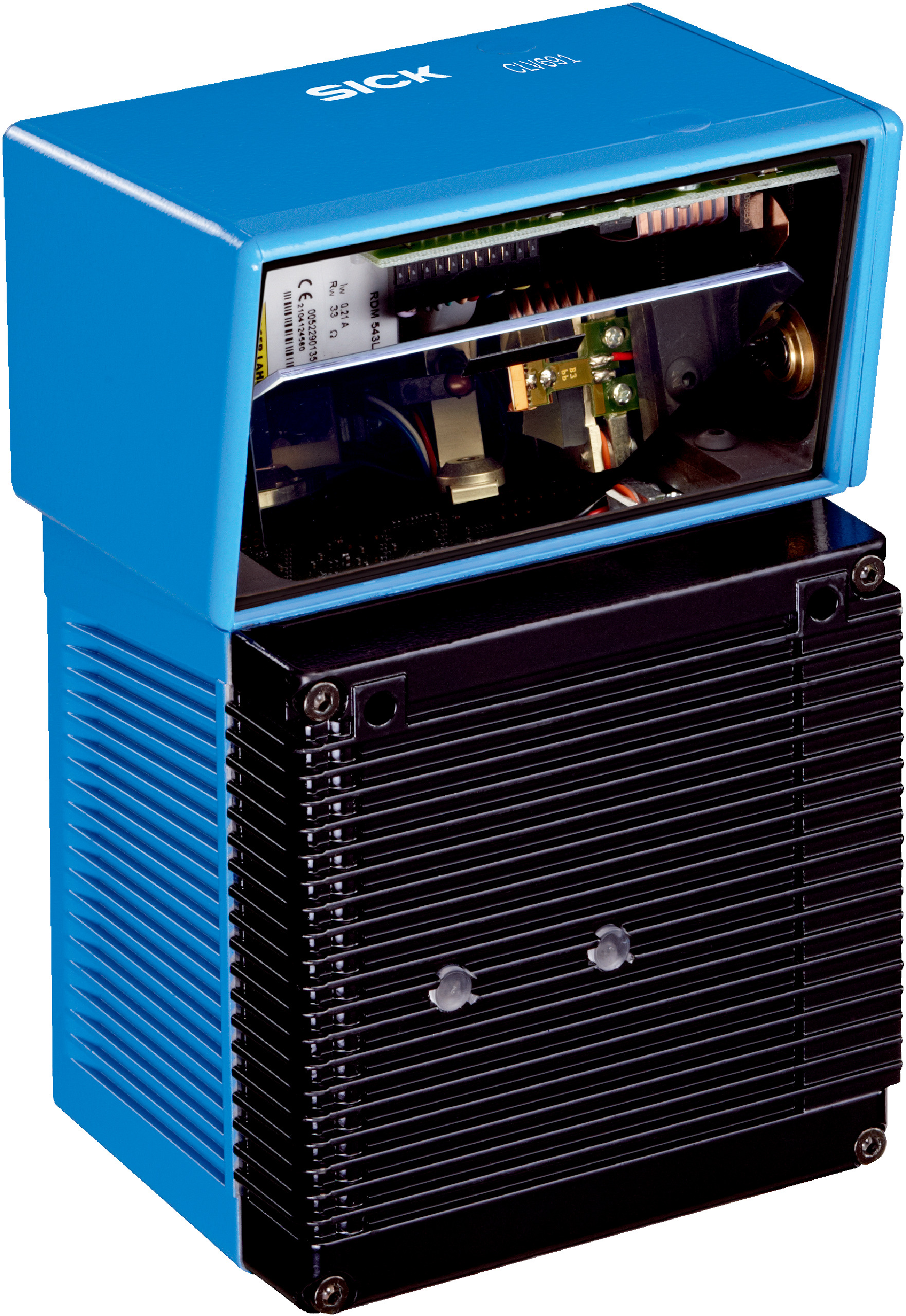

Product Name/Title: Oscillating Mirror Barcode Scanner | Low Density | 1D Barcode Reading | IP65 Rated | by SICK
Brand: SICK
SKU: 1056607
Alternatively Known As: Oscillating Mirror Barcode Scanner, SICK CLV691 Barcode Reader, Industrial Laser Barcode Scanner, Low Density Barcode Scanner
Technical Specifications
- Version: Low Density
- Connection type: Depending on the cloning plug used
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus or dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Visible red laser spot, 660 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 500 mm to 2,100 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1.2 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° (software adjustable)
- Heating: Included with front screen heating
- Cold storage applications supported
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 80 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Weight: 2,200 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs plus bar graph for reading rate
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: –35 °C to +35 °C
- Storage temperature: –20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- Oscillating mirror sensor with auto or dynamic focus control
- Reads 1D barcodes including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Laser class 2 with visible red light spot at 660 nm wavelength
- Adjustable oscillation frequency from 0.5 Hz to 4 Hz and deflection angle ±20°
- Front screen heating for cold storage applications
- High scanning frequency between 400 Hz and 1200 Hz
- Multiple interface options including Ethernet TCP/IP, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Integrated parameter storage in cloning plug and configuration via SOPAS ET software
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and network integration.
Applications
- Industrial automation and manufacturing for barcode reading
- Cold storage and harsh environment scanning
- Logistics and warehouse code scanning
- Quality control and product tracking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
- Front screen heating enables reliable operation in cold environments, reducing downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV691-1001 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and cold storage applications.
