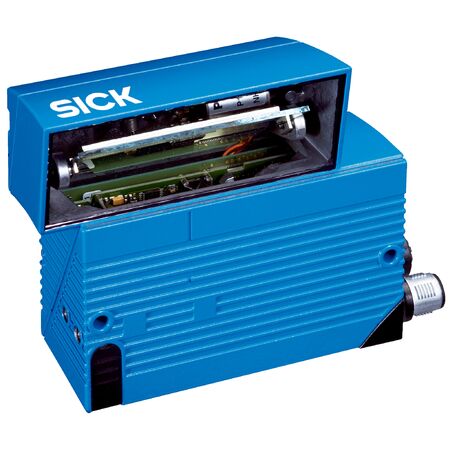

Oscillating Mirror Barcode Scanner | Low Density Version | Auto Focus & High Scanning Frequency | IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV651-6120 is designed for industrial automation, featuring a low density version with an oscillating mirror sensor and auto focus optical system. With a reading distance of 155 mm to 880 mm and a high scanning frequency of 600 Hz to 1000 Hz, it supports all current 1D barcode types. Ideal for logistics, manufacturing process control, and quality traceability systems, this robust scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Low Density Version | Auto Focus & High Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1046560
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV651 Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Low Density
- Connection type: Ethernet and multiple industrial interfaces
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 155 mm to 880 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 5,000
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Low density version with oscillating mirror sensor type
- Auto focus optical system with visible red laser light source (658 nm)
- Reading distance from 155 mm to 880 mm
- High scanning frequency between 600 Hz and 1000 Hz
- Supports reading of all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012)
- 6 LED optical indicators and acoustic beeper for status feedback
- MicroSD memory card support for configuration
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial barcode scanning equipment and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports multiple communication protocols reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV651-6120 barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
