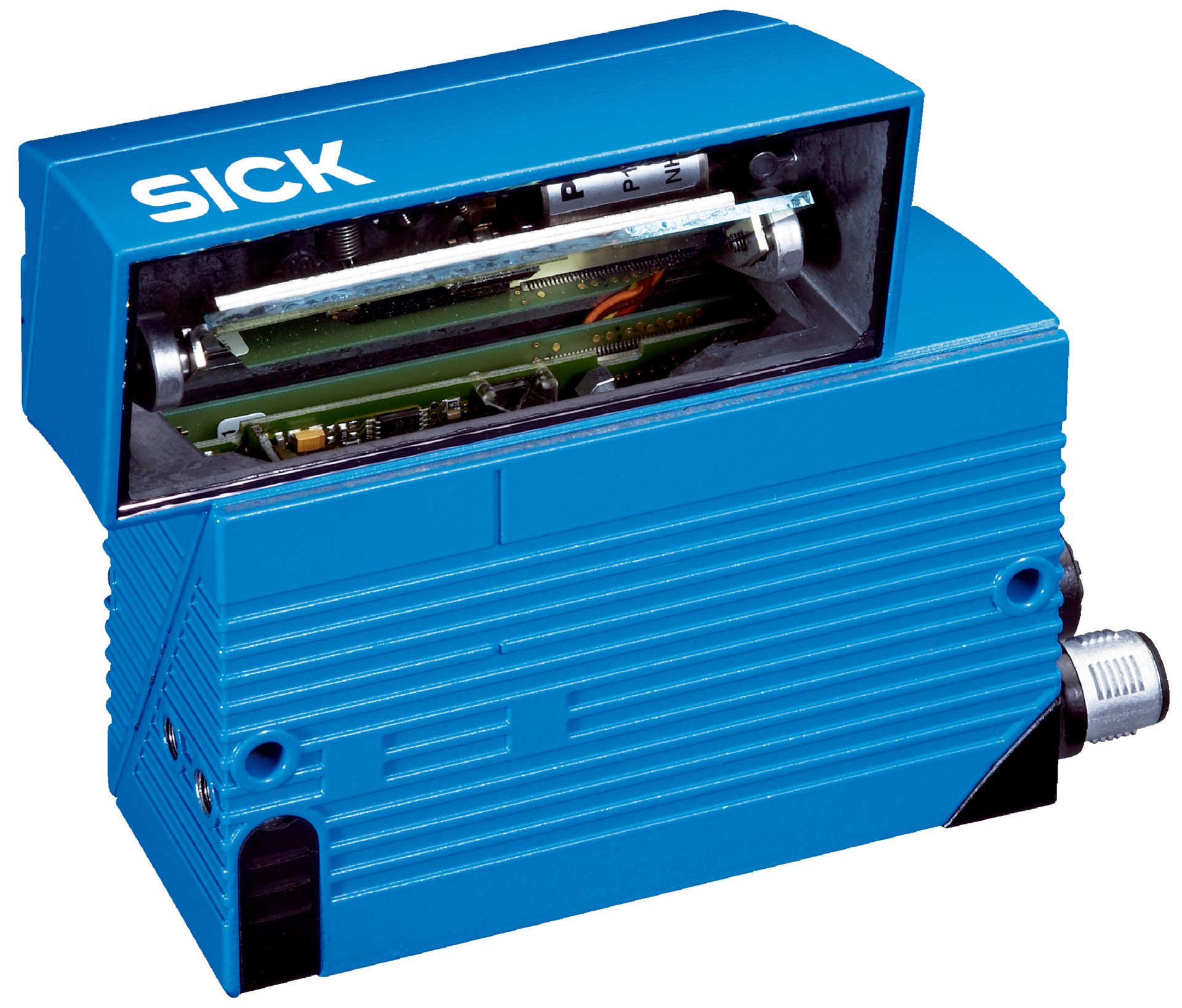

Oscillating Mirror Barcode Scanner | Low Density Version | Auto Focus & IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner is designed for industrial automation, featuring a low density version with an oscillating mirror sensor and auto focus optical system. With a reading distance of 155 mm to 880 mm and a high scanning frequency of 600 Hz to 1000 Hz, it supports all current 1D barcode types, making it ideal for logistics, warehouse management, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Low Density Version | Auto Focus & IP65 Rated | by SICK
Brand: SICK
SKU: 1050849
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV651 Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Low Density
- Connection type: Ethernet and multiple industrial interfaces
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 155 mm to 880 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.5 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128/EAN 128, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Low density version with oscillating mirror sensor type
- Auto focus optical system with visible red laser light source (658 nm)
- Reading distance from 155 mm to 880 mm
- High scanning frequency between 600 Hz and 1000 Hz
- Supports reading of all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Lightweight at 250 g without cable
- Equipped with 6 LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial barcode scanning equipment and compliant with electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Object tracking in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 9.5 W
- Durable aluminum housing reduces need for frequent replacements
- Complies with laser safety standards to minimize environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now

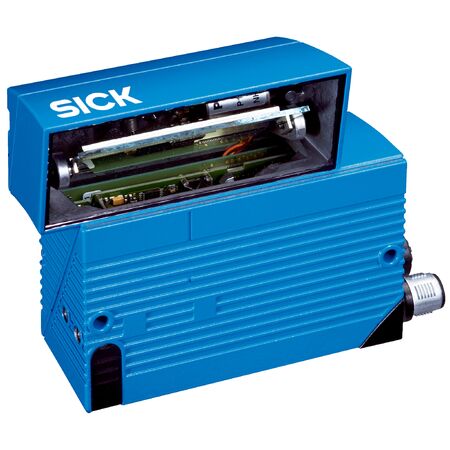

The SICK CLV651-68300A barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
