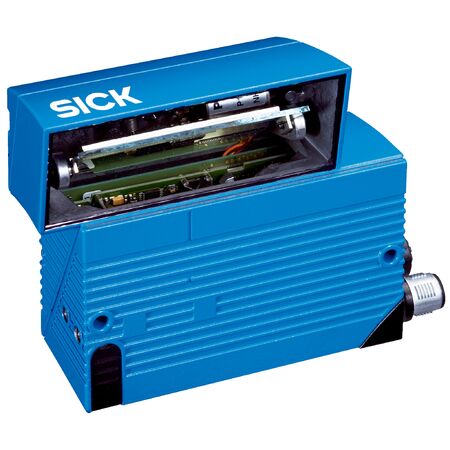

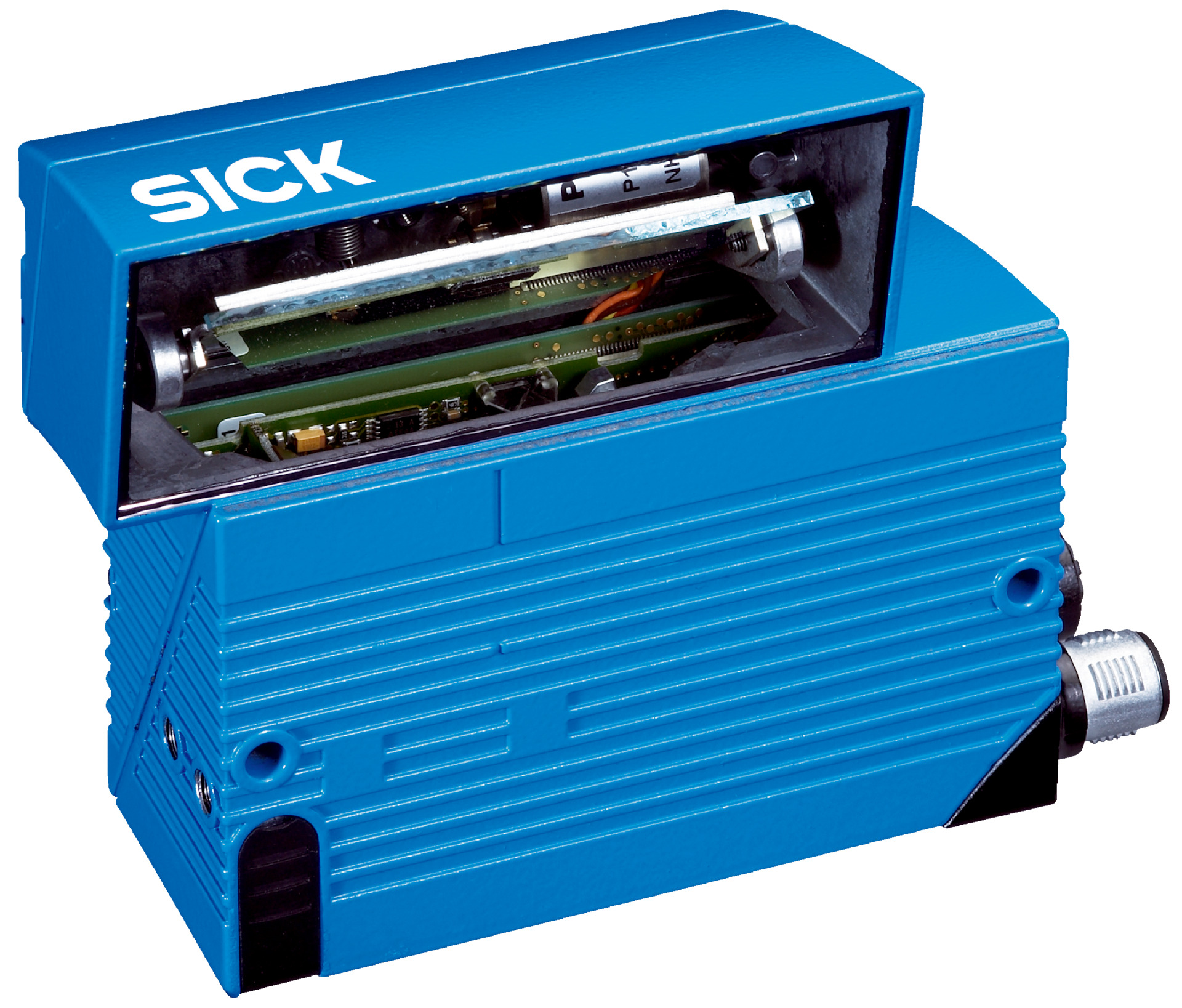

Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner is designed for industrial automation, featuring a standard density version with an oscillating mirror sensor and auto focus optical system. With a reading distance of 125 mm to 1570 mm and a high scanning frequency of 600 Hz to 1000 Hz, it supports all current 1D barcode types. Ideal for logistics and manufacturing process control, this robust scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
Brand: SICK
SKU: 1050848
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV650 Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 125 mm to 1570 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.25 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Standard Density version with oscillating mirror sensor type
- Auto focus optical system with visible red laser light source (658 nm)
- Reading distance from 125 mm to 1570 mm
- High scanning frequency between 600 Hz and 1000 Hz
- Supports reading of all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012)
- Low power consumption of 9.5 W
- Compact dimensions of approximately 95 mm x 107 mm x 41 mm
- Weight of 250 g without connecting cable
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial barcode scanning equipment and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Object tracking in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV650-68300A barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
