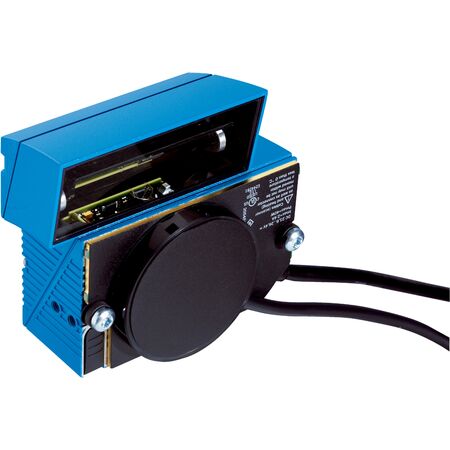

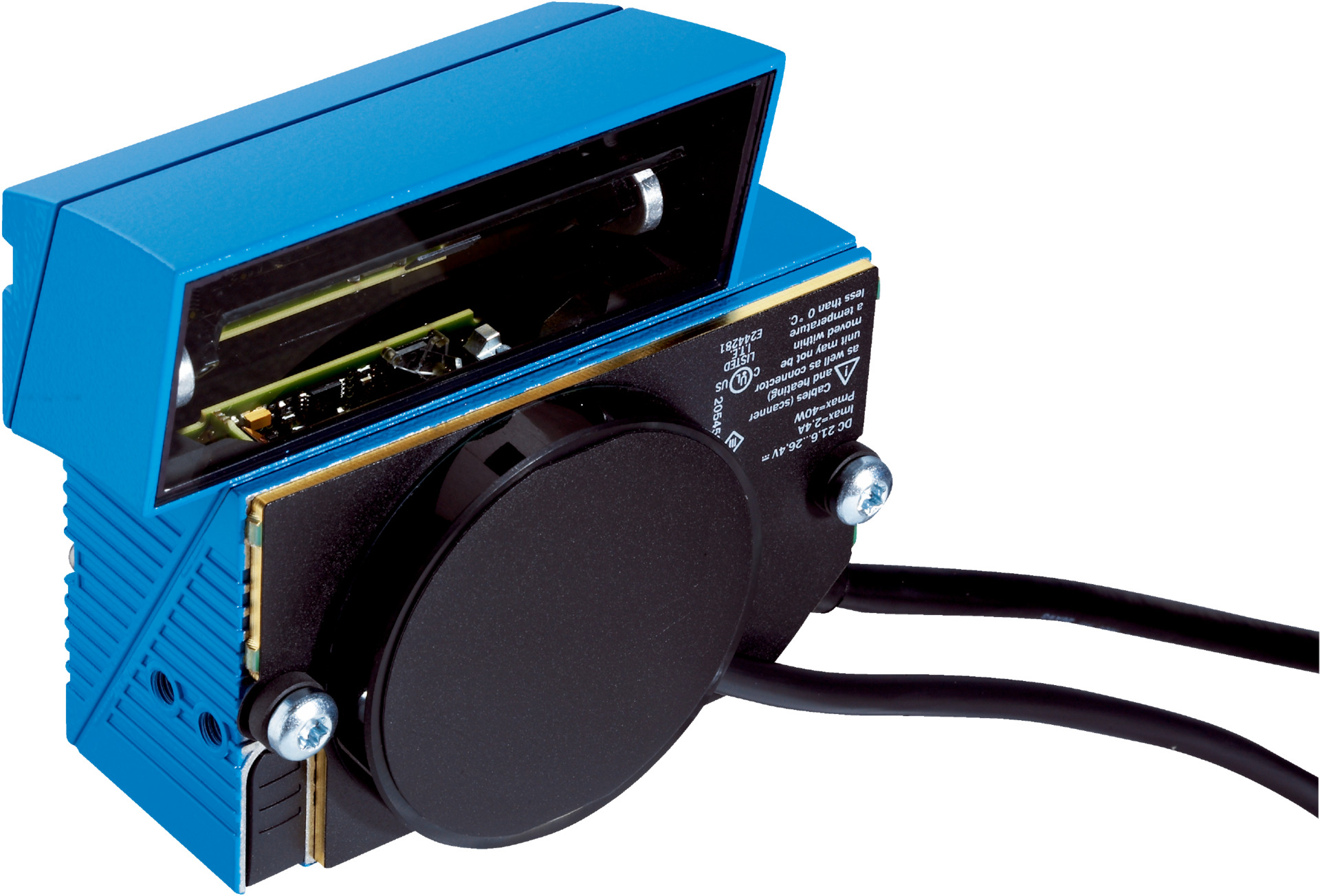

Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner is designed for industrial applications, featuring a standard density version with an auto focus optical system and a visible red laser light source. With a reading distance of 125 mm to 1570 mm and multiple oscillating mirror functions, it excels in harsh environments, making it ideal for manufacturing and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
Brand: SICK
SKU: 1052181
Alternatively Known As: Oscillating Mirror Barcode Scanner, Industrial Barcode Reader, SICK CLV650 Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Cable with 15-pin D-Sub HD male connector and open-ended cable
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: 2 (IEC 60825-1:2014, FDA 21 CFR 1040.10 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 125 mm to 1570 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.25 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Heating: Included
- Cold storage applications: Supported
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 520 g with cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 95mm x 107mm
- Weight: 0.52 kg
Key Features
- Standard density version with oscillating mirror reading field
- Auto focus optical system with visible red laser light source (658 nm)
- Laser class 2 compliant with IEC 60825-1:2014 and FDA regulations
- Reading distance from 125 mm to 1570 mm with scanning frequency 600 Hz to 1000 Hz
- Multiple oscillating mirror functions including fixed and variable amplitude
- Robust aluminum die cast housing with IP65 protection rating
- Supports multiple industrial communication interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial RS-232/422/485
- Equipped with digital inputs and outputs, optical and acoustic indicators
- Operating temperature range from -35°C to +35°C suitable for harsh environments
- High vibration and shock resistance compliant with EN standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and electrical safety standards.
Applications
- Industrial barcode scanning for 1D codes
- Label and printed code reading in manufacturing and logistics
- Cold storage environments due to heating and cold storage application support
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption (40 W)
- Supports cold storage applications reducing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV650-6000F0 barcode scanner is available for immediate purchase, ideal for industrial and logistics applications requiring reliable 1D code reading.
