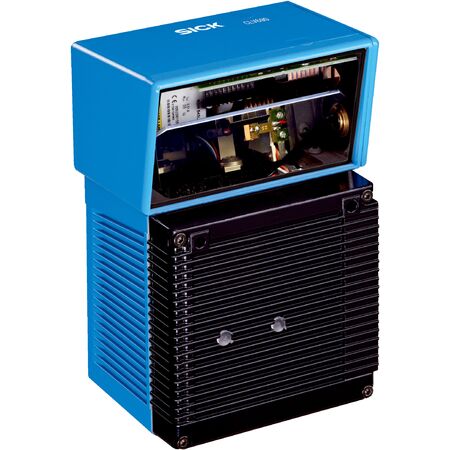

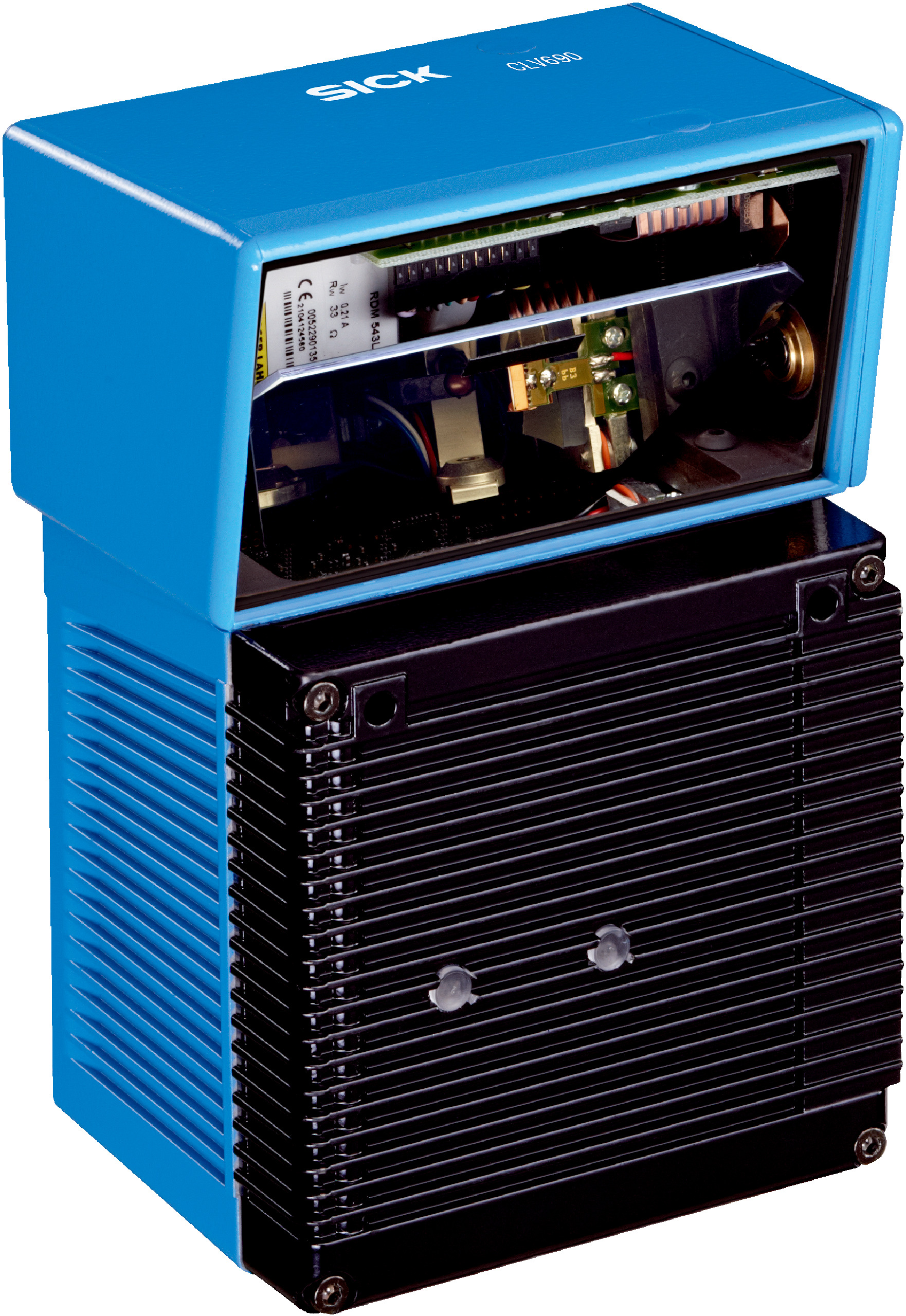

Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
The Oscillating Mirror Barcode Scanner CLV690-1001 is designed for industrial barcode scanning with a standard density version and an oscillating mirror sensor. It features auto focus and a reading distance of 500 mm to 2,100 mm, making it ideal for automated production lines and logistics. With its IP65 rated aluminum housing and high scanning frequency, this scanner ensures reliable performance in cold storage environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oscillating Mirror Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
Brand: SICK
SKU: 1056603
Alternatively Known As: Oscillating Mirror Barcode Scanner, Standard Density Barcode Reader, SICK CLV690 Scanner
Technical Specifications
- Version: Standard Density
- Sensor type: Oscillating mirror
- Optical focus: Auto focus or dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Light source: Visible red laser, 660 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 500 mm to 2,100 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.3 mm to 1 mm
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° (software adjustable)
- Heating and front screen heating included
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 80 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Weight: 2.2 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128, UPC, GTIN, EAN
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Ambient operating temperature: –35 °C to +35 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- Standard Density version with oscillating mirror sensor
- Auto focus with alternative dynamic focus control
- Reading distance from 500 mm to 2,100 mm
- Laser class 2, visible red light at 660 nm
- Oscillating mirror functions with adjustable position and amplitude
- Front screen heating for cold storage applications
- IP65 rated aluminum die cast housing
- Supports multiple industrial communication interfaces including Ethernet, PROFINET, EtherNet/IP, CAN, PROFIBUS DP, and serial connections
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads 1D barcode types including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and others
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Cold storage environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy efficient laser scanning technology minimizes power consumption
- Front screen heating ensures reliable operation in cold environments reducing downtime
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK CLV690-1001 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and cold storage applications.
