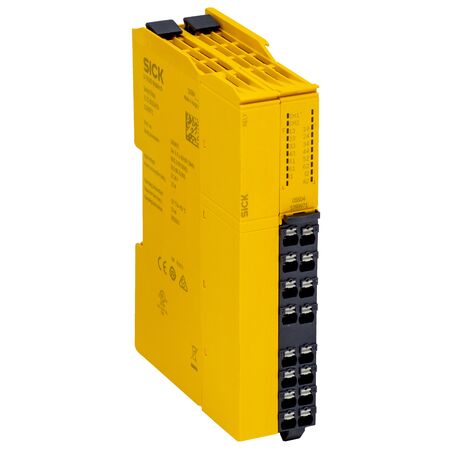

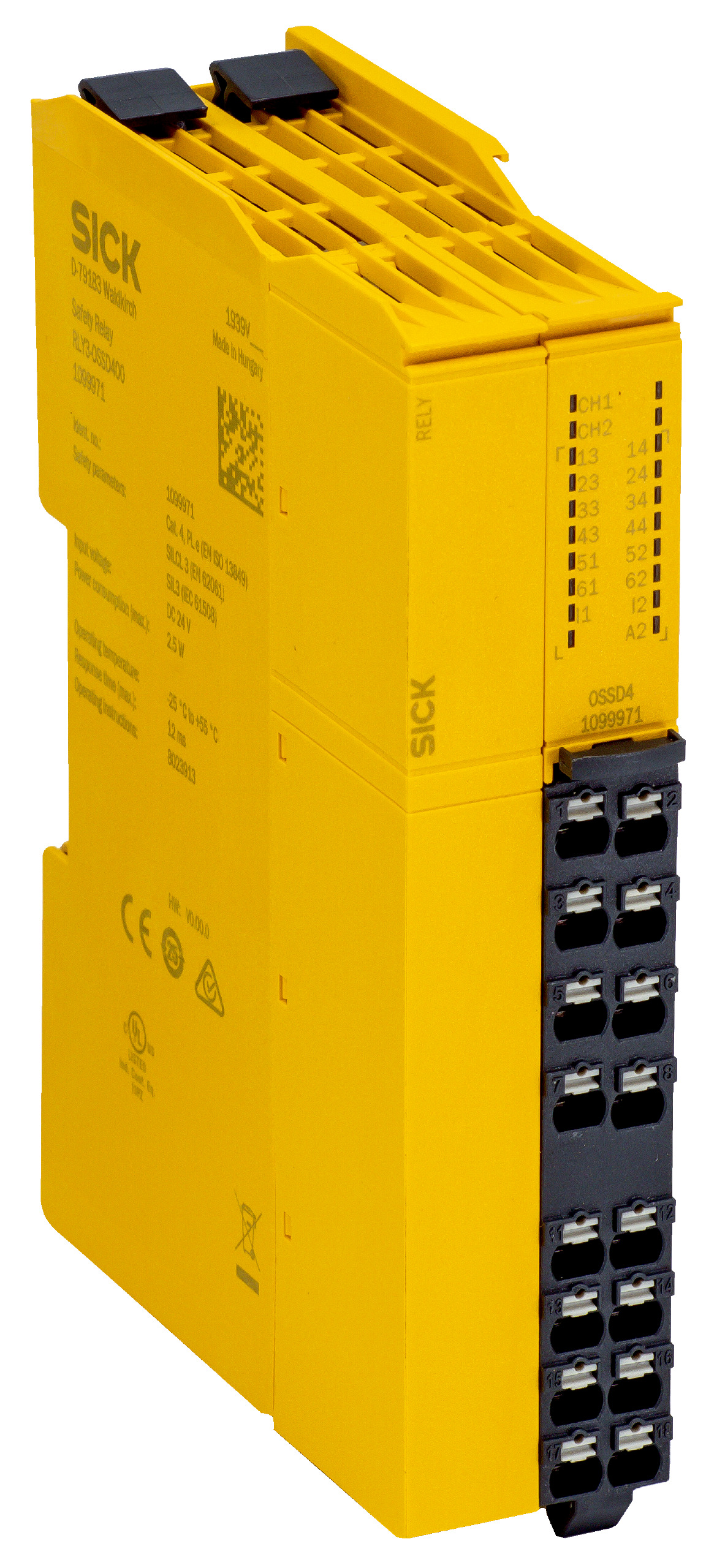

OSSD Output Expansion Module | SIL 3 Safety Level | 4 Enabling Current Paths | by SICK
The OSSD Output Expansion Module is designed for safety applications, featuring a SIL 3 safety integrity level and four enabling current paths. Ideal for industrial environments, it ensures reliable integration with safety sensors while providing a long mission time of 20 years, reducing waste and maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 125mm x 86mm x 28mm
- Weight: 0.18 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 1.0 x 10^-9
- Mission time (TM): 20 years (ISO 13849-1)
- Stop category 0 (IEC 60204-1)
- Path for external device monitoring (EDM)
- Front connector with spring terminals
- 2 safety inputs and 4 enabling current paths (safe)
- 1 feedback current path for external device monitoring (not safe)
- 1 signaling current path (not safe)
- LED display elements
- Passive voltage supply (no active voltage supply)
- Power consumption ≤ 2.5 W (DC)
- Response time for opening enabling current paths: 12 ms
- N/O contacts, positively guided with silver alloy, gold flashed contact material
- Switching voltage 10 V AC ... 230 V AC and 10 V DC ... 230 V DC
- Switching current 10 mA ... 6 A
- Mechanical life 10 million switching cycles
- Overvoltage category III (EN 60664-1)
- Rated impulse withstand voltage Uimp 6 kV (EN 60664-1)
- Enclosure rating IP20 (IEC 60529)
- Operating temperature -25 °C to +55 °C
- Storage temperature -25 °C to +70 °C
- Air humidity ≤ 95%, non-condensing
- Interference emission and resistance according to IEC standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration with safety sensors.
Applications
- Output expansion module for OSSDs
- Compatible with safety sensors with OSSDs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Passive voltage supply reduces energy consumption
- Long mission time of 20 years reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK RLY3-OSSD400 Output Expansion Module is available for immediate purchase. Ideal for industrial safety applications requiring expansion of safety sensor outputs.
