Electra Outdoor Data Cable Cat5e | UV Resistant | Direct Burial Rated | Solid Copper | @Pack by Electra Cables
Electra Outdoor Data Cable Cat5e is designed for reliable outdoor networking, featuring solid copper conductors and a UV resistant PE sheath. Ideal for direct burial installations, this 500m cable ensures optimal performance for CCTV, security systems, and long-distance Ethernet connections, making it perfect for industrial and commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electra Outdoor Data Cable Cat5e | UV Resistant | Direct Burial Rated | Solid Copper | @Pack by Electra Cables
Brand: Electra Cables
SKU: CAT5E-OD-500
Alternatively Known As: Outdoor Cat5e Cable, Cat5e Direct Burial Cable, Outdoor Ethernet Cable 500m, Cat5e PE Cable, Weatherproof Cat5e Cable
Technical Specifications
- Category: Cat5e (Category 5 Enhanced)

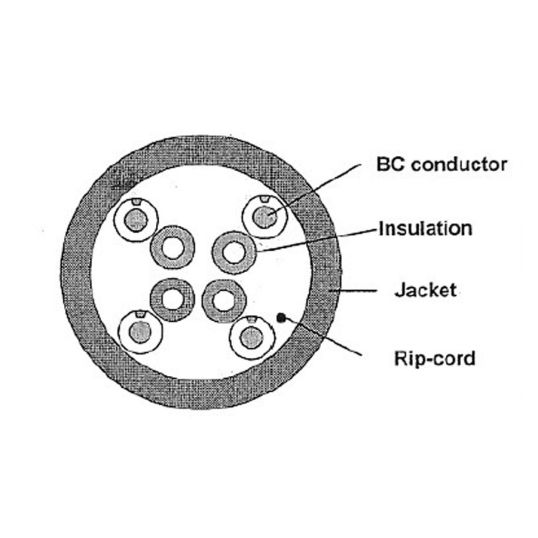

- Conductor: Solid bare copper
- Sheath: UV resistant PE (Polyethylene)
- Length: 500 metres
- Pairs: 4 twisted pairs
- Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801
- Suitable for: 10/100/1000Base-T Ethernet
- Operating temperature: -20°C to +60°C
- Direct burial rated
- Dimensions (H x L x W): 400mm x 300mm x 400mm
- Weight: 12.5 kg
Key Features
- High-quality Cat5e outdoor-rated data cable
- UV resistant and suitable for direct burial
- Solid copper conductors for reliable signal transmission
- PE (Polyethylene) sheath for enhanced weather protection
- Supplied in a 500m reel for large installations
Professional Installation Requirements
- Installation by a licensed cabler is required to ensure compliance with Australian standards and optimal performance.
Applications
- Outdoor networking installations
- Direct burial data cabling
- CCTV and security camera systems
- Industrial and commercial outdoor environments
- Long-distance Ethernet connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable PE sheath extends cable lifespan, reducing replacement frequency and waste.
- UV and weather resistance minimizes environmental impact from cable degradation.
Warranty Information
25-year manufacturer’s warranty against defects in materials and workmanship.
Available Now
The Electra Outdoor Data Cable Cat5e 500m is available for immediate purchase. Ideal for outdoor networking, CCTV, and industrial data cabling applications.
