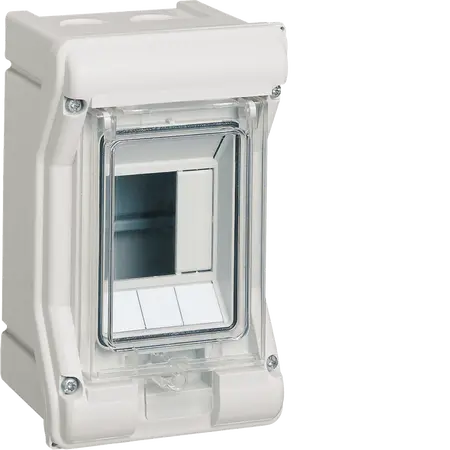

Outdoor Electrical Enclosure | IP65 Rated | UV-Stabilized | Knockouts by Hager

BRAND: :hager
SKU: VE103H
$48.90 List price: $62.50
+
Outdoor electrical enclosure with IP65 rating and UV-stabilized plastic—ideal for residential and commercial installations. Built for durability, with knockouts for flexible installation.

Product Name/Title: vector,IP65,3M,UV-stabil,DC/AC,with knockouts

Brand: Hager

SKU: VE103H

Alternatively Known As: Hager VE103H, Outdoor Electrical Enclosure, IP65 Enclosure

Technical Specifications
  • Nominal voltage: 400 - 400 V
  • Rated current: 63 A
  • Number of modules: 3
  • Material: Plastic, RAL code 7035
  • Impact resistance: IK07
  • Isolation class: II
  • Glow wire test: 850 °C
  • Dimensions (H x L x W): 175mm x 93mm x 111mm
  • Weight: 1.5 kg
Key Features
  • IP65 rated for protection against dust and water ingress.
  • UV-stabilized plastic for durability in outdoor conditions.
  • Includes 2 conduit inlets for flexible installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Outdoor electrical installations
  • Commercial: Industrial and commercial electrical systems
  • General: Any outdoor application requiring robust electrical enclosures
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, reducing hazardous substances in electrical equipment.
  • Designed to minimize carbon footprint through sustainable materials.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Vector IP65 Outdoor Enclosure is available now for immediate purchase. Ideal for outdoor electrical installations requiring robust protection.

VE103H (VE103H, 168 Kb) [Download]

reach_declaration_VE103H3.pdf (reach_declaration_VE103H3.pdf, 103 Kb) [Download]

rohs_declaration_VE103H3.pdf (rohs_declaration_VE103H3.pdf, 104 Kb) [Download]

6LE003107F.pdf (6LE003107F.pdf, 4,459 Kb) [Download]
