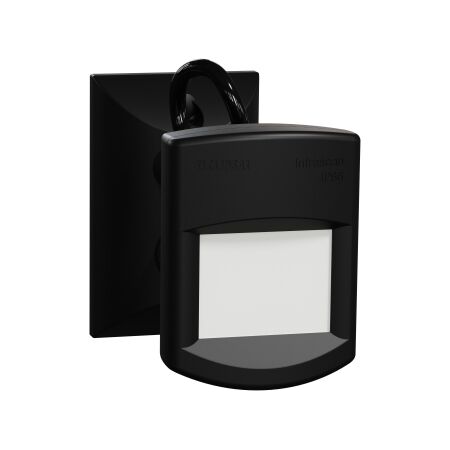

Outdoor PIR Motion Sensor | 3 Wire | IP66 Rated | Black by Clipsal
Outdoor PIR motion sensor with 3-wire connection and IP66 rating—ideal for homes, gardens, and commercial spaces. Built for reliable movement detection up to 18m, with adjustable sensitivity and lux levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor type: PIR
- Rated operational voltage: 200-265 V AC
- Rated current: 10 A
- Movement detection area: 18 m
- Device mounting: Surface
- Mounting height: 2.4 m
- Ambient air temperature for operation: 0-50 °C
- Network frequency: 50 Hz
- Dimensions (H x L x W): 162mm x 120mm x 80mm
- Weight: 0.316 kg
Key Features
- IP66 rated housing for outdoor use
- Detects movement up to 18m at 110 degrees
- Adjustable sensitivity, lux level, and time delay
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, gardens, driveways
- Commercial: Retail, parking lots, outdoor areas
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Motion Sensor - IP66 Outdoor Infrascan is available now for immediate purchase. Ideal for residential and commercial outdoor applications.
