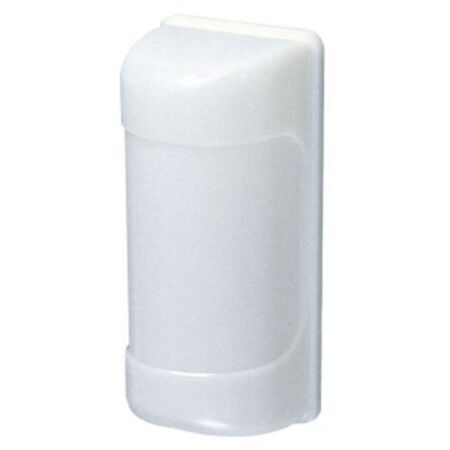

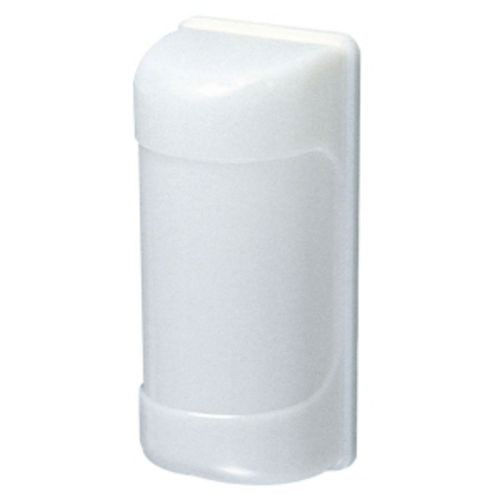

Outdoor PIR Sensor Multi-Pattern 12m to 20m Range Ness

BRAND: Ness
SKU: 106-200
$385.80 List price: $514.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness outdoor PIR sensor features multi-pattern detection, 12m to 20m range and adjustable sensitivity. Ideal for outdoor alarm systems.

Alternatively Known As: Takex MS-100E Outdoor Passive Infrared Sensor, Multi-Pattern Outdoor PIR, Outdoor Motion Detector

Technical Specifications
  • Model: Takex MS-100E
  • Detection Type: Passive infrared
  • Detection Patterns: Wide angle, horizontal curtain, vertical curtain and long range
  • Detection Range: Up to 20m long range; 12m lens options supplied by Ness
  • Supply Voltage: 10.5–28V DC, non-polarity operation
  • Current Consumption: 30mA or less
  • Sensitivity Adjustment: Approximately 30% to 170%
  • Alarm Output: Selectable normally open or normally closed dry-contact relay
  • Alarm Contact Rating: 30V AC/DC, 0.5A maximum resistive load
  • Tamper Output: Normally closed dry-contact relay, 30V AC/DC, 2A maximum resistive load
  • Operating Temperature: -20°C to +50°C
  • Mounting: Indoor or outdoor vertical installation at 0.8–1.5m; horizontal indoor installation up to 3m
  • Housing: White PE resin cover and AES resin body
  • Connection: Screw terminals
  • Dimensions (H x L x W): 171mm x 77mm x 70mm
  • Weight: 0.22 kg
Key Features
  • Multi-pattern detection from a single sensor housing
  • Supplied with wide-angle, vertical-curtain and long-range lens options
  • 180° rotatable sensor head for flexible positioning
  • Adjustable sensitivity and pulse response
  • Rain-resistant housing for outdoor and semi-outdoor applications
  • Selectable normally open or normally closed alarm output
  • Built-in tamper output and alarm LED
  • Suitable for connection to alarm panels, surveillance cameras and lighting controls
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security technician or electrician. The sensor requires low-voltage DC wiring, correct relay termination and walk testing after mounting. Intruder alarm installations should follow the applicable requirements of AS/NZS 2201.1:2007.
Applications
  • Outdoor residential alarm systems
  • Commercial building perimeter protection
  • Driveways, gardens and access paths
  • Outdoor lighting activation
  • CCTV or surveillance camera triggering
  • Door, gate and boundary monitoring
  • Indoor curtain or long-range detection applications
Standards & Compliance
  • AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating detection devices; product-specific Australian certification is not stated.
Environmental Benefits
  • Low current consumption of 30mA or less supports efficient low-voltage operation.
  • Can activate lighting or surveillance equipment only when movement is detected, helping reduce unnecessary energy use.
  • Durable weather-resistant construction can extend service life and reduce replacement waste.
  • The PE and AES resin housing materials are suitable for recycling through appropriate plastics recovery streams where local facilities accept them.
Warranty Information

Ness Corporation states a general 3-year warranty from date of purchase for Ness manufactured or supplied products. The Takex MS-100E datasheet separately states a 12-month limited warranty from the original shipment date; confirm the applicable warranty with the Australian seller at purchase.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors.
