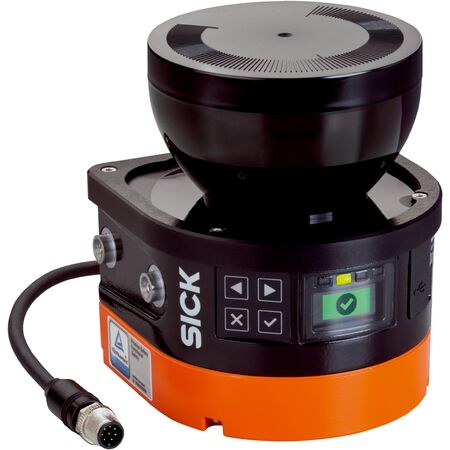

Outdoor Safety Laser Scanner | 275° Scanning Angle | IP65 Rated | SIL 2 Safety Level | by SICK
The Outdoor Safety Laser Scanner is designed for effective outdoor safety monitoring, featuring a 275° scanning angle and a protective field range of 4 m, with a warning field range of 40 m. Ideal for industrial automation and perimeter protection, this robust sensor ensures reliable performance in harsh environments, backed by a SIL 2 safety integrity level and IP65 enclosure rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical without output load
- Scanning angle: 275°
- Protective field range: 4 m
- Warning field range: 40 m
- Number of monitored fields: up to 4 simultaneously, 8 total
- Response time: 90 ms
- Angular resolution: 0.39°
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Connection: Male M12, 8 pin, A-coded connector
- Configuration interface: USB 2.0 Mini-USB
- Display: Graphic color display with LEDs
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 115mm x 115mm
- Weight: 1.15 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 total fields
- 275° scanning angle with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Integrated restart interlock, external device monitoring, and multiple sampling
- Graphic color display with LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -25 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Outdoor safety monitoring
- Industrial automation safety
- Perimeter protection and hazard detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 7 W supports energy efficiency
- Robust IP65 protection ensures long service life in harsh environments
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK MICS3-AAUZ40AZ1P01 outdoorScan3 Core I/O safety sensor is available for immediate purchase, ideal for outdoor industrial safety and automation applications.
