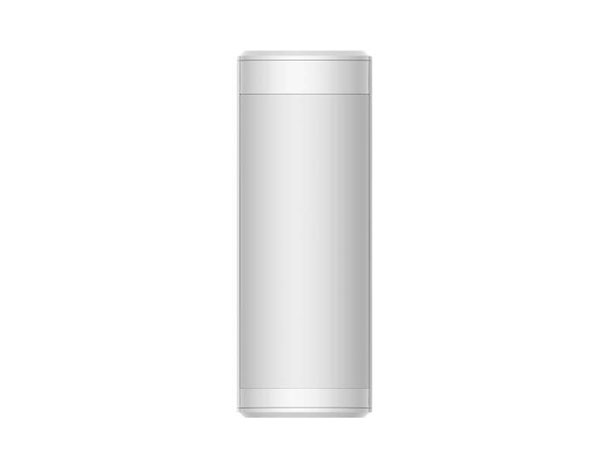

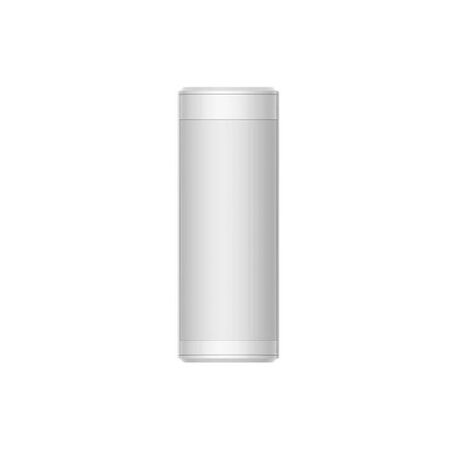

Outdoor Wired Tri-Tech Detector Hikvision
Hikvision outdoor tri-tech detector features tri-tech sensing and a wired connection. Ideal for Hikvision outdoor alarm installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Wired Triple Signal Detector, Outdoor Wired Tri-Tech Anti-Masking Detector, Hikvision DS-PDTT15AM-LM
Technical Specifications
- Detection Method: Passive infrared and microwave
- Detection Range: 15 m
- Detection Angle: 90° at 180° adjustable
- Detection Zones: 92
- Detection Speed: 0.3–2 m/s
- Microwave Frequency: 24 GHz, 24.15–24.25 GHz
- Pet Immunity: Up to 40 kg
- Power Supply: 9–16 V DC, 12 V DC typical
- Power Consumption: 30 mA standard; 220 mA maximum with lighting enabled
- Protection Rating: IP65
- Operating Temperature: -25°C to 60°C
- Operating Humidity: 10–90% RH
- Alarm Output: Normally closed
- Transmission Method: Wired
- Mounting Height: 0.8–1.2 m
- Mounting Method: Wall mounted
- Dimensions (H x L x W): 202mm x 73mm x 75mm
- Weight: 0.35 kg
Key Features
- Tri-signal logic using two PIR sensors and microwave detection
- 15 m outdoor detection coverage
- Adjustable 90° to 180° detection angle
- Active infrared anti-masking technology
- Automatic or low sensitivity selection
- Digital temperature compensation
- Anti-sway analytics to help reduce nuisance alarms
- Sealed optics with 10,000 lux white-light filtering
- Front and rear tamper protection
- Selectable EOL resistors for alarm and tamper wiring
- Pattern mask included for adaptable coverage
- LED status indication for PIR, microwave, masking and alarm conditions
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or alarm technician. The detector requires low-voltage DC wiring, alarm, tamper and EOL connections, and should be commissioned in accordance with the alarm panel manufacturer’s instructions and applicable Australian requirements.
Applications
- Outdoor intrusion detection
- Residential perimeter security
- Commercial building perimeter protection
- Driveway, pathway and garden surveillance zones
- Hikvision hardwired alarm installations
- Outdoor areas requiring pet-immunity and anti-masking detection
Standards & Compliance
- AS/NZS 2201.1:2007 – relevant to the design, installation, commissioning and maintenance of intruder alarm systems; compliance is system-level rather than a stated product certification.
Environmental Benefits
- IP65 weather-resistant construction supports longer service life in outdoor installations and can reduce premature replacement waste
- Low-voltage operation with approximately 30 mA standard consumption supports efficient alarm-system operation
- Durable sealed optics and temperature compensation help maintain reliable operation across changing outdoor conditions
Warranty Information
A 2-year manufacturer warranty is commonly specified for this model. Confirm warranty eligibility and terms with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security distributors.
