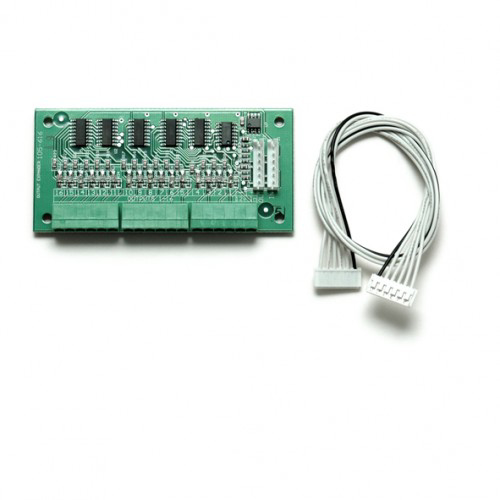

Output Expander 16 Outputs Programmable to Suit D8X/D16X Ness

BRAND: Ness
SKU: 106-011
$85.10 List price: $113.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness output expander features 16 additional programmable outputs. Ideal for expanding D8X and D16X alarm systems.

Alternatively Known As: Ness Output Expander, D8X Output Expander, D16X Output Expander, Programmable Open-Collector Output Module

Technical Specifications
  • Output Type: Programmable open-collector outputs
  • Number of Outputs: 16
  • System Compatibility: Ness D8X and D16X alarm panels
  • Maximum Expanders: Up to two output expanders per compatible panel
  • Connection: Panel AUX header
  • Supplied Accessories: Wire loom, box rails and removable terminal blocks
  • Product Code: 106-011
  • Dimensions (H x L x W): 100mm x 150mm x 200mm
  • Weight: 1 kg
Key Features
  • Adds 16 programmable outputs to compatible Ness D8X and D16X alarm systems
  • Supports programmable alarm, zone and system-output functions
  • Up to two expanders can be connected to a compatible panel
  • Open-collector outputs suit low-voltage switching and signalling applications
  • Includes wire loom, box rails and removable terminal blocks
  • Designed for integration with Ness X Series alarm control panels
Professional Installation Requirements
  • Installation and programming should be performed by a suitably qualified security technician or electrician. Connect to the compatible panel AUX header and configure the outputs in accordance with the Ness D8X/D16X installation manual and applicable wiring requirements.
Applications
  • Expanding programmable outputs on Ness D8X alarm panels
  • Expanding programmable outputs on Ness D16X alarm panels
  • Switching low-voltage security accessories and relays
  • Alarm, access-control, automation and signalling functions
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of intruder alarm systems at client premises
Environmental Benefits
  • Low-voltage electronic accessory designed to extend the service life and functionality of an existing alarm panel
  • Expandable architecture can reduce the need to replace a complete control panel when additional outputs are required
  • Ness publishes RoHS compliance documentation for its product range; product-specific declaration should be confirmed where required
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security-system distributors, subject to current product availability.
