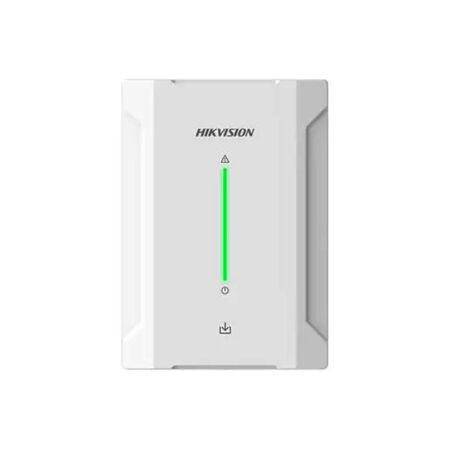

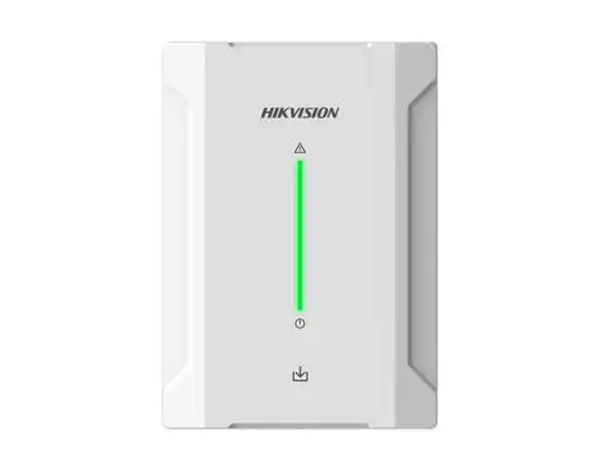

Output Expander 4 Relays High Hikvision

BRAND: Ness
SKU: 114-506
$113.40 List price: $151.30
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision output expander features 4 relays (high). Ideal for Hikvision alarm system installs.

Alternatively Known As: Hikvision Wired 4-Way Power Relay Expander, Speed-X 4-Relay Output Expander, AX Hybrid Pro Relay Module

Technical Specifications
  • Model: DS-PM1-O4H-H
  • Relay Outputs: 4 onboard power relays
  • Relay Rating: Up to 16 A per relay
  • Communication: Speed-X bus
  • Bus Connections: 1 uplink and 1 downlink for expander cascading
  • Power Supply: 9–24 V DC, 1 A
  • Maximum Current: 210 mA at 12 V DC
  • Quiescent Current: 65 mA at 12 V DC
  • Mains Switching Input: 100–240 V AC
  • Tamper Protection: Front and rear tamper support
  • Status Indicators: Power and fault LEDs
  • Enclosure Material: Plastic
  • Operating Temperature: −10 °C to +40 °C
  • Operating Humidity: 10–90% relative humidity
  • Security Grade: EN Grade 2
  • Dimensions (H x L x W): 155mm x 32.5mm x 110mm
  • Weight: 0.3331 kg
Key Features
  • Four independently controlled high-power relay outputs
  • Each relay supports loads up to 16 A
  • Designed for Hikvision AX Hybrid Pro alarm systems
  • Speed-X communication with uplink and downlink ports
  • Supports cascading with additional expanders
  • Front and rear tamper protection
  • Suitable for indoor wall or panel mounting
  • Power and fault status indication
Professional Installation Requirements
  • Installation must be performed by a suitably qualified security and electrical installer. The expander switches 100–240 V AC and must be wired, isolated and protected in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
  • Hikvision AX Hybrid Pro intrusion alarm installations
  • Switching high-current auxiliary equipment from an alarm control panel
  • Controlling lighting, access-control equipment, gates, locks and other powered devices
  • Commercial and residential security automation systems
Standards & Compliance
  • AS/NZS 3000:2018 — applicable to the selection, installation and verification of the electrical wiring and 100–240 V AC connection
Environmental Benefits
  • RoHS compliance indicated in the manufacturer's documentation, supporting restriction of hazardous substances
  • Relay-based control can enable scheduled or alarm-triggered switching of connected equipment, potentially reducing unnecessary operating time
  • Durable plastic enclosure and replaceable system-level design may extend service life and reduce electronic waste
  • Electronic components should be recycled through an approved e-waste collection service at end of life
Warranty Information

Hikvision warranty applies subject to the product-specific terms and authorised Australian distribution channel. Confirm the applicable warranty period with the supplying distributor before purchase.

Available Now

Available through Hikvision and authorised Australian security-system distributors.
