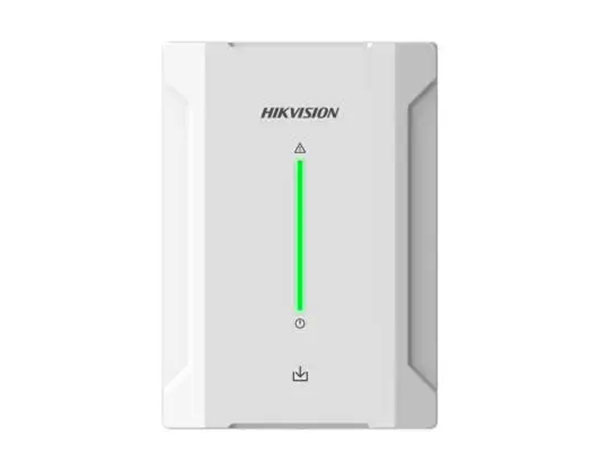

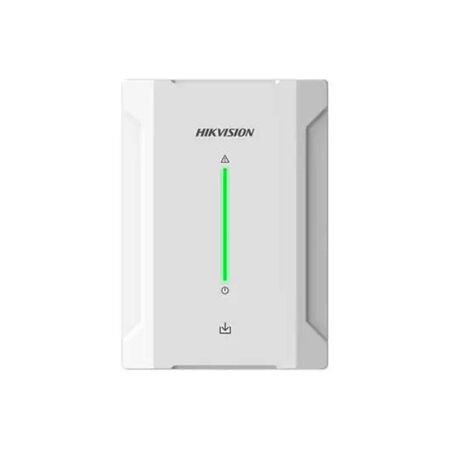

Output Expander 4 Relays Low Hikvision

BRAND: Ness
SKU: 114-505
$113.40 List price: $151.30
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision output expander features 4 relays (low). Ideal for Hikvision alarm system installs.

Alternatively Known As: Hikvision Speed-X 4-Way Low-Current Relay Expander, Wired 4-Relay Output Expander, Alarm Output Expander

Technical Specifications
  • Model: DS-PM1-O4L-H
  • Relay Outputs: 4 integrated low-current relays
  • Relay Switching Capacity: 6–30 VDC, up to 5 A
  • Bus Interface: 2 × Speed-X bus ports, uplink and downlink
  • Power Supply: 11–24 VDC, 1 A
  • Maximum Current Consumption: 153 mA at 12 VDC
  • Quiescent Current: 70 mA at 12 VDC
  • Power Output: Maximum 500 mA
  • Output Voltage: 9–12 VDC
  • Tamper Protection: Front and rear tamper support
  • Indicators: Power and fault LEDs
  • Housing Material: Plastic
  • Operating Temperature: -10 °C to 40 °C
  • Operating Humidity: 10% to 90% relative humidity, non-condensing
  • Dimensions (H x L x W): 155mm x 32.5mm x 110mm
  • Weight: 0.285 kg
Key Features
  • Four integrated low-current relay outputs
  • Supports 6–30 VDC switching and up to 5 A current per relay
  • Connects to compatible Hikvision AX Hybrid Pro alarm panels via Speed-X bus
  • Supports cascading to an additional expander through the downlink bus
  • Provides one auxiliary 9–12 VDC power output rated up to 500 mA
  • Front and rear tamper protection
  • DIP-switch address configuration for system integration
  • Power and fault status indication
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical installer. Connect only to compatible Hikvision alarm panels and low-voltage DC circuits, and complete wiring in accordance with the manufacturer's instructions and applicable Australian installation requirements.
Applications
  • Expanding relay outputs on Hikvision AX Hybrid Pro alarm systems
  • Controlling compatible low-voltage auxiliary equipment
  • Integrating access-control, automation, lighting or signalling devices with an alarm system
  • Commercial, residential and light-industrial security system installations
Standards & Compliance
  • Relevant system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems—Client's premises—Design, installation, commissioning and maintenance
  • Low-voltage electrical installation requirements may include AS/NZS 3000:2018, subject to the complete installation and circuit configuration
Environmental Benefits
  • Modular relay expansion can extend the capability of an existing alarm panel without replacing the complete control system, potentially reducing electronic waste.
